Specifications
Brand Name :
ASLI
Model Number :
UV-290
Certification :
CE , ISO , SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
25 workdays
Packaging Details :
standard export plywood case
Internal Dimension :
W1150xH500xD500mm
Volume :
290 Liters
Applicable Standard :
GB/T5170.9
Humidity Range :
≥95%R.H.
Test Light Source :
UVB UV light
Material :
Stainless steel
Description
GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber
Product Description

Model
UV-290
Internal Dimension WxHxD (mm)
1150x500x500
External Dimension WxHxD (mm)
1400x1600x750
Applicable Standard
GB/T16422,GB/T5170.9
Temperature Range
R.T.+15℃~+70℃
Temperature Fluctuation
±0.5℃
Humidity Range
≥95%R.H.
Environmental Temperature for Use
+5℃~+35℃
Test Light Source
UVA,UVB UV light
Wave Length of Test light Source (nm)
280~400
Center Distance between Sample and Tube (mm)
50±2
Center Distance Between Tubes (mm)
75±2
Material of Internal Case
Stainless steel with sanding polish
GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber
GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber Mechanical Structure

1) Internal & External Casing Material: SUS#304 Stainless Steel
2) Operating room with 10 UV lamps
3) Heating with inside water mode, heat up quick and with uniform temperature distribution.
4) The door with one-way open or two way which depends on the testing products dimension, easy for opening and closing.
5) Automatic water filling of the inside water wank.
6) Sample shelves made by draft spring or stainless steel which also depends on the size and shape of the testing products.
7) The bottom of the chamber adopts high quality fixable PU casters.
8) Drainage system use scroll and U type deposition drainage devices.
9) 50mm distance between sample surface and the lamps, and parallel or with 45°angle lilt , optional.

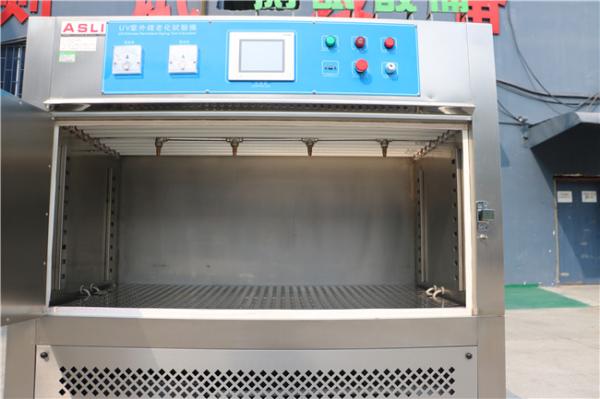

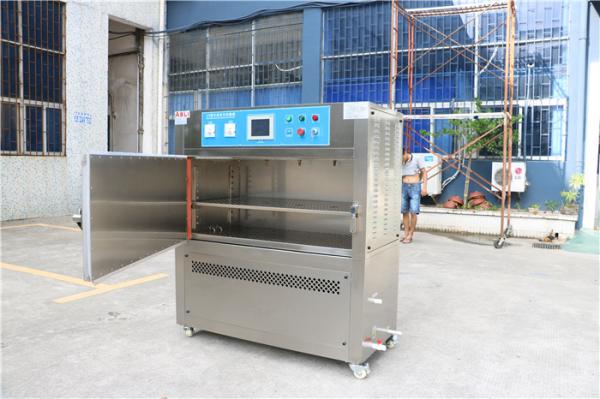

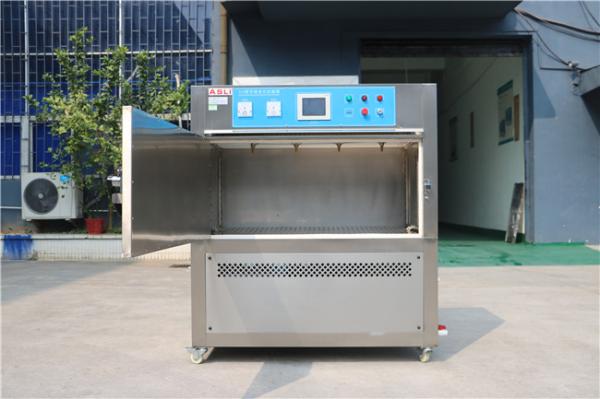

GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber Detailed Images
GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber
GB/T5170.9 ASTM Climatic UV Light Aging Environmental Test Chamber
