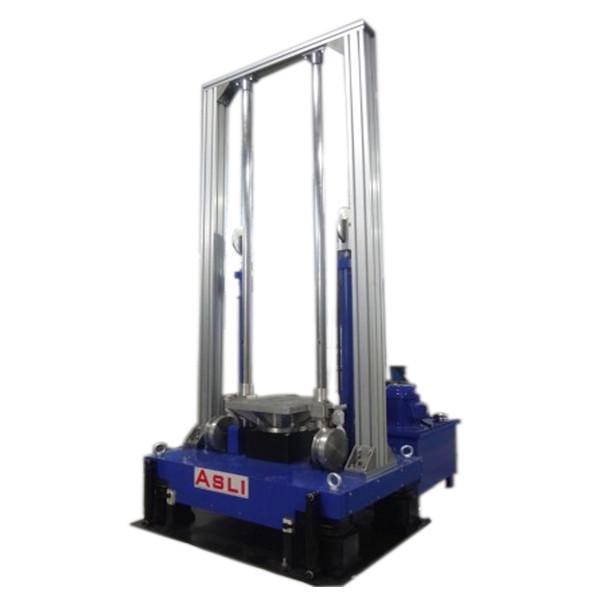

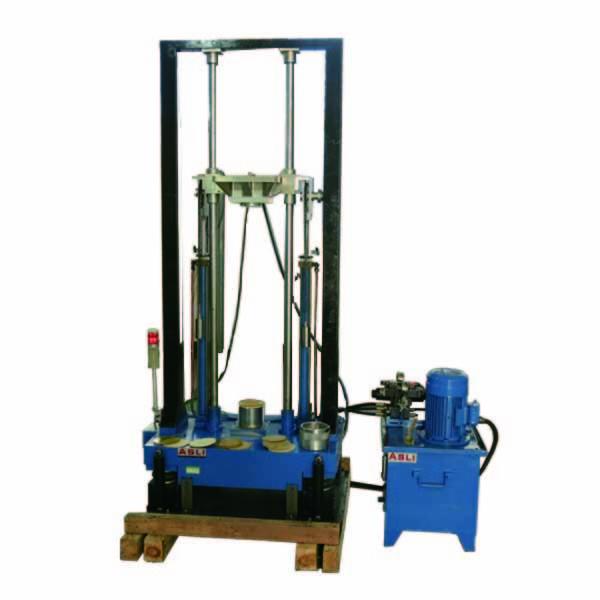

Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Specifications
Brand Name :
ASLi
Model Number :
SS-10
Certification :
CE, ISO
Place of Origin :
Guangdong,China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 set / month
Delivery Time :
45-50 work days
Packaging Details :
export standard plywood case
Type: :
Impact Testing Machine
Maxcapacity: :
<1000KN
Accuracy Grade :
0.5
Load Way: :
Mechanical Load
Loading Method: :
Dynamic Load
Dynamic Load :
Dynamic Load
Control: :
Computer Control
Weight: :
100-500Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Model :
Ss-10
Load Capacity (Kg) :
10
Table Size (Mm): :
200*200
Drive Mode :
Mechanical Drive
External Dimension Wxhxd (Mm) :
800*2200*900
Hydraulic Oil: :
No #46 Hydraulic Oil
Weight (Kg): :
700
Description
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281 Application:

Acceleration Mechanical Shock Tester is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281 features:

1. Built-in self-protection device, no secondary impact.
2. Shock height controlled by digital.
3. Good repeatability test data.
4. Signal generator provides a variety of choice: Half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5. Good vibration isolation performance, impact on the environment can control within the scope of the requirements.
6. Good Safety performance.
7. Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;

Short introduction about ASLi factory:

We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine. Mechanical Acceleration Shock Test system is our star products, and we had obtained the CE certification for this machine.

After-sale service:
Feedback within 2 hours, and offer solution in 4 hours and help to solve the problems.

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281
Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281

Mechanical Shock Test Equipment Shock Test Machine For Li-ion Battery Modules Test with UN38.3 and IEC62281 parameters:

Model SS-5 SS-10 SS-25 SS-50 SS-100 SS-200 SS-400
Load Capacity (Kg) 5 10 25 50 100 200 400
Table Size (mm) 120x120 200x200 350x350 450x450 650x650 750x750 850x850
Pulse Acceleration (m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 150~6000 150~3500 150~1500
Trapezoid Wave 300~1000 300~1000 300~1000 300~1000 300~1000 300~1000 300~500
Sawtooth Wave 150~1000 150~1000 150~1000 150~1000 150~1000 150~1000 150~500
Pulse width Half Sine Wave 0.5~18 0.6~18 0.8~25 1.5~30 1.5~30 2~30 6~30
Trapezoid Wave 6~12 6~12 6~18 6~12 6~12 6~12 6~12
Sawtooth Wave 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Drive Mode Mechanical drive Hydraulic drive
External Dimension WxHxD (mm)

800x2200

x900

800x2200

x900

850x2250

x950

1000x2600

x1300

1100x2700

x1400

1300x2700

x1600

1300x2700

x1650
Weight (Kg) 600 700 900 2600 3300 4000 4500
Hydraulic Oil No #46 hydraulic oil
Power

AC 380V 50/60HZ
