Specifications
Brand Name :
ASLI
Model Number :
SOV-4030
Certification :
CE , ISO , SGS , TUV , BV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
900 sets per year
Delivery Time :
30 workdays
Packaging Details :
standard export plywood case
X*Y*Z Stroke :
400x300x150mm
Optional :
UK Probe
Bench Dimensions :
600x450mm
Zoom Multiple :
30x-225x
CCD :
Color, 1/3 inch
Max. sample weight :
30Kg
Description

3D CNC 30x-225x Optical Video Measurement System

Product Description

3D CNC 30x-225x Optical Video Measurement System is designed to do three-dimensional work piece on the slope, round, ditch,columns ,ball, dimension, bland holes as well as the geometrical terms such as the distance between the elements and angles. And it is widely used in machinery,electronics, mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and so on and other industries

3D CNC 30x-225x Optical Video Measurement System Technical Parameters
Model SOV-4030 SOV-3020 SOV-2010
Dimensions, WxHxD (mm) 860x650x1120 700x500x900 570x370x790
Zoom Multiple (17 inch screen) 20x-120x, 30x-225x
CCD Color, 1/3 inch,8000000 PX
X*Y*Z Stroke (mm) 400x300x150 300x200x150 200x100x100
Bench Dimensions(mm) 600x450 500x350 350x270
Load of Bench(Kg) 30 25 30
Optional Configuration UK Probe
Weight (Kg) 350 180 100


Video Measurement System Features:


1. With RS-232 communication, it can be connected with computer, adopt specialized measuring software 2D,can manage & output the graphics.
2. Optional print machine, different measurement and scanning system are available
3. Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function
4. Flexible harmonious translation of X,Y,Z axles make the measurement more convenient and efficient.

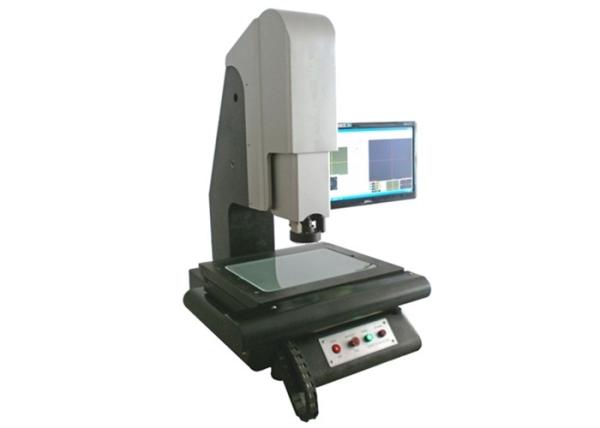

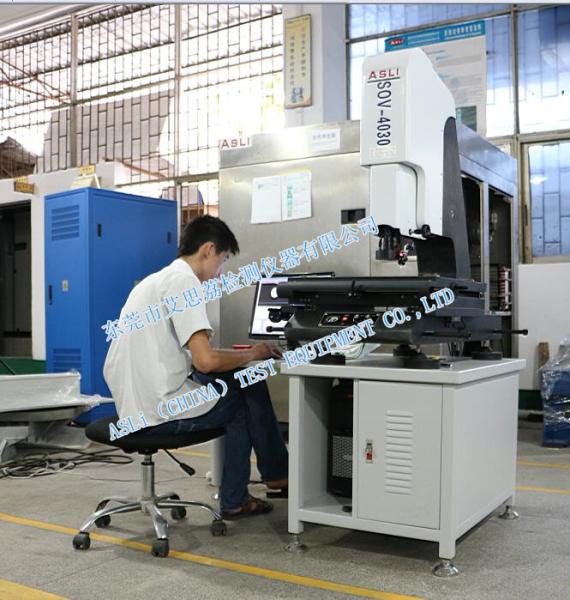

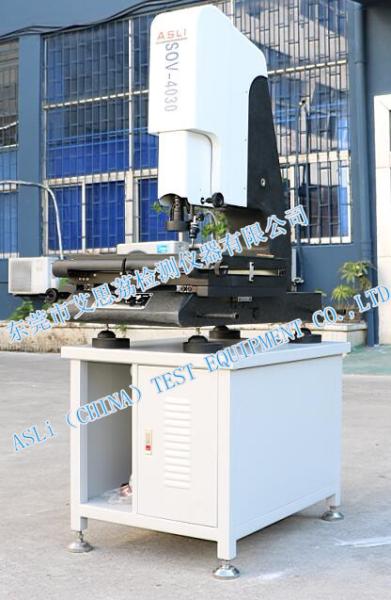

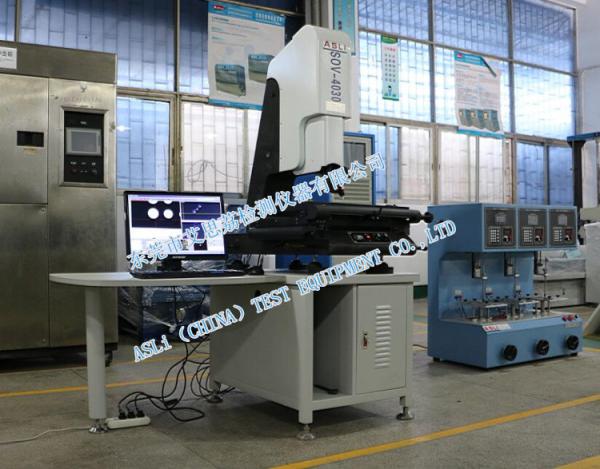

3D CNC 30x-225x Optical Video Measurement System Pictures:

3D CNC 30x-225x Optical Video Measurement System Video Measuring Machine
