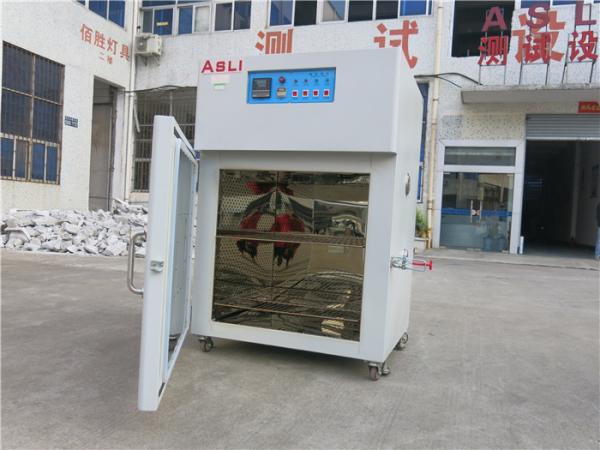

High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
Specifications
Brand Name :
ASLI
Model Number :
RHD-90
Certification :
CE, SGS, BV , TUV
Place of Origin :
China
MOQ :
1
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
15 workdays
Packaging Details :
wooden case
Internal Dimension :
W600*H900*D500mm
Volume :
270 L
Max. Temperature :
300 C
Heating Rate :
4℃/min
Control Accuracy :
+/-0.5 C
Application :
LED Light
Description
High Temperature Laboratory Electric Drying Oven Price for LED Light
Product Description

This High Temperature Laboratory Electric Drying Oven is designed and manufactured accord to the requirements of IEC 60884, IEC60598 and relevant standards. It is use to simulate a high temperature environment to test the ability of material to withstand thermo-mechanical stress. This machine can be wide used in many industries such as Electrical Appliances, Electrical wire accessories, luminaries, motors, connectors, etc.

This machine has the advantages of easy operate, fast heating, high precision, temperature be even and stable.

Parameter

Name
High Temperature Laboratory Electric Drying Oven
Model
RHD - 60
RHD - 90
RHD - 120
Internal Dimension W×H×D(mm )
500×600×500
600×900×500
800×1200×700
External Dimension W×H×D(mm )
700×1200×650
850× 1600×700
1200× 1680×900
Interior and Exterior Material
Interior material is SUS 304# stainless steel, exterior is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range
(R.T.+15C) to 200; (300 to 500℃ is optional)
Control Accuracy of Temperature
±0.5℃;
Temperature Rising Velocity
Temperature rising velocity: from R.T. to 200℃,needs approx. 35mins
Control Method
Micro PID+SSR+Timer
Storage Shelf
Two layers
High Temperature Laboratory Electric Drying Oven For LED Light

Characteristics

1.The inner side of test chamber is welded by uniformity stainless steel argon arc.The chamber body is made of high quality steel plate with beautiful and novel appearance.

2.This chamber is used high temperature deviation protection,digital display microcomputer and PID control technology to ensure the high precision of control temperature.


3.In order to improve the uniformity of the inner studio,the hot air circulation system is composed by air blower and appropriate air duct.The air blower can work in high temperature conditions.

4.The new kind synthetic silicon is used in this chamber,it helps to ensure long-term operation at high temperature, prolong service life and replace conveniently.

5.Control panel display helps to adjust/regulate the air inlet and exhaust quantity.

6.If the actual temperature exceed limited temperature ,the independent Limit temperature alarm system will interrupt automatically to ensure the safety operation and no accidents of thest .(Selection)


7.In order to record the temperature changable parameters, this chamber can be matched with a printer or a RS485 interface to connect a printer or computer.(Selection)

Detailed Images
High Temperature Laboratory Electric Drying Oven For LED Light
High Temperature Laboratory Electric Drying Oven For LED Light
