Specifications
Brand Name :
ASLI
Model Number :
VAT-45
Certification :
CE
Place of Origin :
CHINA
MOQ :
1set
Price :
TBC
Payment Terms :
T/T
Supply Ability :
50SET/MONTH
Delivery Time :
Within 20 working day
Packaging Details :
wooden case packing
Guarantee :
1 year
Size :
customizable
Temperature Range :
RT~200degree(optional 300degree)
Description

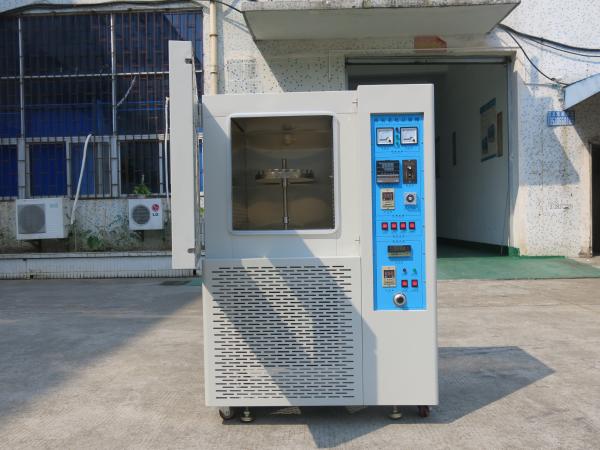

Ventilation Aging Tester Convection and Ventilation Aging Oven

Ventilation Aging Tester Convection And Ventilation Aging Oven Environmental Test Systems

Ventilation Aging Tester Convection and Ventilation Aging Oven Technical Parameters:

Model SAT-45 SAT-60 SAT-75
Internal Dimension
W×H×D (mm)		 450×500×450 500×600×500 600×750×600
External Dimension
W×H×D (mm)		 1000×1000×700 1150×1200×850 1350×1500×1000
Internal & External Material Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range RT+10ºC~200ºC (300ºC)
Uniformity of Distribution ±2.0ºC
Air Ventilation Rate 0-200 times/hr adjustable, with an ventilative adjustment button, Watt/Hour
Speed of Test Frame
( RPM)		 5-10
Power AC220V



Ventilation Aging Tester Convection and Ventilation Aging Oven Application:

Ventilator-Aging Test Chamber is used to test the material heat-resistance of polymer materials (plastics, plastic) and electronic parts, electrical insulation materials, such as: wire and cable sheathing, heat-shrinkable tubing, rubber or PVC materials.

Ventilation Aging Tester Convection and Ventilation Aging Oven Features:

1. Easy to operation and the box using CNC machining, elegant design, innovative and adopt counterproductive handle.
2. Internal material is high imported SUS304 mirror Stainless steel or 304B TIG, outside is A3 Steel spray, it improves the texture and appearance of cleanliness.
3. You can visually observe through huge Tempered glass windows with lights anytime and clearly.
4. Good uniformity of temperature
5.With D.50mm test holes on the left side for external test power line or signal line.

Ventilation Conversion Formula:

N=3590(X-Y)x2/VD△t
N: Ventilators;
V: Capacity of Case ;
X: Power consumed when open the air valve
Y: Power consumed when closed
△t: Temperature difference between working and environmental
Constant: 3590

Ventilation Aging Tester Convection And Ventilation Aging Oven Environmental Test Systems

Ventilation Aging Tester Convection and Ventilation Aging Oven Packing

Ventilation Aging Tester Convection And Ventilation Aging Oven Environmental Test Systems

Aside from Ventilation Aging Tester Convection and Ventilation Aging Oven, There are More Test Machines:

Ventilation Aging Tester Convection And Ventilation Aging Oven Environmental Test Systems

contact

Ms.Louise Lu | Sales Executive-Export

T: 0086-769-23164266 CELL: 0086-13602387384 (What's APP/Wechat same)

M: sales3(at) aslitesting.com Skype: asli168

ASLI Equipment for: (Temperature, Temperature shock, Mechanical,Vibration/Shock, Rain/sand/UV, Salt Fog) Testing etc.
