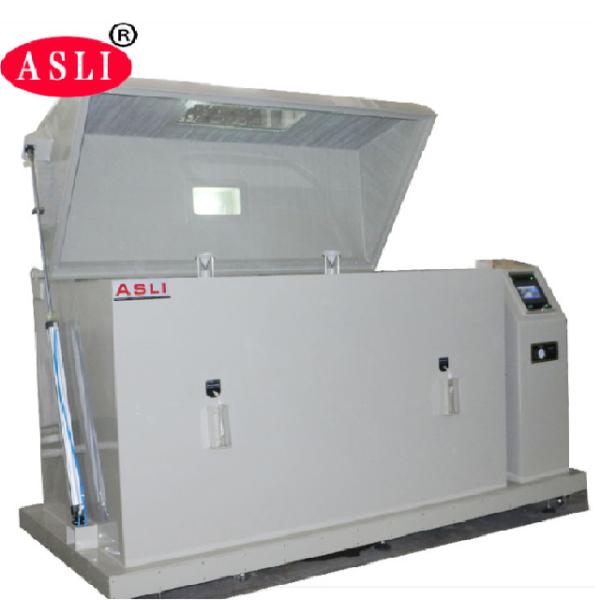

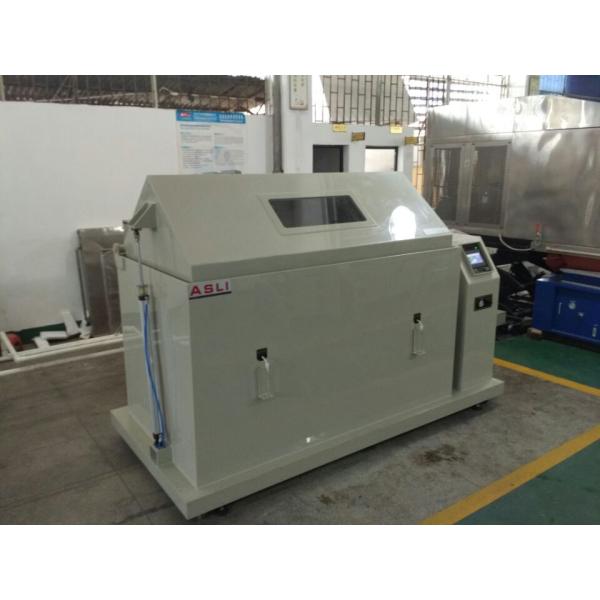

Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing
Specifications
Brand Name :
ASLI
Model Number :
THS-900
Certification :
CE TUV SGS BV
Place of Origin :
China
MOQ :
1units
Price :
Negotiation
Payment Terms :
D/A, D/P, T/T
Supply Ability :
10sets /months
Packaging Details :
Standard wood case for export
Drying temp. range :
Ambient to +75 deg C
Humidity temp. range :
Ambient to +60 deg C
Humidity range :
15% to 95% R.H adjustable
Accuracy :
Temperature 0.1 Deg C;Humidity 0.1 %
Control Accuracy :
Temperature ±0.5 Deg C; Humidity ± 2.5%R.H.
Uniformity :
Temperature: ± 3.5 Deg C
Description

Temperature Humidity Combined Environmental Test Systems for corrosion testing

Accessories with Temperature Humidity Combined Salt spray test chamber :
sample Shelf/sample stick 4 pcs each
1 pc brine mixing barrel; 1 pc standard measuring cup; HP test paper
3.1 pc dry bulb cup
4.1 pc 80cm2 collector
1 pc glass spray nozzle
1 pc Wet bulb cup
1 set fog dispersal system
1 pc meter regulator
reagent Nacl 2 bottles (500 g/bottle)
1 pc Air compressor ( Optional )

Technical sheets with salt spray test chamber :

Model THSH-2000-B
Internal Dimension 2000×1000×1000(W×D×H) mm
External Dimension 3000×1500×1950(W×D×H)mm
Cabinet capacity 2000L
Controlled parameters Temperature , relative humidity, Salt fog
Drying temp. range Ambient to +75 deg C
Humidity temp. range Ambient to +60 deg C

Humidity range

(with dehumidify device)

15% to 95% R.H adjustable(Temp.60deg C ~ 75deg C)

60% to 95% R.H adjustable(Temp.30deg C ~ 75deg C)
Salt fog fallout rates rates adjustable from 0.5 to 2.5ml per 80cm2 per hour
Chamber material P.V.C rigid plastic boar
Spraying method Continuous and Programmable spray type
Temperature Rising/Falling Speed Rate:

From R.T.( 25 Deg C) ~ 75 Deg C, needs about 30 mins, ( approx. 2.0 Deg C /min)

From 70 Deg C ~ 30 Deg C, needs about 40 mins, ( approx. 1.0 Deg C /min)
Accuracy

Temperature 0.1 Deg C ; Humidity 0.1 %;
Control Accuracy

Temperature ±0.5 Deg C; Humidity ± 2.5%R.H.
Uniformity

Temperature: ± 3.5 Deg C

Humidity ±3.0% R.H(when humidity is 75%～98%);

　　　 ±4.0% R.H(when the humidity is 30%～75%);

Multiple Safety Protection Devices

Current discharge protection, over pressure protection, over

temperature protection, over load fuse protection

Salt Spray Temperature (Able to set constant temperature control)
(A)Saline Test : NSS,ACSS
1. Testing Chamber : 35 Deg C (+/-)2 Deg C
2. Saturated Air Bucket: 47 Deg C (+/-)2 Deg C
(B) Corrosion Test: CASS
1. Testing Chamber Temperature: 50 Deg C (+/-) 2 Deg C
2. Saturated Air Bucket: 63 Deg C (+/-)2 Deg C

Spray Method of salt spray testing equipment


Absorb brine to atomization, uniform atomization degree, to ensure continuous testing standard.
Precise Glass Spray Nozzle: made of special glass,able to adjust spray volume and spray angle, ensure without salt crystal blocking working withing 5000 hours and fog uniformly.
Fog Spray quantity: adjustable type 1-2ml(ml/80cm2/h) (average quantity of 16 hours)

Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing

Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing

Temperature Humidity Combined Salt Spray Test Chamber For Corrosion Testing

If you have any question about those Temperature Humidity Combined Salt spray test chamber, please feel free to contact with us, thank you .
