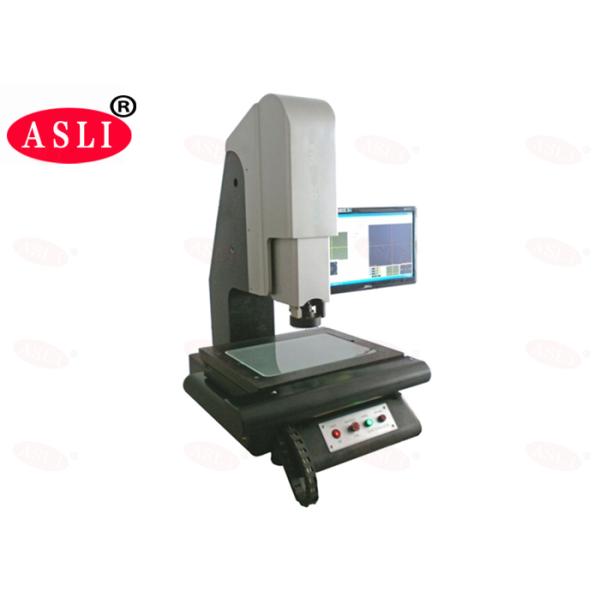

High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
High Accuracy And Reliability Computerised 3D Video Measuring System
Specifications
Brand Name :
ASLI
Model Number :
SOV-4030
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
TBC
Payment Terms :
T/T
Supply Ability :
50set/month
Delivery Time :
25days
Packaging Details :
wooden case box
Dimension: :
860x650x1120
Zoom Multiple :
20x-120x, 30x-225x
CCD :
1/3" High Resolution CCD Camera
Bench Dimension :
600x450
Bench load weight :
30kg
Description

High Accuracy and Reliability Computerised 3D Video Measuring System Price

Application:

High Accuracy And Reliability Computerised 3D Video Measuring System is designed to do three-dimensional work piece on the slope, round, ditch,columns ,ball, dimension, bland holes as well as the geometrical terms such as the distance between the elements and angles. And it is widely used in machinery,electronics, mobile fittings, home appliances, connector, machine fittings, precision fixture, plastic, hardware, circumjacent fields of computer and so on and other industries.

High Accuracy And Reliability Computerised 3D Video Measuring System

Technical Parameter:

Model SOV-4030 SOV-3020 SOV-2010
Dimensions, WxHxD (mm) 860x650x1120 700x500x900 570x370x790
Zoom Multiple (17 inch screen) 20x-120x, 30x-225x
CCD Color, 1/3 inch,8000000 PX
X*Y*Z Stroke (mm) 400x300x150 300x20x150 200x100x100
Bench Dimensions(mm) 600x450 500x350 350x270
Load of Bench(Kg) 30 25 30
Optional Configuration UK Probe
Weight (Kg) 350 180 100

High Accuracy And Reliability Computerised 3D Video Measuring System Price Features:

  • Highly precise metal base and column
  • Superior measurement accuracy and repeatability for tight tolerance application
  • Automatic video edge detection
  • High resolution parafocal zoom lens.
  • Flat Field high resolution optics for sharp uniform images
  • Unmatched illumination flexibility for difficult measurements
  • Powerful, flexible software for programmability
  • Advanced mechanical design resulting in high speed & accuracy
  • Manual operation with quick-moving stage
  • With RS-232 communication, it can be connected with computer, adopt specialized measuring software 2D,can manage & output the graphics.
  • Optional print machine, different measurement and scanning system are available
  • Can measure point, line, circle, arc, oval, rectangular and improve the accuracy with the multipoint positioning function.
  • Flexible harmonious translation of X,Y,Z axles make the measurement more convenient and efficient.

For more products pls feel free to contact us!
