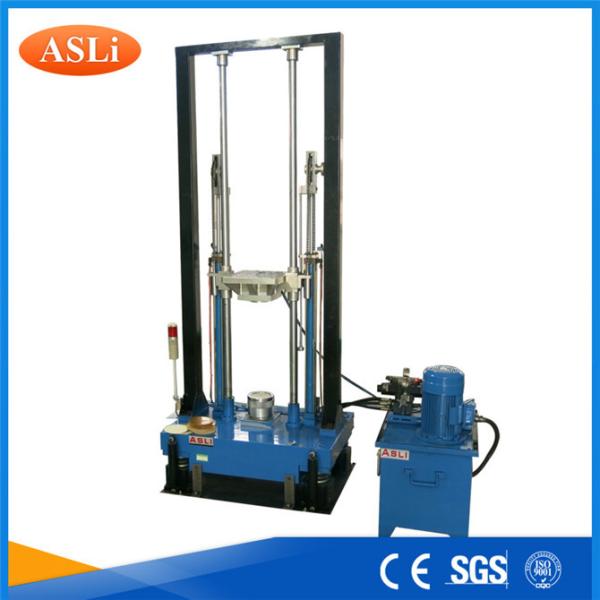

MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing
Specifications
Brand Name :
ASLI
Model Number :
SS-10
Certification :
CE TUV SGS ISO
Place of Origin :
China
MOQ :
1set
Price :
Negotiated payment
Payment Terms :
L/C, Western Union, MoneyGram, T/T
Supply Ability :
500SET
Delivery Time :
20Working days after all confirmed
Packaging Details :
Standard import wood case
Max. Loading (kg) :
50kg
Peek Value Acceleration ( m/s2) :
150~15000
Pulse Time (ms) :
0.5-18
Bench Size (mm) :
350*350
Impact and Crush Wave :
Half Sine wave
Power :
AC 380V
Description

MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing


Mechnical shock test machine for testing SMD components and Leaded components is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.



Features of mechanical testing equipment:
1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.

Technical Parameters about 30ms Pneumatic mechanical testing equipment price:

Model SS-5 SS-10 SS-25 SS-50 SS-100 SS-200 SS-400
Load Capacity (Kg) 5 10 25 50 100 200 400
Table Size (mm) 120x120 200x200 350x350 450x450 650x650 750x750 850x850
Pulse Acceleration (m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 150~6000 150~3500 150~1500
Trapezoid Wave 300~1000 300~1000 300~1000 300~1000 300~1000 300~1000 300~500
Sawtooth Wave 150~1000 150~1000 150~1000 150~1000 150~1000 150~1000 150~500
Pulse width Half Sine Wave 0.5~18 0.6~18 0.8~25 1.5~30 1.5~30 2~30 6~30
Trapezoid Wave 6~12 6~12 6~18 6~12 6~12 6~12 6~12
Sawtooth Wave 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Drive Mode Mechanical drive Hydraulic drive
External Dimension WxHxD (mm)

800x
2200x900

800x
2200x900

850x
2250x950

1000x
2600x1300

1100x
2700x1400

1300x
2700x1600

1300x
2700x1650
Weight (Kg) 600 700 900 2600 3300 4000 4500
Hydraulic Oil No #46 hydraulic oil
Power AC 380V 50/60HZ

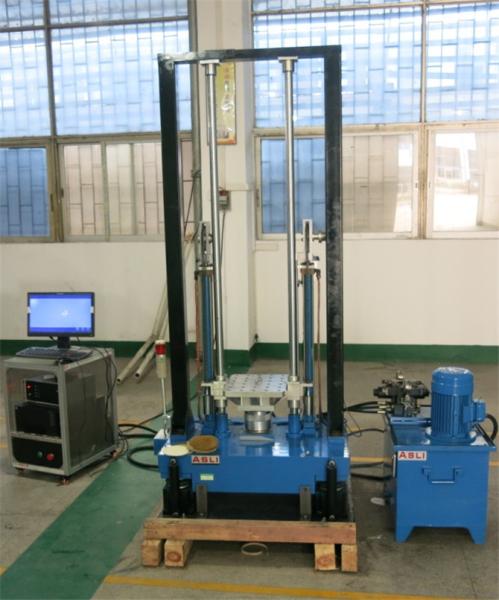

Impact test machine is used for shock test machine series.Which adopted USB2.0 connect and communication with PC to transfer control instruction for measurement data , based on Windows operating system combined with a measurement system to realize automatic test. With the following functions: To control gas flow rate, gas pressure ; (Big model and high technical parameters required) To control pneumatic valve reversing and on-off ; (Big model and high technical parameters
required) To Measure lifting height

MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing

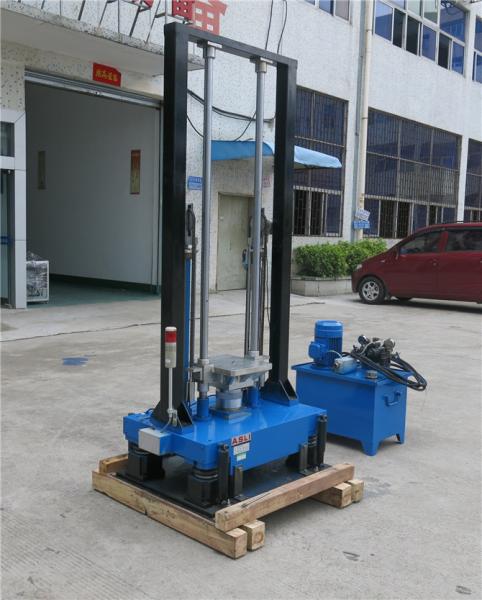

Package about impact tester:

PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing

Our Services

Warranty: one year free warranty for whole set machine,lifelong time maintainance.
Service:OEM service,Design service,Buyer lable service.
After-sale service: feedback within 2 hours after get the call.


Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.HAST Un-Saturated Steam Chamber is our star products, and we had obtained the CE certification for this machine.

MIL - STD -810G Standard Mechanical Shock Test Machine For Acclerated Mechanical Shock Testing


Welcome our new and regular customers visit our factory for mechanical shock testing machine For Electronic Products Impact Testing, and any inquiries please feel free to contact us !
