Specifications
Brand Name :
ASLi
Model Number :
RT-1000A
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
45 sets per month
Delivery Time :
20~25 workdays
Packaging Details :
standard export poly wood case packaging
Inner Size :
1000 *1000*1000mm
External Size :
1650*1950x1450mm
JIS Test :
1.8L~3.9L/min
Drop Test :
IPX1-IPX2
Rain of Pipe- Swing Test :
IPX3-IPX4
Water Spray :
IPX5-IPX6
High Pressure Jet Test :
IPX9K
Description

IEC60529 Turntable Watch Waterproof Rain Water Test Chamber Rain Proof Test

Application +rain spray +tester:

Applied to test the shell’s waterproof effect of electronics, automobile and communication,using rainfall simulation to test the product’s waterproof performance and assess the product’s waterproof performance’s loss classification.

Technical parameters about rain test chamber:

Model

RT-1000A

RT-1000B

Test Standard

JIS, ISO, IEC60529, DIN40050, GB2423, GB4208 standard

Internal Dimension WxHxD (mm)

1000x1000x1000

External Dimension WxHxD (mm)

1600x1900x1400

JIS Test

Flow:1.8L/Min~3.9L/Min

Flow:24.5L/Min~39.2L/Min

pressure:0.1kgf/cm2~0.3 kgf/cm2

pressure: 1kgf/cm2~3 kgf/cm2

Drop Test

1~1.5mm/Min Adjustable

IPx1 IPx2 drop speed:

1~1.5mm/Min adjustable

3~3.5mm/Min Adjustable

drop speed:3~3.5mm/Min adjustable

Rain of Pipe-Swing Test

IPx3 IPx4 swing pipe: RT~±80°C

Flow:0.07L/min per Nozzle

Water Spray Test

IPx3 IPx4 jet:2.5m~3m

flow :12.5L/min ~100L/Min

High Pressure Jet Test

80Kgf~100Kgf

IPx9K pressure of jet:80Kgf~100Kgf

Flow:14~16L/Min

Rotating Speed of Rotating-Plate

4~20 RPM adjustable

Feature for IP grade +chamber:

1. Water pressure and flow rate adjustable.

2. Unique sprinkler can stably control the rain quantity and pressure.

3. This equipment (Model B) can make the test products’ temperature rising from RT-85°C

4. Inner case’s material is imported steel plates, Shell is made of #304 stainless steel.

5. This equipment applies rain spray test for products and parts.

IEC60529 Turntable Watch Waterproof Rain Water Test Chamber Rain Proof Test

Protection grade:

1.IPX1, IPX2 test

IPX1, X2 Negative pressure to absorb design

Unique nozzle, not easy to block

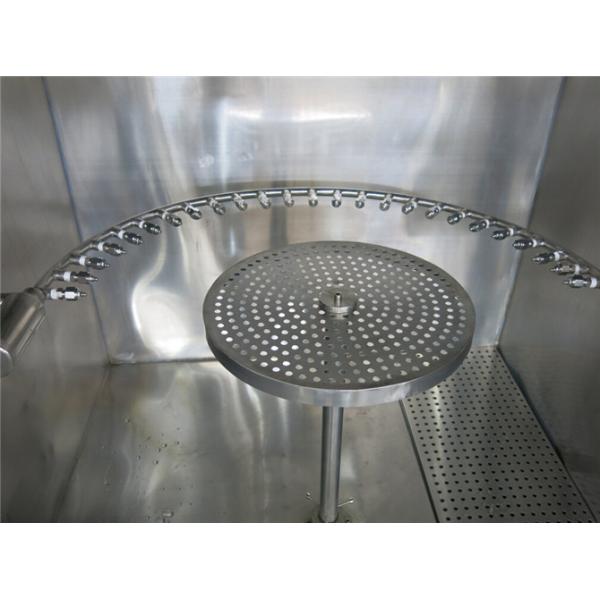

2.IPX3, IPX4 test

Pipe swing-type designed with gear motor, angle and speed adjustable.

Nozzle Angle aiming at the circle center

3.IPX5, IPX6 test

IPX5, IPX6 titanium alloy Nozzle

Water column non-proliferation

4.IPX9K test

IPX9K imported pump, high temperature & high pressure resistant

Standard titanium alloy Nozzle

Homogeneous distribution of pressure

IEC60529 Turntable Watch Waterproof Rain Water Test Chamber Rain Proof Test

If you have any question about those rain spray tester , please contact with us, thankyou .
