Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing
Specifications
Brand Name :
ASLI
Model Number :
SS-10
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 set
Price :
negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
400 sets per year
Delivery Time :
55 workdays
Packaging Details :
wooden case
Max. Load :
10 Kg
Control method :
PC
Work table size :
200*200mm
Pulse Acceleration :
15~1500g
Pulse Width :
0.6~18 ms
Wave Type :
Half Sine
Description

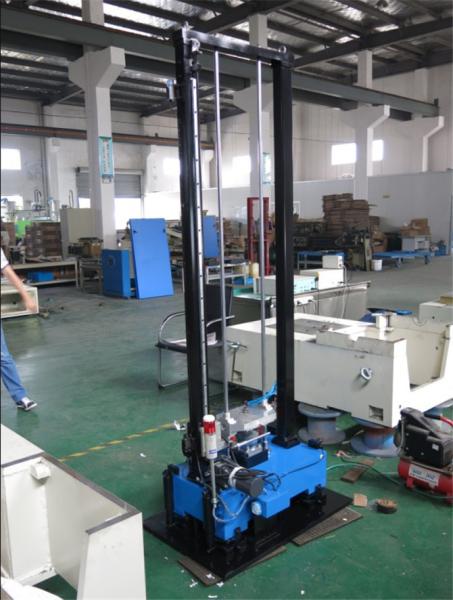

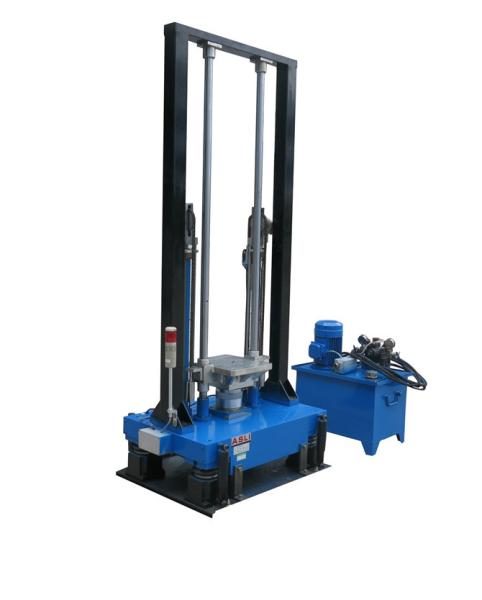

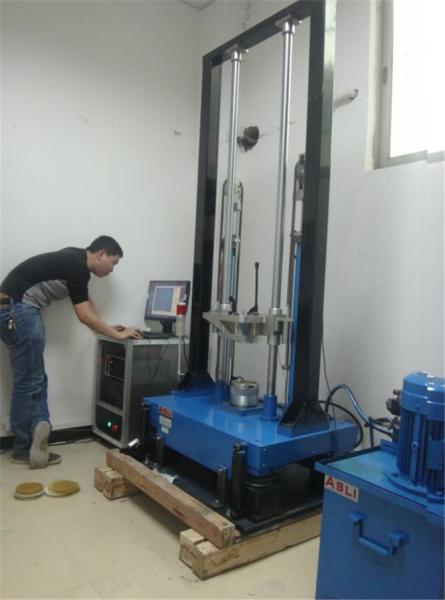

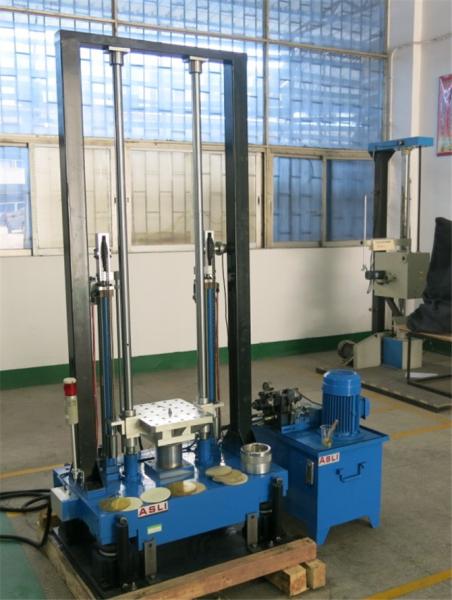

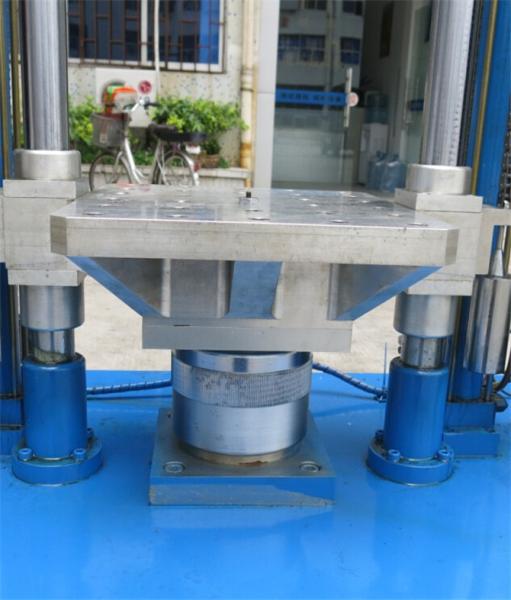

Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing

Application:

Acceleration Shock Test Equipment is mainly used for small products for impact test, to assess the product’s ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

Accelerated Mechanical Shock Test Bench Technical Parameters
Model SS-5 SS-10 SS-25 SS-50 SS-100 SS-200 SS-400
Load Capacity (Kg) 5 10 25 50 100 200 400
Table Size (mm) 120x120 200x200 350x350 450x450 650x650 750x750 850x850
Pulse Acceleration (m/s2) Half Sine Wave 150~15000 150~15000 150~15000 150~6000 150~6000 150~3500 150~1500
Trapezoid Wave 300~1000 300~1000 300~1000 300~1000 300~1000 300~1000 300~500
Sawtooth Wave 150~1000 150~1000 150~1000 150~1000 150~1000 150~1000 150~500
Pulse width Half Sine Wave 0.5~18 0.6~18 0.8~25 1.5~30 1.5~30 2~30 6~30
Trapezoid Wave 6~12 6~12 6~18 6~12 6~12 6~12 6~12
Sawtooth Wave 6~18 6~18 6~18 6~18 6~18 6~18 6~18
Drive Mode Mechanical drive Hydraulic drive
External Dimension WxHxD (mm) 800x2200 x900 800x2200 x900 850x2250 x950 1000x2600 x1300 1100x2700 x1400 1300x2700 x1600 1300 x2700x1650
Weight (Kg) 600 700 900 2600 3300 4000 4500
Hydraulic Oil No #46 hydraulic oil
Power

AC 380V 50/60HZ

Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing

Acceleration Shock Test Machine Price Features:

1.Built-in self-protection device, no secondary impact,

2.Shock height controlled by digital

3.Good repeatability test data

4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.

5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:

6.Good Safety performance.

7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves;

Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing

Please feel free to contact us if any doubt or needs about Accelerated Mechanical Shock Test Bench for Half Sine Wave Shock Testing.
