Electronic products machinery Testing Equipment damp heatchamber Environmental Temperature Humidity Calibrator Test

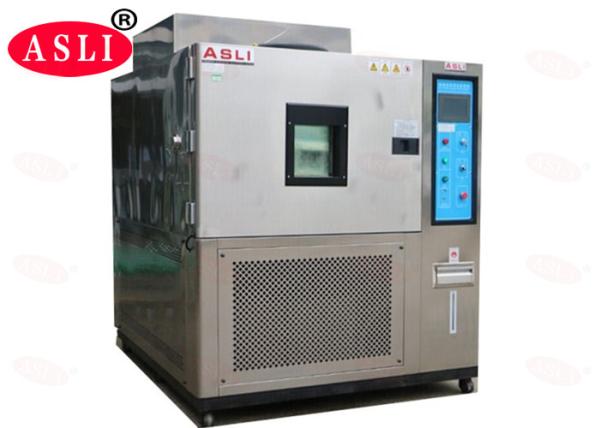

Temperature Humidity Environmental Test Chamber:

1.Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no
reaction. Easy to operate, safe and reliable. 2.Interior material:SUS#304 stainless steel , mirror polishing. 3.Exterior material:SUS#304 stainless steel.
4.Insulation Material:Resistant to high temperature, high density, formate chlorine, ethyl acetum foam
insulation materials. 5.Test hole: One hole (Dia.50mm or Dia.100mm) on left side of chamber, for connecting outside 's powerline or
signal line.

Dimension with Programmable Temperature Humidity Chamber:

1.Interior Dimension : Customized
2.Exterior Dimension : Customized

Temperature Range of Test Chamber:

1.Temperature: -70℃ ～ 180℃ (adjustable)
2.Humidity: 10% ～ 98% R.H . (adjustable)

temperature rising falling speed rate:

1. temperature rising speed: approx.0.1~3.0℃/min no-linear control without load
2. temperature falling speed: approx.0.3~1.0℃/min no-linear control without load

Machine accuracy about Programmable Temperature Test Chamber:

1.Analytic accuraty:
Temperature: 0.1 ℃
Humidity : 0.1 %

2.Control accuracy :
Temperature ± 0.5℃
Humidity : ±2.5%RH

3.Distribution uniformity:
Temperature:±2℃
Humidity:±3.0%

Control system for Temperature Humidity Test Chamber:

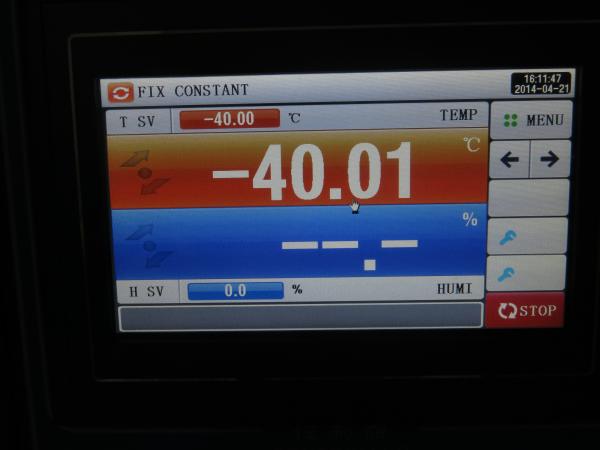

1.Imported LCD display screen, capable of displaying the measured value as well as the set value and time. 2.Fixed condition or programmable condition can be set. 3.Fixed condition setting time range: 0 - 99 H 59 MIN . 4.Programmable mold can set 100 different programe at the same time, each programe can set serverial
segement to do cycle testing
5.Each prgrame can have max.100 segement with different temperature setting,segement runing time
Max.59 H99M , Max.can do 999 times cycle. 6.With power off memory device, reply message to continue with the rest of the program. 7.The control unit has the functions of multiples segment program editing, and of quick or slope control of
temperature and humidity. 8.With TIMER SIGNAL OUTPUT RELAY. 9.Temperature sensor adopt DIN PT-100Ω
10. Adpot BTHC system to control temperature and humidity , P.I.D. control S.S.R.. 11.With P.I.D. auto calculate funtion. 12. With alarm function when runing or setting fault. 13. 5 years memory back up device while power off
14.With LOCK function for interface. 15.Recorder is optional

Control system about Programmable Temperature Test Chamber:

1.Imported LCD display screen, capable of displaying the measured value as well as the set value and time. 2.Fixed condition or programmable condition can be set. 3.Fixed condition setting time range: 0 - 99 H 59 MIN . 4.Programmable mold can set 100 different programe at the same time, each programe can set serverial
segement to do cycle testing
5.Each prgrame can have max.100 segement with different temperature setting,segement runing time
Max.59 H99M , Max.can do 999 times cycle. 6.With power off memory device, reply message to continue with the rest of the program. 7.The control unit has the functions of multiples segment program editing, and of quick or slope control of
temperature and humidity. 8.With TIMER SIGNAL OUTPUT RELAY. 9.Temperature sensor adopt DIN PT-100Ω
10. Adpot BTHC system to control temperature and humidity , P.I.D. control S.S.R.. 11.With P.I.D. auto calculate funtion. 12. With alarm function when runing or setting fault. 13. 5 years memory back up device while power off
14.With LOCK function for interface. 15.Recorder is optional

What's your main products our ASLI Support ?

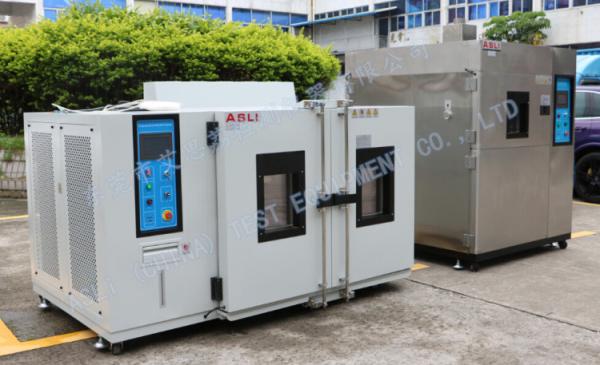

Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.

Any inquiries please feel free to contact us about this temperature humidity test chamber !
