Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate
Specifications
Brand Name :
ASLi
Model Number :
TS Series
Certification :
CE ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
20-25 days
Packaging Details :
standard export
Product Name :
High And Low Temperature Thermal Shock Chamber (CE Standard)
Internal Dimensions WxHxD (mm) :
400x350x350 ~ 800x750x750
External Dimensions WxHxD (mm) :
1400x1800x1400 ~ 1800x2200x1900
High temperature Range of Testing zone :
+60ºC~+150ºC ( 200ºC is Optional)
Low Temperature Range of Testing Zone :
-10ºC~-40ºC / -55ºC / -65ºC
Power :
AC220V
Description

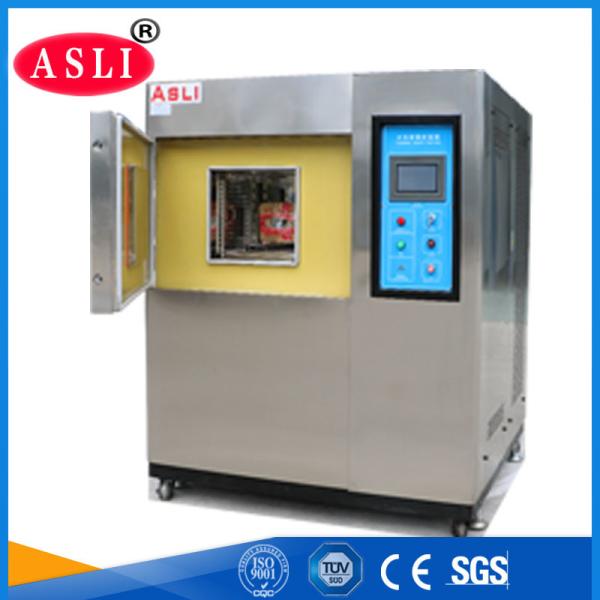

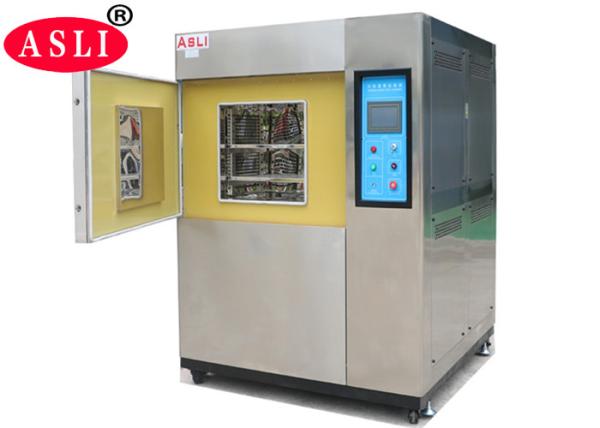

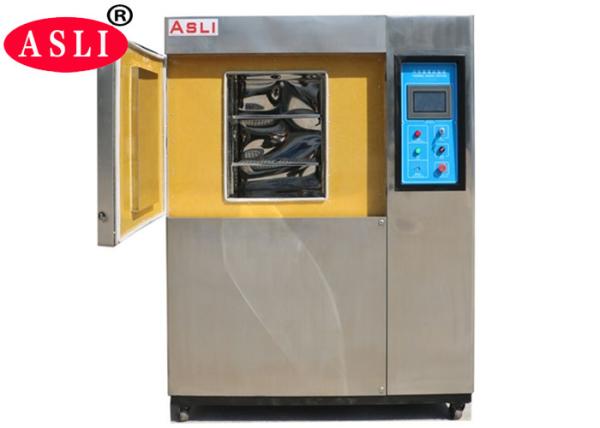

Laboratory Equipment​ High And Low Temperature Thermal Shock Chamber (CE Standard)

Application:


Temperature shock chamber is used to test the capability of material structure or composite materials to withstand the continuous environmental changes between extremely high temperature and low temperature during a short period, and therefore understand the chemical changes or physical damages caused by expansion from heat and contraction from cold in the shortest possible time. It is applicable to metals, plastic, rubber, electronics amongst other materials. The test result can be used as a reference or basis for product improvement.

Temperature shock chamber features:

1.It is divided into three zones: high temperature zone, low temperature zone, and testing zone. The test sample is in static mode.
2.Using touch-control graph control as operation interface, easy to operate.
3.Applying wind route conversation to the shock method to distribute temperature to the testing zone for cold and thermal shock measurement.
4.For high temperature shock or low temperature shock, max. time is up to 999H, and max. circulation cycles are 9999 times.
5.The system can be used for automatic Circulation Shock or manual selective shock.
6.Adopt binary cooling system, with quick cooling effect. Cooling method is water cooling.
7.Can entering normal temperature. RS-232 and RS-485 communication.

Short introduction about ASLi factory:

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.programmable thermal shoc chamber is our star products , and we had obtained the CE certification for this machine.

Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate

Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate


Technical parameters:

Model TS-49(A~C) TS-80(A~C) TS-150(A~C) TS-252(A~C) TS-450(A~C)
Internal Dimension
WxHxD ( mm) 		400x350x350 500x400x400 600x500x500 700x600x600 800x750x750
External Dimension
WxHxD (mm) 		1400x1800x1400 1550x1950x1550 1600x2000x1700 1700x2100x1750 1800x2200x1900
Temperature Range of Testing zone Type A:-40 ℃~+150℃ ( 200℃ is Optional) Type B:-55℃ ~+150℃ ( 200℃ is Optional ) Type C:-65℃ ~+150℃ ( 200℃ is Optional)
High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
Exposure Time of High/Low Temperature Exposure Time of High Temperature: +60℃ ~ +150℃ (200℃ is Optional) 30Mins
Exposure Time of Low Temperature : -10℃~Type A:-40℃ / Type B -55℃ / Type C -65℃ 30Mins
Temperature of Heat-Storing Slot / Heating Time RT~200℃/About 45mins
Temperature of Cool-storing Slot / Cooling Time RT~-75℃/ About 100mins
Temperature Recovery Time / Conversion Time ≤5min/≤5sec
Control Accuracy / Distribution Uniformity ±0.5℃/±2℃
Internal and External Material Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials
Mechanics P.I.D+S.S.R+ Micro-computer balanced temperature control system
Cooling System Semi-hermetic double-stage compressor(water-cooled type) /Hermetic double-stage compressor (air-cooled type)
Security Protection Devices Non-fuse breaker, high and low pressure protective switch of the compressor , refrigerator
high-pressure protective switch , failure warning system, electronic alarm
Accessories viewing window(special order)
Compressor French 'Tecumseh' Brand, Germany Bizer Brand
Power AC220V 1∮ 3 lines ,50/60HZ, AC380V 3∮ 5 lines ,50/60HZ
Weight (Approx) 450 600 750 950 1200

Laboratory Equipment High And Low Temperature Thermal Shock Chamber Easy To Operate

High And Low Temperature Thermal Shock Chamber (CE Standard):

1.Professional Manufacturer

2.Operation easy

3.Customized Size

4. Fast Delivery


Package: Standard export wooden case, plywood case or according to customer's requirement.


Warranty: one year free warranty for whole set machine,lifelong time maintainance.


After-sale service: feedback within 8 hours after get the call or email.


Service: OEM service,Design service,Buyer lable service.

We are looking forward to doing more business at home and abroad. If you are interested in our products,please feel free to contact us ! And warmly welcome our new and regular customers visit our factory !
