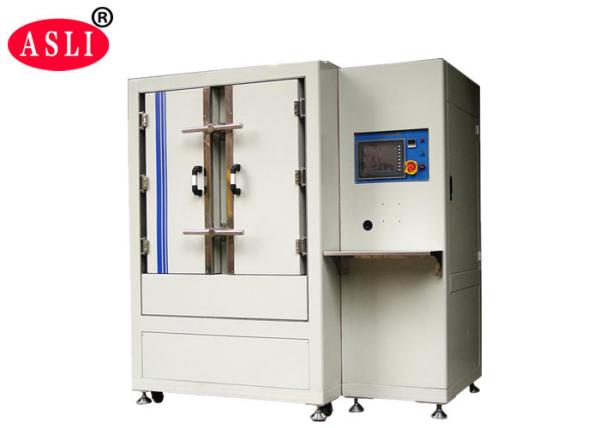

High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen
High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen
High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen
High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen
Specifications
Brand Name :
Ai Si Li
Model Number :
HLP
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T , Western Union
Supply Ability :
100 sets per month
Delivery Time :
20-25 days
Packaging Details :
Standard Export
Quality :
Certificated
Power supply :
AC380V 50/60 HZ
Material :
SEE cold-rolled steel with paint coated
Standard :
BS ASTM
Warranty :
12 Months
Color :
White
Description

High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen

Application:


High Low Temperature/Low Air Pressure Test Chamber is mainly used in aviation, aerospace, information, electronics and other fields, to ensure the environment adaptability and reliability of instruments , meters, electrical products, materials, parts, equipment in low temperature and low air pressure, or low temperature or low-high temperature and low air pressure, and measure the specimen’s technical parameters.


Features:


1.Perfect case structure, can undertake air pressure, stainless steel inner case.
2. Reasonable air cycle system and heater,refrigerator device.
3.Imported refrigeration units, key parts are international brands, improve the operation reliability.
4.Controller adopts touch screen man-machine interface, reliable operation, high precision.
5.Protection device for studio over-temperature, compressor over-load, over-pressure, oil pressure over-pressure ,fan over-load, default-phase, compressor delay.

Technical parameters:

Model HLP-408(D~F) HLP-1000(D~F)
Internal Dimensions WxHxD (mm) 600x850x800 1000x1000x1000
External Dimensions WxHxD (mm) 1400x1900x1900 1600x2050x2350
Pressure Range Atmospheric pressure(101 Kpa)~0.5 Kpa
Pressure Deviation Pressure 50 Kpa ~10 Kpa, ±3 Kpa;
Pressure 10 Kpa ~50 Kpa, ±1.0 Kpa;
Pressure 1 Kpa ~10 Kpa, ±0.1 Kpa
Velocity of Depressurization

Atmospheric pressure ~1kpa≦40min (Room temperature situation);
Low Air Pressure Mode Vacuum pump
Temperature Range Low Temperature( D:-40℃ F:-70℃) High Temperature 150℃
Analytic Accuracy of Temperature 0.1 ℃
Distribution Uniformity of Temperature When temperature≦100℃, ±3.0℃ (Atmospheric pressure and non load),
When temperature>100℃, ±5.0℃ (Atmospheric pressure and non load)
Control Accuracy of Temperature ±0.5℃
Temperature Rising/Falling Speed Rate Temperature rising approx. 0.2~1.2℃/min,
Temperature falling approx. 0.2~1.2℃/min;
Internal and External Material

Material of the inner box is SUS 304# stainless steel,of the outer box is

stainless steel or SEE cold-rolled steel with paint coated.
Insulation Material

Resistant to high temperature, high density, formate chlorine,

ethyl acetum foam insulation materials

Cooling System Wind cooling or water cooling / single segment compressor(-40℃, double segment compressor -70℃)
Protection Devices

Fuse-free switch, overloading protection switch for compressor,

fault warning system,high and low voltage coolant protection switch,over-temperature protection switch, fuses,

Compressor French Tecumseh Brand, Germany Bizer Brand
Power

AC 380V, 3∮ 5 Lines, 50/60HZ

Certification:

High And Low Temperature Low Air Pressure Test Chamber Temperature Cycling Chamber With Touch Screen

FAQ:

1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years exporting experience.

2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific items and item quantities.

3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.

4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and test, the finished products must through a third party calibration institutions before shipping and delivery goods.

5. How to install and training?
If the products is easy to install and training, customers can learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to learn how to installation and use. And our engineers have a passport, we can go to overseas.

Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us !
