Programmable HAST Chamber for Pressure Aging Testing
Programmable HAST Chamber for Pressure Aging Testing
Programmable HAST Chamber for Pressure Aging Testing
Programmable HAST Chamber for Pressure Aging Testing
Specifications
Brand Name :
ASLi
Model Number :
HAST
Certification :
CE
Place of Origin :
China
MOQ :
1 Sets
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
45 Sets Per Month
Delivery Time :
15~20 Workdays
Packaging Details :
Standard Export Poly Wood Case Packaging
Steam Temperature Range :
100C~135C
Steam Humidity :
70~100% RH adjustable
Pressure :
0.0Kg/cm2~2.0Kg/cm2
Volume :
Customize
Power :
AC 220V, AC 380V
Description

Programmable HAST Chamber Pressure Aging Test Chamber with Touch Screen Controller

1. Technical Parameters:

Model

HAST - 25

HAST - 35

HAST - 45

HAST - 55

HAST - 65

Internal Dimension:Φ×D

(mm)

300×250

350×450

450×550

550×650

650×750

External Dimension

Φ×D (mm)

850×1300×

900

900×1350×

900

1000×1480×

1000

1150×1650×

1200

1300×1800×

1350

Steam Temperature

Range

Steam Temperature Range: 100°C~135°C, (143°C is optional)

Relative Pressure/
Absolute Pressure

Relative pressure: display values indicated on the pressure gauge
Absolute pressure: Value that add 100 Kpa based on display values indicated on the

pressure gauge (The actual value in the inner box)

Steam Humidity

70~100%R.H. steam humidity adjustable

Steam Pressure

(Absolute Pressure)

101.3Kpa +0.0Kg/cm2~2.0Kg/cm2 ; (3.0Kg/cm2 is special standard)

Recursive Device

Steam in forced-circulation

Safety Protective

Devise

Water short storage protect, over pressure protect.(have automatically/manual water replenishing, automatically discharge pressure function )

Accessories

Two layers stainless steel plate

Equipment Capacity(L)

17

43

87

155

250

Powder

AC220V, 1Φ 3 Lines ,50/60HZ; AC380V ,3 Φ 5 Lines,50/60HZ

2.Features:

1.Automatic adding water function, and automatic filling water upon the water short storage while testing.
2.Automatic operation to test process finished, easy to use.
3.Temperature control: LED digital temperature controller can make accurate testing of temperature setting, control and

display.
4. LED digital timer, when the inner box's temperature reached the setting value, then start to time to ensure the test

complete.
5.Accurate pressure: temperature chart always shows the inner box's pressure and relative humidity.
6.Water device is automatically discharge not saturated steam in order to achieve the best steam quality.
7.A integrated silica gel door gasket, air tightness is very good, and long operation life.
8.The inner box is mirror-polished , graceful and non-pollution

3.Safety Device:

1. Safety device for the pot: If the inner box is not closed , the machine can not start

2. Safety Valve: When the inner box's pressure higher than the machine's undertake value, it will self-relieve.

3. Double overheat protection device: When inner box's temperature is too high, it will alarm, and Automatic cut off

the heating power.

4. Cover protection: The inner box's cover is made of aluminum alloy, can protect the worker from scald.

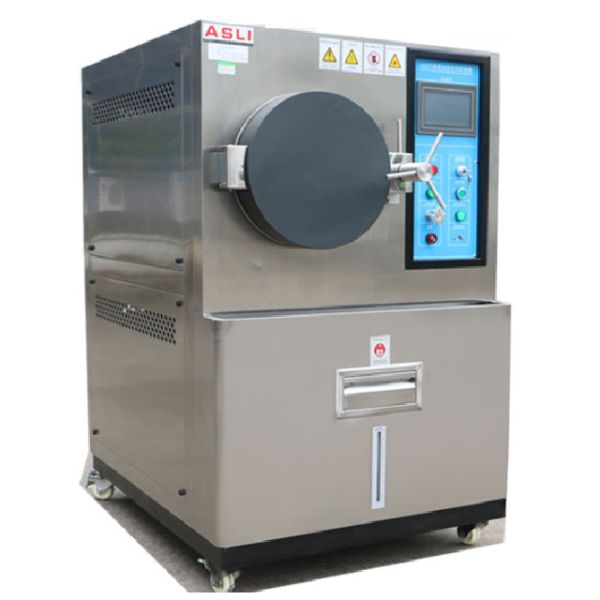

HAST high-pressure accelerated aging test chamber Pictures:


Programmable HAST Chamber for Pressure Aging Testing

Programmable HAST Chamber for Pressure Aging Testing

Contact:

Ms.Joanna Wen
ASLi (CHINA) TEST EQUIPMENT CO., LTD
Company Add.:Building C,JinHui Industrial Park, LiXin town,East City district 523125,DongGuan City,China
Tel.:0086-769-23164266
Fax:0086-769-22851784

Skype: wenyumin2013

Whatsapp: 008613794918303
Website:http://www.aslitesting.com
