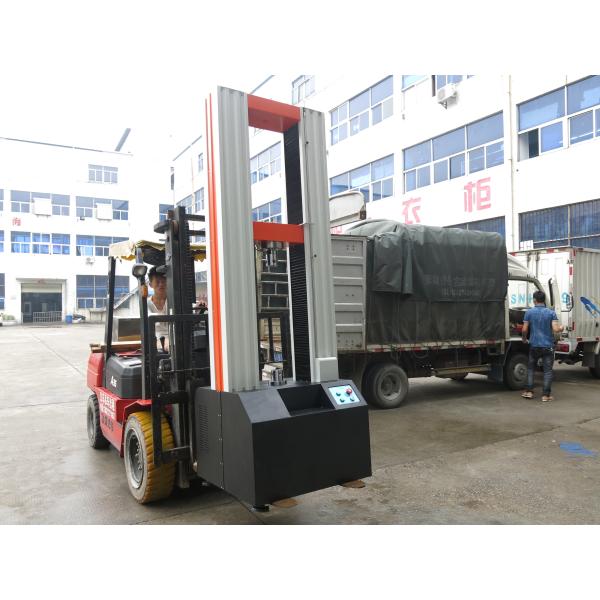

1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
Specifications
Brand Name :
ASLi
Model Number :
AS-PC
Place of Origin :
Guangdong City , Dongguan Province , China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
45 sets per month
Delivery Time :
20~25 days
Packaging Details :
Standard Export Poly Wood Case Packaging
Volume :
50~20000Kg
Test Speed :
0.1~500mm/min
Speed Accuracy :
+/-0.5%
Motor :
AC Servo Motor
Dimension :
W1750xH3310xD1220mm
Power :
AC220V
Description

Computer Servo Control Universal Tensile Tester Lab Test Equipment 1~20KN

Application:

Tensile Testing Machine is an electrically operated machine that is used for testing tensile strength and elongation of materials like plywood, wires, cables, conductors, ferrous and non-ferrous materials.

Features:

1. Force value and deformation can display at the same time.

2. Drive by servo motor, stand-alone can sent testing speed directly.

3. Press Start button the machine will testing automatic after setting.

4. After finishing testing, it can self-return.

5. Fast disassembly joint, can use different kinds grips.

6. Single button testing function, easy operation

7. Direct-connected to printer, print out report.

Technical Parameters:

Model

AS-PC- Volume

Capacity (Kg)

50,100,200,500,1000,2000,5000,10000,20000

Load Accuracy

0.5%

Load Resolution

1/100,000

Valid Width (mm)

400

Max. Route (mm)

1000(not including clamp)

Test Speed (mm/Min.)

0.1~500(1000)

Speed Accuracy

±0.5%

Motor

AC servo motor

Volume WxHxD (mm)

1750x3310x1220

Weight (Kg)

300

Power

AC220V, 1ph 3 lines; AC380V, 3ph 5 lines

1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester

1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester

1~20KN Computer Servo Control Lab Test Equipment Universal Tensile Tester
