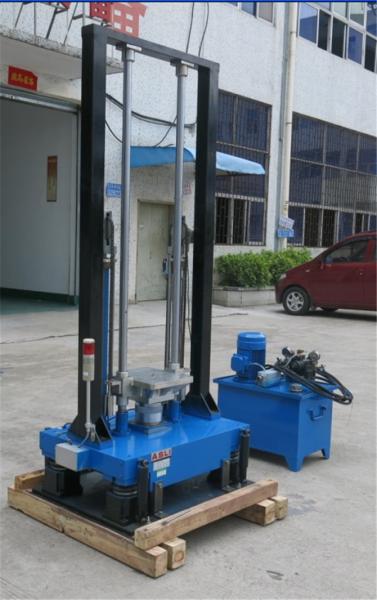

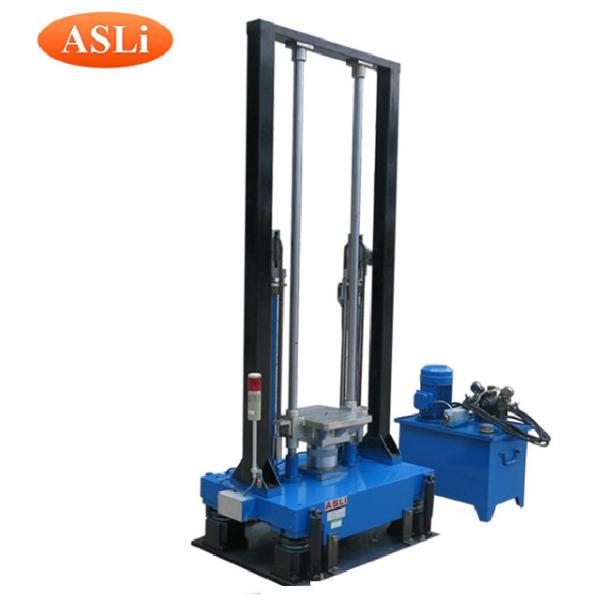

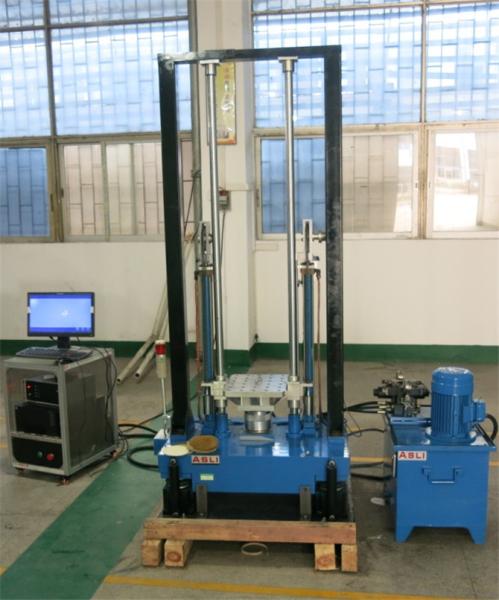

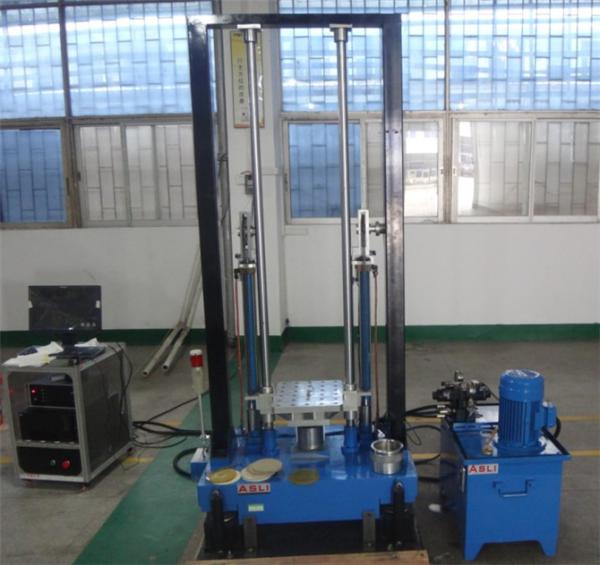

Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test
Specifications
Brand Name :
ASLI
Model Number :
SS-25
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per year
Delivery Time :
40 workdays
Packaging Details :
wooden case
table size :
350x350mm
Half Sine Wave :
150~15000 m/s2
Falling :
Free Falling
drive mode :
mechanical drive
hydraulic oil :
46#
Description

Acceleration Mechanical Shock Tester SS-25.pdf

Packaging Mechanical Acceleration Shock Tester for Half Sine Shock Test

Product Application

Acceleration Mechanical Impact Test Equipment is designed for measuring and ensure shock performance of products and packages. It can do normal shock test with half sine wave, square wave, sawtooth wave etc., simulate products under real environment shock conditions, thus improve and perfect products package structure.
Standard Compliance

1.YD/T 2344.1—2011 LiFePO4battery system for telecommunications. Part 1:Integrated battery system
2.GB/T 2423.5Environmental testing for electric and electronic products. Part 2: Test methods. Test Ea and guidance: Shock
3.GB/T 2423.6Environmental testing for electric and electronic products. Part 2: Test methods. Test Eb and guidance: Bump
4.IEC 68-2-29Test Eb and guidance:Bump
5.JJG497-2000Verification Regulation of Bump Testing Machines
SPECIFICATIONS FOR Shock Impact tester
Models
SS-5
SS-10
SS-25
SS-50
SS-100
SS-200
Load Capacity (Kg)
5
10

25
50
100
200
Table Size (mm)
120x120
200x200
350x350
450x450
650x650
750x750
Pulse Acceleration (m/s2)
Half Sine Wave
150~15000
150~15000
150~15000
150~6000
150~6000
150~3500
Trapezoid Wave
300~1000
300~1000
300~1000
300~1000
300~1000
300~1000
Sawtooth Wave
150~1000
150~1000
150~1000
150~1000
150~1000
150~1000
Pulse width
Half Sine Wave
0.5~18
0.6~18
0.8~25
1.5~30
1.5~30
2~30
Trapezoid Wave
6~12
6~12
6~18
6~12
6~12
6~12
Sawtooth Wave
6~18
6~18
6~18
6~18
6~18
6~18
Weight (Kg)
600
700
900
2600
3300
4000
Packaging Mechanical Acceleration Shock Tester For Half Sine Shock Test

Main Features

Good durability customized digital mechanical tester for acceleration shock test for home appliances test Features:
1.Built-in self-protection device, no secondary impact,
2.Shock height controlled by digital
3.Good repeatability test data
4.Signal generator provides a variety of choice: half sine wave, trapezoidal wave, sawtooth wave, square wave, etc.
5.Good vibration isolation performance, impact on the environment can control within the scope of the requirements:
6.Good Safety performance.

7.Conform to the IEC, MIL, GJB, JIS, ASTM and other international and domestic standard shock waves
