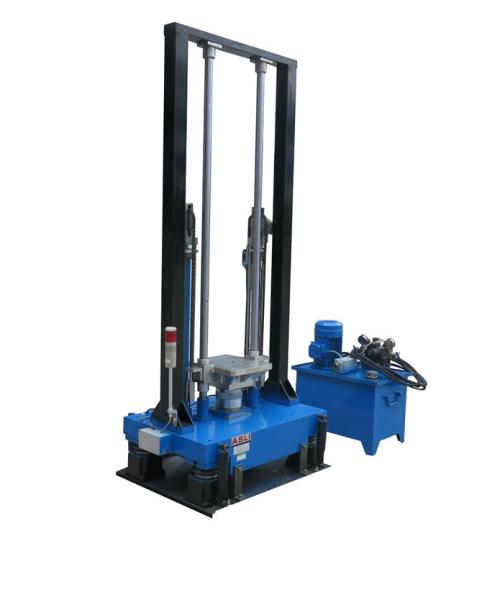

Half Sine Wave Acceleration Battery Shock Testing Machine with Payload 100kg Meets UN38.3

Features:

1. void secondary shock device
2. Digital setting impact height and automatic rising

1. Digital control system, showing the impact waveform while impacting.

2. Good structure design.

3. Impact table without resonance, shock data accurately.

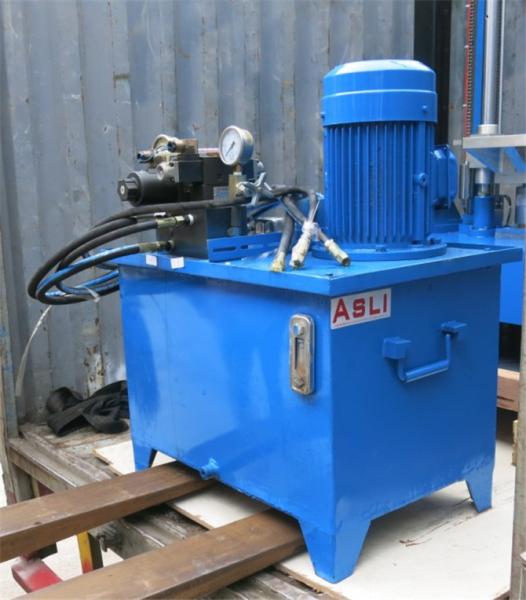

4.Hydraulic lifting mechanism, steady lifting.

5. Two pillar for precision guide to ensure that the platform lift smooth, guide ring containing gas-liquid brake device and the control precision.

6. With peak sawtooth wave, trapezoidal wave expanding function (Optional).

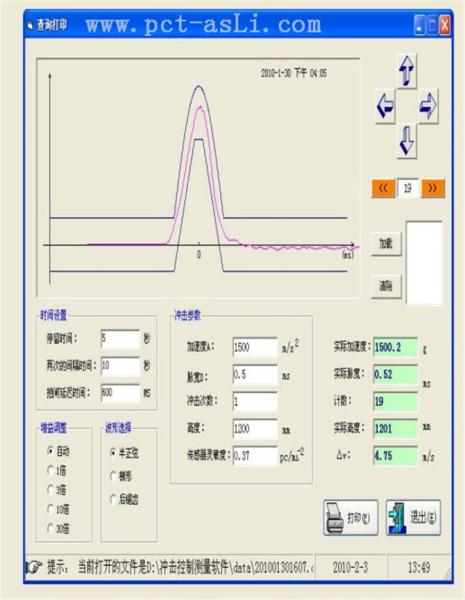

7. The measuring system can automatically capture the impact process, can record, preserve the whole testing process.

8. With monitor function while testing, meanwhile can offer full waveform monitor mode.

Introduction:

With the rapid development of the military and electronic components industry, the impact of environmental testing equipment for extraordinary large energy have certain requirements. thus, our company actively researched and developed high impact acceleration test and impact test system adapt to this kind of demand, these equipments are designed for electronic components, instruments and machinery products for simulation shock environment test equipment.

This test equipment in line with the standard GJB360A-96-213 mechanical shock test conditions and UN38.3, GB/T2423.5-1995 the electrical and electronic products environmental test procedure test Ea: basic impact test method and the IEC68-2-27, test the Ea: shock "and" MIF - STD202F "specification for impact test requirements.

Technical Details:

Accessories:

1. Impact table one pic

2. Controller of impact table one set

3. Voltage type acceleration sensor one set

4. Cables (power cable, output cable) one set

5. Industry LCD,computer,printer one set
