Specifications
Brand Name :
ASLI
Model Number :
TH-80-B
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
internal dimension :
W400*H500*D400mm
volume :
80 liters
humidity range :
20%R.H. ~98 %R.H.
Material :
Stainless steel
sample shelves :
3 pcs
Refrigerant :
Environmental friendly R23/R404A
Description

Small Volume Temperature Humidity Test Chamber Stainless Steel Shelves 20%-98%RH Humidity Range

Climatic Temperature Test Chamber

1.LCD touch screen
2.Inner material:SUS#304 Stainless steel
3.TEMI 880 controller

4. Test Hole: Dia.500mm or Dia. 100mm

5. The internal Dimension can customized


Temperature Humidity Stability Testing Chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and -70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing

Technical Parameters
Model TH-80(A~F)

Internal Dimension

WxHxD (mm)

 400x500x400
External Dimension WxHxD (mm) 650x1700x1050
Temperature Range

Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C)

High Temperature 150°C

Humidity Range 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is optional , need Dehumidifier)
Indication relolution /Distribution uniformity of temperature and humidity 0.1°C; 0.1% R.H/±2.0°C; ±3.0% R.H.
Control Accuracy of Temperature and Humidity ±0.5°C; ±2.5% R.H.
Temperature Rising/Falling Velocity

Temperature rising approx. 0.1~3.0°C/min ;

temperature falling approx. 0.1~1.0°C/min;

( Falling Min.1.5°C/min is optional)
Inner and Outer Material Interior material is SUS 304# stainless steel, exterior is stainless steel or see cold-rolled steel with paint coated.
Insulation Material Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials
Cooling System Wind cooling or water cooling, (single segment compressor-40°C, double segment compressor -70°C)
Protection Devices Fuse-free switch, overloading protection switch for compressor, high and low voltage coolant protection switch, over-humidity and over-temperature protection switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor French Tecumseh Brand, Germany Bizer Brand
Power AC220V 1 phase 3 lines, 50/60HZ , AC380V 3 phase 5 lines , 50/60HZ
Approx. Weight (Kg) 220

Environmental Humidity Accelerated Aging Test Chamber/Temperature Humidity Control Unit is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, builing materials, luggage, adhesion tape, printing, packaging, etc.

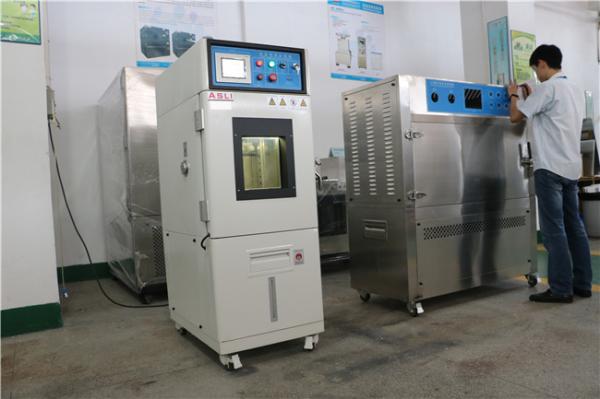

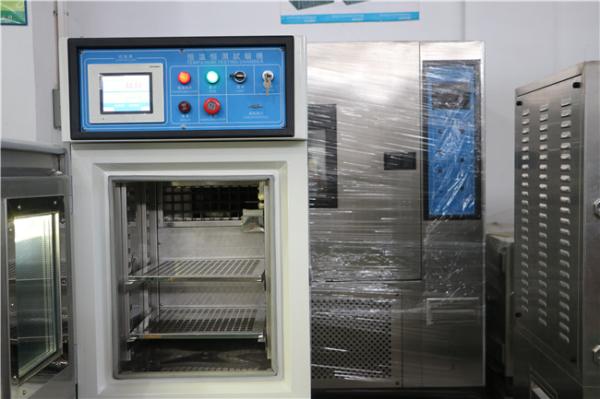

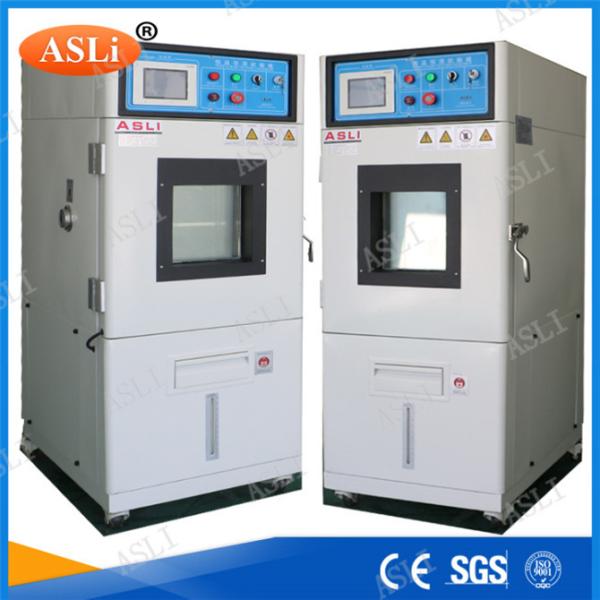

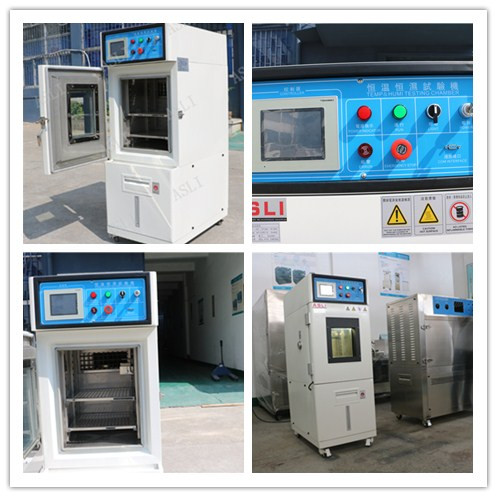

Product Pictures:

Small Volume Temperature Humidity Test Chamber Stainless Steel Shelves 20%-98%RH Humidity Range

Small Volume Temperature Humidity Test Chamber Stainless Steel Shelves 20%-98%RH Humidity Range
