270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment
Specifications
Brand Name :
ASLI
Model Number :
SH-90
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
Ph :
6.5~7.2 3.0~3.2
Spray volume :
1.0~2.0ml/80cm2/h
Power supply :
220V 50Hz
Air pressure :
1.00±0.01kgf/cm2
Laboratory temperature :
NSS.ACSS 35°C ±1°C/ CASS 50°±1°C
Function :
To evaluate the corrosion resistance of products or metal materials
Description

Salt Spray Test Machine Price/Corrosion Test Chamber

Application:

Salt Spray Test Machine Price/Corrosion Test Chamber is specially designed for the testing of the corrosion erosion resistance of the products after their material surfaces have been treated with electric plating, anodizing, spray coating, anti-rusting oil and other anti-erosion treatment.

Corrosion Test Chamber Technical parameters:

Model SH-60 SH-90 SH-120 SH-160 SH-200
Internal Dimension WxHxD (mm) 600x450x400 900x600x500 1200x800x500 1600x800x500 2000x1000x500
External Dimension WxHxD (mm) 1100x600x1200 1400x950x1200 1900x1300x1400 2300x1300x1400 2700x1500x1500
Lab Temperature Saline test (NSS ACSS) 35±1 ºC ;Corrosion Test (CASS)50±1 ºC
Pressure Bucket Temperature Saline test method (NSS ACSS) 47±1 ºC / Corrosion Test (CASS)63±1 ºC
Lab Capacity(L) 110 270 500 800 1500
Saline Capacity(L) 15 25 40 40 40
Saline Concentration 5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure(Kgf) 1.0~6.0
Spray Volume 1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form Continuous Spraying or Programmable Spraying
Power AC220V 1ø 3 lines15A
Weight(Kg) 65 80 120 160

200

Salt Spray Test Machine Features:

1. Adopt automatically or manually adding water system, can watered by itself while lack of water.

2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt

3. Double over-heat protection devise and alarm when water short storage to ensure use safety.

4. Digitally temperature controller, PID controlled, precision of ±0.1ºC

5. Laboratory direct steam-heated, even heating speed, reducing the standby time.

6. Tapered Spray tower, even mist dropping

7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing

8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)

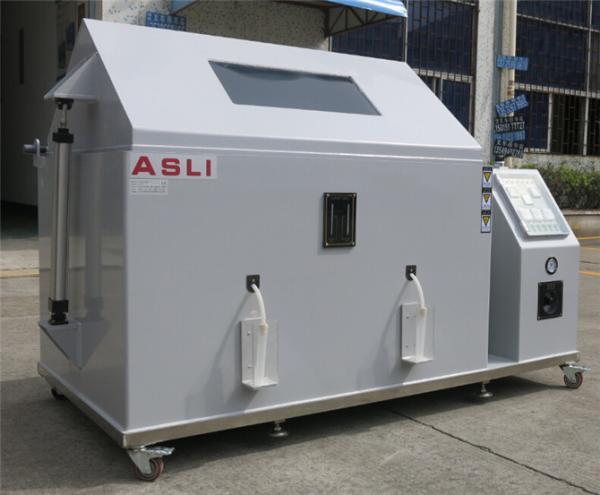

Pictures for reference:

270L Neutral Salt Spray Test Chamber , PVC Coating Corrosion Testing Equipment

270L Neutral Salt Spray Test Chamber, PVC Coating Corrosion Testing Equipment
