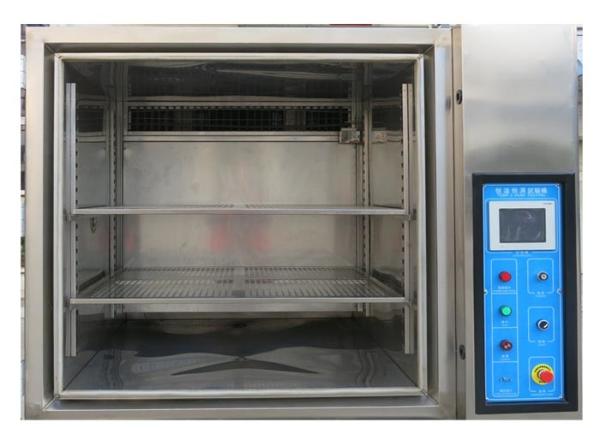

150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking
Specifications
Brand Name :
ASLi
Model Number :
TH-150D
Certification :
CE/BV/SGS/TUV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
50 sets per month
Delivery Time :
20 - 25 days
Packaging Details :
wooden case
Internal Dimension :
500X600X500mm
External Dimension :
1050X1550X1050mm
Material :
stainless steel
Temp. range: :
-40°C ~150°C
Quality :
Certified
Description :
Floor Standing laboratory climate auto testing machines temperature chamber
Description

150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking


Application:

150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking used for steady-state stability testing, With standard sizes ranging from 80L to 1m3.. temperature test chambers meet common temperature and humidity testing needs. is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries


Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole
series (R232,R404)
6. Imported LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws

Technical Parameters:

Model TH-150-D
Internal Dimension W500xH600xD500(mm)
Internal Dimension W1050xH1750xD1050(mm)
Temperature Range Low Temperature: D:-40℃(Temperature according to customer’s requirement)
High temperature: 150℃
Humidity Range 20%~98% R.H.

Analytic Accuracy/
Distribution uniformity of temperature

and humidity

 0.1℃; 0.1% R.H/±2.0℃; ±3.0% R.H.
Control Accuracy of
Temperature and Humidity		 ±0.5℃; ±2.5% R.H.

Temperature Rising/

Falling Speed Rate

Temperature rising approx. 0.1~3.0℃/min

temperature falling approx. 0.1~1.5℃/min;
( The Falling Speed Rate Min.1.5℃per minute is a special optional condition)
Temperature humidity
control chart
Material

Material of the inner box is SUS 304# stainless steel, of the outer box is stainless

steel or SEE cold-rolled steel with paint coated, Insulation material is resistant to

high temperature, high density, formate chlorine, ethyl acetum foam insulation

materials

Cooling System

Wind cooling or water cooling/single segment compressor(-40℃, double segment

compressor -70℃)
Protection Devices

Fuse-free switch, overloading protection switch for compressor, high and low

voltage coolant protection switch, over-humidity and over-temperature protection

switch, fuses, fault warning system, water short storage warning protection
Optional Accessories Inner door with operation hole , Recorder, Water Purifier, Dehumidifier
Compressor French Tecumseh Brand,Germany Bizer Brand
Power AC220V 1ph 3 lines, 50/60HZ , AC380V 3ph 5 lines , 50/60HZ

Approx. Weight (Kg)

 180

150L Humidity Temperature Chamber Environmental Test Chambers For Quality Checking

For more Floor Standing laboratory climate auto testing machines temperature chamber quality tester please feel free to contact me at sales3@aslitesting.com, we alsway standby!
