Specifications
Brand Name :
ASLI
Model Number :
TS-49-A
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
500 sets per year
Delivery Time :
35 workdays
Packaging Details :
wooden case
Refrigerant :
Environmental friendly R23/R404a
Temperature recovery time :
Less than 5min,Within 5min
internal dimension :
400x350x350mm
viewing window :
optional
temperature range :
-40 C~+150C
Application :
Environmental Climate Simulation Test
Description

Application

The programmable Thermal Shock Test Machine manufacturer is the perfect testing machine of electronic components, metal, chemical materials, automation components, communication module, national defense industry, aerospace industry, BGA, PCB substrate, electronic chip IC, semiconductor ceramic and high polymer materials.

Parameter:

Name
Thermal Shock Chamber For Environmental Climate Simulation Test
Model
TS-49(A~C)
TS-80(A~C)
TS-150(A~C)
Internal Dimension WxHxD (mm)
400x350x350
500x400x400
600x500x500
External Dimension WxHxD (mm)
1400x1800x1400
1550x1950x1550
1600x2000x1700
Temperature Range of Testing zone
Type A:-40 ℃~+150℃ ( 200℃ is Optional)
Type B:-55℃ ~+150℃ ( 200℃ is Optional )
Type C:-65℃ ~+150℃ ( 200℃ is Optional)
Control Accuracy / Distribution Uniformity
±0.5℃/±2℃
Internal and External Material
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material
High temperature resistant , high density , formate chlorine , ethyl acetum foam

♦ Test area:

Test area is made of stainless steel.

Elevator type

Basket displacement time less than 15 seconds

2 pieces of adjustable and removable shelves

Test hole, sealed with silicone screw plug

Lamp inside of chamber

Smooth sample elavator transfer between cold chamber to hot chamber

♦ Cooling system:

Mechanical compression refrigeration system

Refrigerating unit is french TECUMSEH compressor

Two cascade compressor

Environment friendly refrigerant R404A for first stage

♦ Control panel:

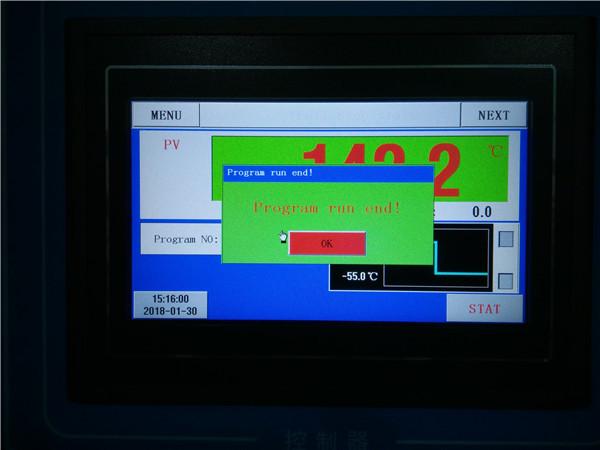

Programmable color display touch screen controller

Programs reach to 999 groups and 999 sections

RS-232/RS-485 interface, PC Link, LAN network

Pictures for reference:

Two Zones Thermal Shock Chamber for Environmental Climate Simulation Test

Two Zones Thermal Shock Chamber for Environmental Climate Simulation Test

Two Zones Thermal Shock Chamber for Environmental Climate Simulation Test
