Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine
Specifications
Brand Name :
ASLI
Model Number :
AS-DB-200
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
Max. Height :
0 ~ 2m
Drop Method :
Free falling
Dimension :
W500×H2110×D500mm
Application :
plastic, glass
Description

Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine


Over 20years factory in China
Fast delivery
1 year warranty


Professional technical support

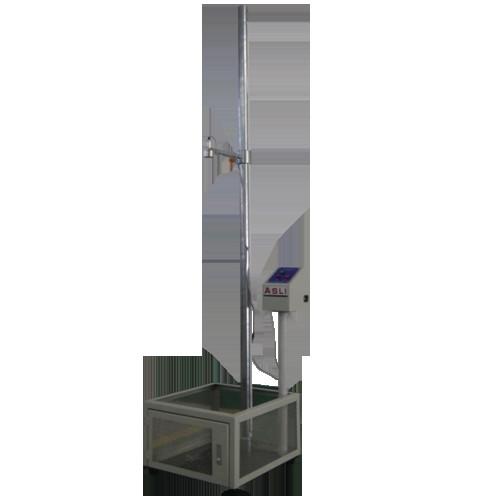

Drop Ball Impact Tester used to measure the impact resistance by the specified steel ball at specified height. It applies for ceramic, acrylic, glass, plastic and etc.


Parameter:

Model AS-DB-200
Max. Height 0 ~ 2m
Drop Method Free falling

Weight and diameter

of Steel Ball

One set steel ball:
112g(Φ30mm), 198g(Φ36mm), 225g(Φ38mm), 357g(Φ41mm),

500g (Φ12.7mm=0.5inch), 1042g(Φ64mm), 2280g(Φ82mm)
Steel ball standard: JIS K-5400
Dimension W500×H2110×D500mm
Weight 65Kg
Power AC220V
Rail According to customer's requirement

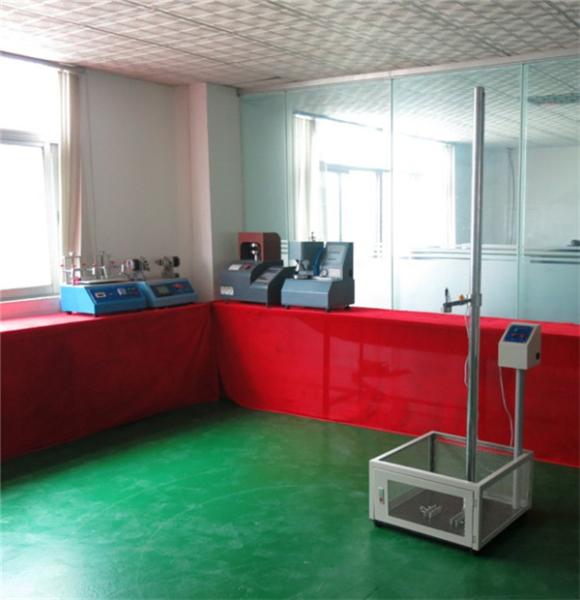

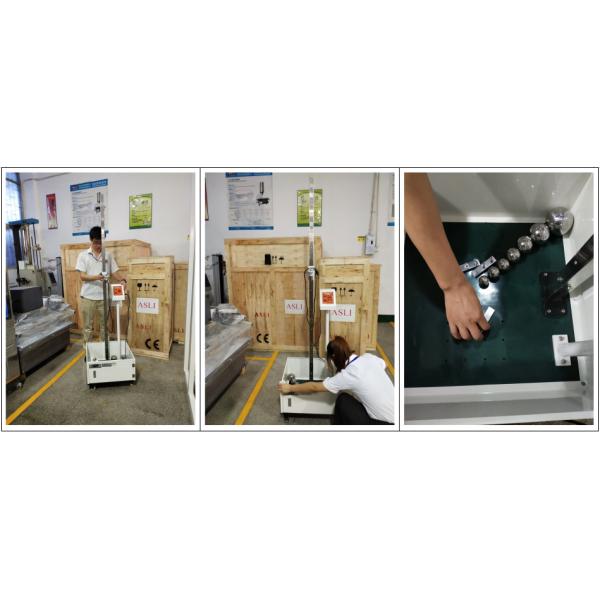

Pictures for reference:

Ball Drop Impact Test IEC 60950-1 Impact Test Using A Steel Ball Testing Machine

Drop Ball Impact Test Machine
