Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Specifications
Brand Name :
ASLI
Model Number :
THR-Volume
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per year
Delivery Time :
40 workdays
Packaging Details :
wooden case
temperature range :
0~150 ℃
humidity range :
20%R.H.~90%R.H.
test hole :
Dia. 100mm
viewing window :
W250*D300mm
door :
Double door
Application :
LED
Description

humidity and temperature test chamber

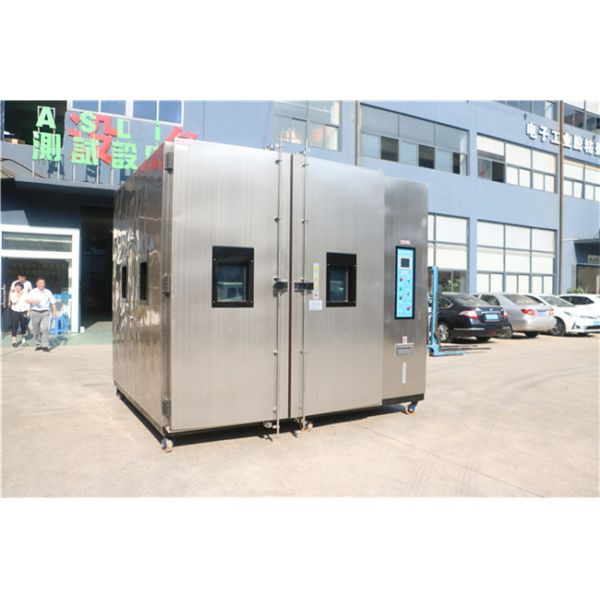

Constant Temperature And Humidity Controlled Walk-in Room Climatic Test Chamber

Climate Chamber With Dynamometer Walk-In Assembled is suitable for testing extremely large equipment and device such as automobile shells, carriages, satellite electronic plates and photovoltaic plates. The temperature range is considerably wide and temperature rising and decrease rate is fast. Thus made it a perfect test equipment for manufacturing industry and research institutions.

Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃)
High Temperature 80℃ (80℃ ~150℃ is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Indication Resolution/Distribution Uniformity of Temperature & Humidity
0.1℃; 0.1% R.H/±2.5℃; ±3.5% R.H.
Control Accuracy of Temperature and Humidity
±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
Drive-In Testing Chamber/Programmable Humidity Chamber Protection Devices
Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection

Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber

Climate Chamber With Dynamometer Walk-In Assembled Optional accessories:

1. Cable Port: Two size of cable port is available: Dia. 50mm, or Dia. 100mm.
2. Double door.
3. Pass room: Provided to avoid disturbance of atmospheric temperature and humidity while opening the door.
4. Floor reinforcement: Can be fixed if heavy specimen placed in the chamber for test.
5. Carry-in inclined platform: Provided below the door to facilitate moving of specimens in and out through the door.
6. Entire ceiling blow-out duct
7. Water purifier
8. Dehumidifier
9. Temperature and humidity recorder
10. Status indication lamp
11. Provide to signal chamber status and warnings when normal running, a malfunction running or stand by occurs.

Constant Temperature And Humidity Controlled Walk - In Room Climatic Test Chamber
