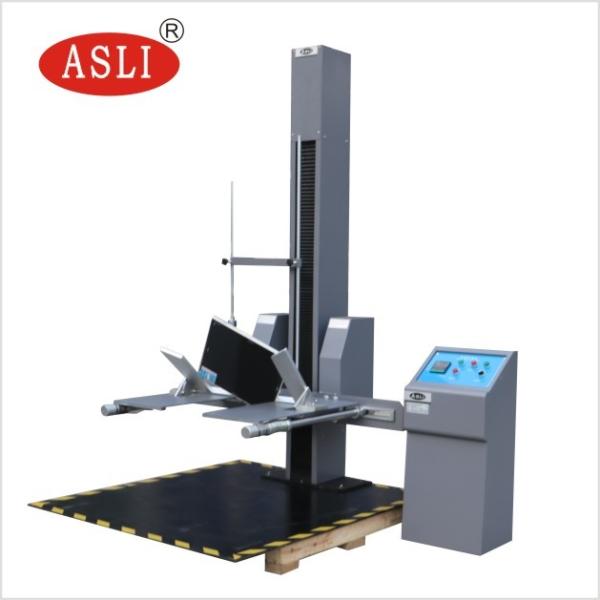

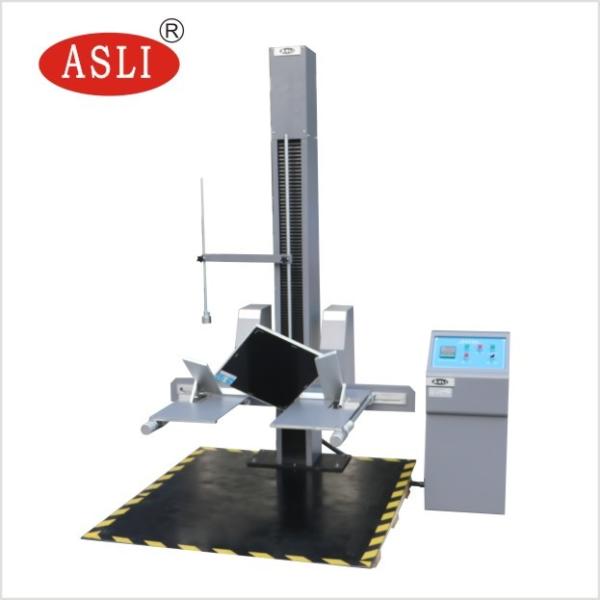

Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine
Specifications
Brand Name :
ASLi
Model Number :
AS-DT-150
Certification :
CE, ISO, SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
100 Sets/ month
Delivery Time :
15~20workdays
Packaging Details :
Standard Export Plywood Case
Max. Load :
100Kg
Height of Drop :
300~1500mm
Max. Dimension of Test Sample :
W1000xH800xD1000mm
Falling Floor Size :
W1700xH50xD1200mm
Drop Method :
Face, edge, angle
Weight :
800Kg
Description


Height 300~2000mm Drop Testing Machine for Carton Box Drop Machine


Application:


Height 300~2000mm Drop Testing Machine for Carton Box Drop Machine is applied to assess the package in the actual transportation, loading and unloading process by dropping the degree of impact, impact-resistant strength and evaluate the reasonable of packaging design.


Height 300~2000mm Drop Testing Machine for Carton Box Drop Machine​ Technical Parameters:

Model AS-DT-120 AS-DT-150 AS-DT-200
Max. Weight of Test Samples (Kg) ≥200 100 100
Height of Drop (mm) 0~1200 300~1500 300~2000
Max. Dimension of Test Sample WxHxD (mm) 1200x1200x1200 1000x800x1000 1000x800x1000
Falling Floor Size WxHxD (mm) 1400x50x2000 1700x50x1200 1700x50x1200
Drop Method Face, edge, angle
Test Bench External Dimension WxHxD (mm) 1400x2000x1800 1700x2200x1200 1700x2700x1200
Weight (Kg) 1500 800 900
Power AC 380V / AC220V


Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine


Carton Box Drop Testing Laboratory Testing Equipment with 1500 mm Drop Height Feature:
1. The main axle of tester used dual axle rode, high precision and good stability. Power failure safety design, it will be kept the original condition under power cut and the swing arm will not break away unusually.
2. The tester has set limits upward and down, will not exceed safety range when testing.

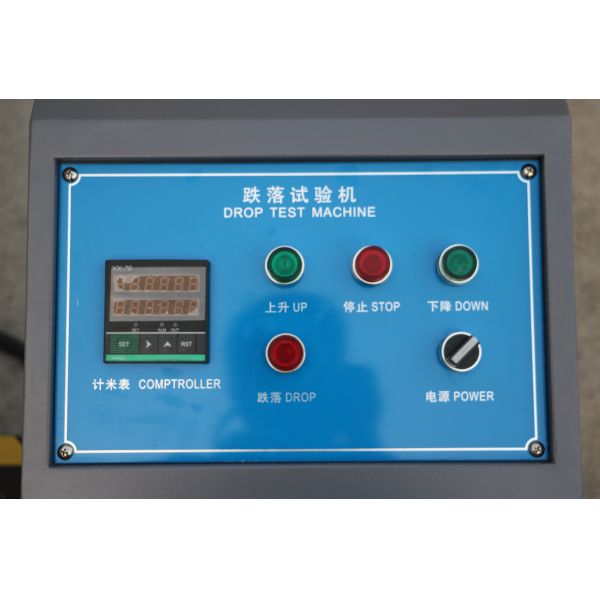

3. Support arm with electronic reset capability, can avoid the accident by manual operation.

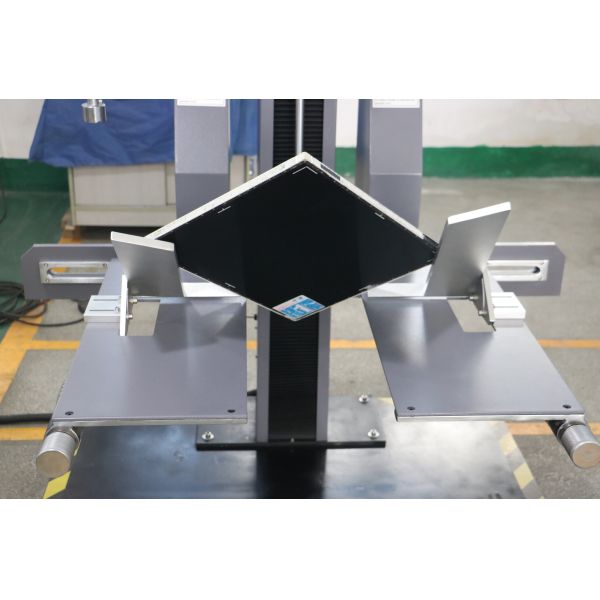

4. Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing height.

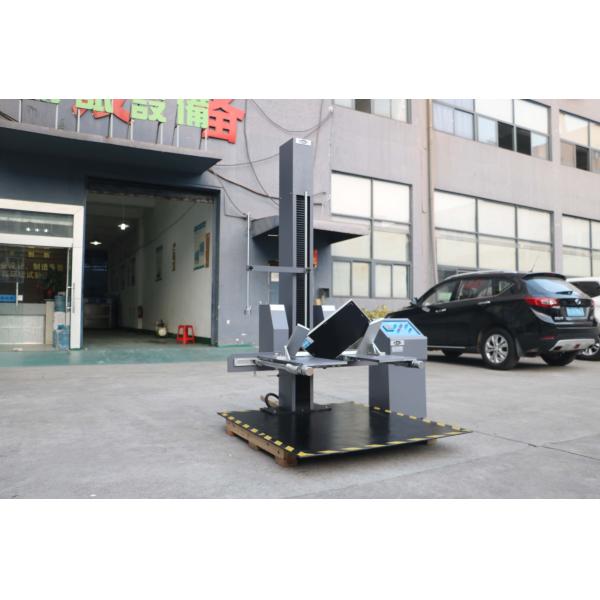

More Dorp Test Machine pictures for reference:

Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine

Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine

 Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine

ASLi main test equipments:


Environmental chambers, temperature (humidity) chamber,Thermal shock chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, AS-DT-200 Falling Impact Testing Machine, Single-arm Drop Test Machine, Walk in stability chamber,Vacuum oven,electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber,etc.

Warranty: one year free warranty for whole set machine,lifelong time maintainance.

After-sale service: feedback within 8 hours after get the call or email.

Service:OEM service,Design service,Buyer lable service.


Certificate of these the machine:


China official 3rd party calibration report
CE certiification

More ASLi Hot Products:


Height 300~2000mm Drop Testing Machine For Carton Box Drop Machine

If you interested in Height 300~2000mm Drop Testing Machine for Carton Box Drop Machine or have any questions, pls kindly contact with us , thank you .
