Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
Specifications
Brand Name :
ASLI
Model Number :
AS-DT-150
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
Arm :
Double Arm
application :
Carton Box
drop height :
300-1500mm
max size :
W1000*d800*h1000mm
drop method :
face,edge,angle
power :
AC380V
Description

Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester

Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester​ Test Machine:

Drop Test Machine of 1.5m Drop Height

Drop Test Machine mainly used for package in the transportation, loading and unloading process to improve the ability to withstand fall, perfect packaging

Drop Test Machine used for evaluating the damage and impact resistance when handling and carrying a package, to do a free fall test for the area, angle and edge of the package.

Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester

Double Arm/single arm Paper Carton Drop Test Machine/Materials Drop Tester​ Test Machine:

Model
AS-DT-150
Max. Weight of Test Samples (Kg)
100(customized)
Height of Drop (mm)
300~1500
Max. Dimension of Test Sample WxHxD (mm)
1000x800x1000
Falling Floor Size WxHxD (mm)
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1700x2300x1200
Weight (Kg)
700

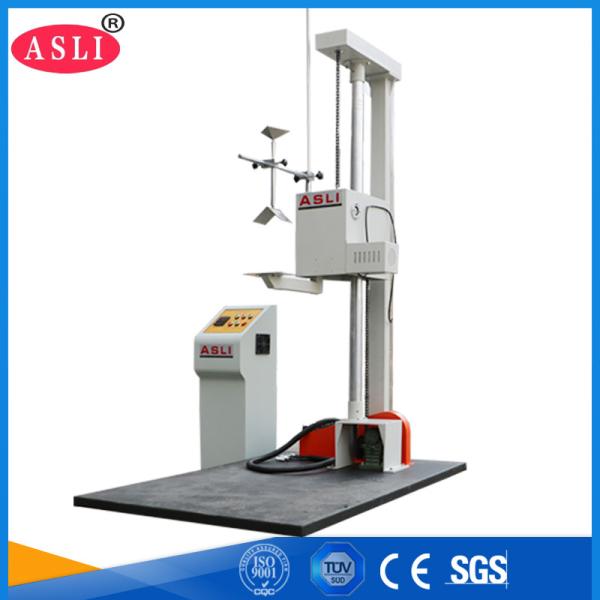

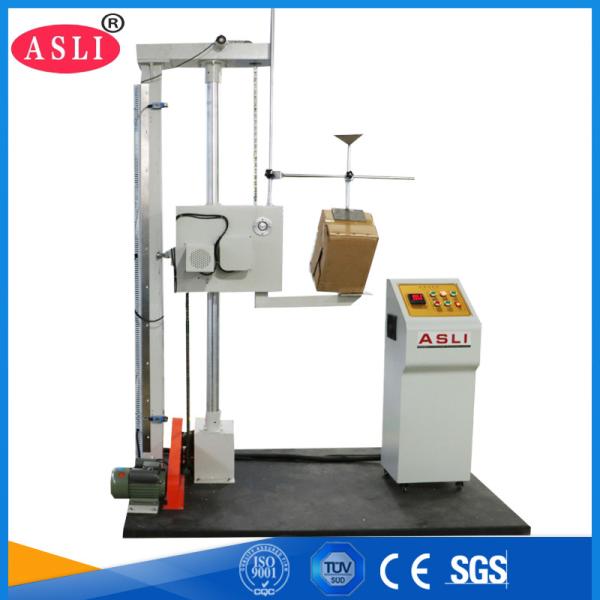

Pictures for reference:
Double Arm / Single Arm Paper Carton Drop Test Machine / Materials Drop Tester
The principle:
During the products handling or transport process, there may be drop/ fall, which results in damage within the products. And this Drop Tester simulates the drop/ fall of a finished product to evaluate the damage. All the rhombohedrons, angles and faces of the products can be tested.

Purpose:


This machine is designed to test the product packaging fall by the damage, and evaluation of the transportation handling the Wings Drop Testing Machines in China process of impact resistance strength.


Characteristics:


This machine can be a face of packaging, horn, edges as free drop test, equipped with digital display highly display and using decoder the high tracking, which can accurately gives products drop height, and the drop height error less than 2% or 10 mm.
The machine adopts single arm double column frame structure, with electric reset, electric control drop and electric lift device, easy to use; Unique hydraulic buffer device to greatly improve the machine service life, stability and security.
The single arm Settings, can be easily placed products, drop impact Angle face and floor plane Angle error is less than or equal to 5 º.


Design standard
ASTM D5276-98, ISTA 1A (free drop)
ISTA 1A: Relationship of weight and drop height
