500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
500 Degree High Temperature Ovens For Circuit Board 150L Volume
Specifications
Brand Name :
ASLI
Model Number :
RHD-60
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 workdays
Packaging Details :
wooden case
Heating Medium :
electric heating tube
Current Controller: :
SSR
max. temperature :
500 Degree
application :
Circuit Board
internal dimension :
500×600×500mm
volume :
150L
Description

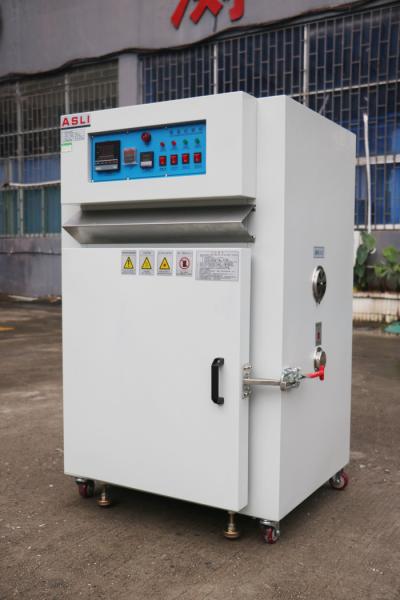

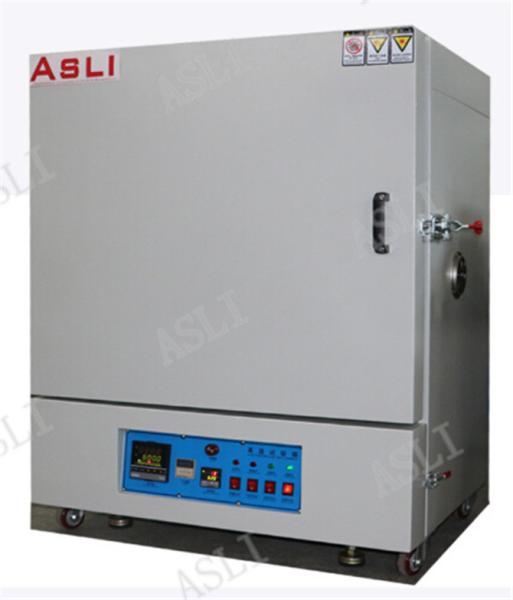

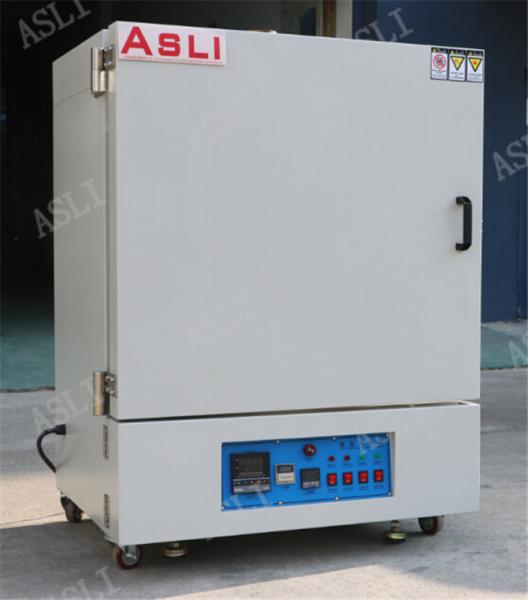

500 Degree High Temperature Oven for Circuit Board
Product Description

ASLI Brand 500 Degree High Temperature Oven for Circuit Board can provide a stable test space for pre-heating, drying, changes about physics and chemistry testing. It supplys precision temperature controllter with high stability of platinum resistance to temperature that makes temperature well-distribution.

Name
High Temperature Oven
Model
RHD - 45
RHD - 60
RHD - 90
Internal Dimension W×H×D(mm )
450×400×400
500×600×500
600×900×500
External Dimension W×H×D(mm )

650×900×550
700×1200×650
850× 1600×700
Interior and Exterior Material
Interior material is SUS 304# stainless steel,
exterior is stainless steel or SEE cold-rolled steel with paint coated.
Temperature Range
(RT+15C) to 200C; (300 to 500℃ is optional)
Indication Resolution/ Distribution Uniformity
0.1℃/±2.0℃;( When temperature is 100℃)
Temperature Rising Velocity
Temperature rising velocity: from R.T. to 200℃,needs approx. 35mins

Specifications

1. Outside SECC steel, fine powder coating treatment; Inner SUS#304 stainless steel.
2. Use new high temperature resistant long shaft motor
3 Turbine fan.
4. Silicone forced tight.
5. Overtemperature protection, super load automatic power system.
6. Circulation system: air force level cycle.
7. Heating system:PID+S.S.R.
8. The thermostat: PID microcomputer control, automatic constant temperature, temperature quickly compensation function
9. Timer: temperature to time, when the power failure alarm indication.
10. According to customer demand matching glass window can be customized according to customer specifications specified.

500 Degree High Temperature Ovens For Circuit Board 150L Volume
