Specifications
Brand Name :
ASLI
Model Number :
ES-40
Certification :
CE, ISO ,SGS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
600 sets per year
Delivery Time :
35 workdays
Packaging Details :
standard export plywood case
Force :
40000N
Frequency :
5Hz to 3500Hz
Sweep-frequency Mode :
Sine Random
Sweep-frequency Times :
1 to 32767
Max. Acceleration :
100g
Max. Speed :
1.6m/s
Weight of Moving Coil :
3.5 kg
Vertical Expander :
400*400mm
Description

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

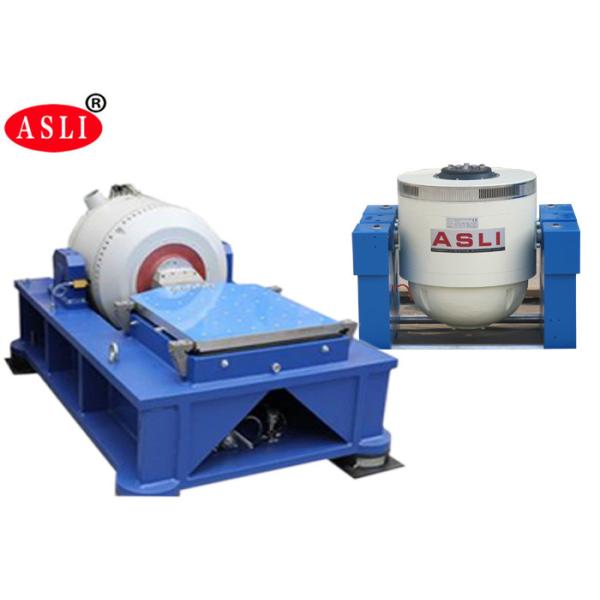

Electrodynamic shake vibration tester adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

High Frequency Vibration Table Technical Parameters
Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

 Rated Acceleration (m/s2) Rated Speed (m/s)

Rated displacement

(p-p)mm

 Max. Loading (Kg) moving coil (Kg)

Dimension of

Moving coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500

Technical parameters of horizontal expander:

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

technical parameters of vertical expander:

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

Product Pictures

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

Exhibition:

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

High Frequency Package Testing Equipment , Vibration Measuring Equipment 1 Year Warranty

3000 High Frequency Sine Random Force High Frequency Vibration Table
