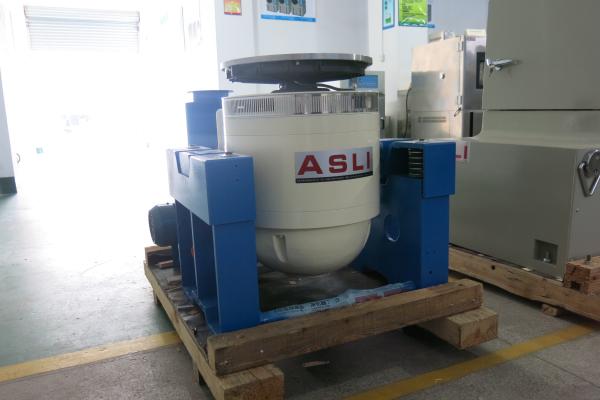

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054
Specifications
Brand Name :
ASLI
Model Number :
ES-20
Certification :
CE. SGS
Place of Origin :
China
MOQ :
1
Price :
USD
Payment Terms :
T/T,
Supply Ability :
30 set/Mlonth
Delivery Time :
35day
Packaging Details :
wooden box packing
Power supply: :
220V 50Hz / 380V 60hZ
Measuring range :
1000~350000N
Standard :
UN38.3 Standard
Product name :
Vibration Tester
Description

Battery Electromagnetic Vibration Test Bench for Shock and Vibration Test for UL 2054

High frequency Vertical & Horizontal Generator Electromagnetic Vibration Shaker for Semiconductor are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the disribution or in-use environment. The machine are simple to use can perform a wide range of vibration test in accordance with government,industry and corporated specifications.

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

1. A combined structure of test chamber and refrigerating system boasting compact and graceful design; independent console

2. To make it convenient for operation; original refrigerating compressor unit and its main accessories imported from abroad

3. Imported LCD color touch screen controller capable of automobile control of temperature humidity programs;

4. With R232 Telecommunication interface. To meet customer's unique demands, users may choose from different models of vibration test bench to ensure that in addition to good cool

5.Heat and air seal system, this vibration bench will also boasts remarkable effect of mechanical vibration

Battery Electromagnetic Vibration Test Bench for Shock and Vibration Test for UL 2054

Technical Parameters:

Name
 Battery Electromagnetic Vibration Test Bench for Shock and Vibration Test for UL 2054
Model
Rated Sine Force (N)
Rated Random Force (N)
Frequency Range (Hz)
Rated Acceleration (m/s2)
Rated Speed(m/s)
Rated displacement (p-p)mm
Max. Loading (Kg)
moving coil (Kg)
Dimension of Moving coil (mm)
ES-6
6000
6000
3-3500
1000
1.6
25
180
6.5
Φ230
ES-6a
6000
6000
3-3500
1000
1.6
51
250
12
Φ230
ES-10
10000
10000
3-3000
1000
1.8
51
270
14
Φ240
ES-20
20000
20000
3-3000
1000
1.8
51
300
30
Φ320
ES-30
30000
30000
3-2800
1000
1.8
5l
450
40
Φ450
ES-40
40000
40000
3-2800
1000
1.8
51
500
50
Φ450
ES-50
50000
50000
3-2700
1000
1.8
51
750
50
Φ450
ES-60
60000
60000
3-2700
1000
1.8
51
750
60
Φ450
ES-100
100000
100000
3-2500
1000
1.8
51
1000
90
Φ450

Test Standards:

GB/T 31241-2014 Portable electronic products with lithium ion batteries and battery safety requirements

GB/T 18287-2013 The specification of cellular phone use lithium ion battery.The requirements of external short circuit

GB/T 8897.4-2008 Galvanic cell part 4 the security requirements of lithium-ion batteries

YD/T 2344.1-2011 Communication iron phosphate lithium-ion battery pack Part 1: integrated battery

GB/T 21966-2008 The security requirements of Lithium battery and battery in transport

MT/T 1051-2007 lithium ion battery used to miner`s lamp

YD 1268-2003 The security requirements and test methods of lithium battery and charger used in mobile phone

GB/T 19521.11-2005 Lithium-ion battery pack of dangerous goods dangerous features safety standards inspection

YDB 032-2009 Communication backup type lithium ion battery pack

UL 1642:2012 Standard for lithium batteries

UL 2054: 2012 Household and commercial batteries

UN38.3 (2012) Part 3: proposal for dangerous goods transport - test and standard manual

IEC62133-2012 The safety requirements for battery and battery pack of containing alkaline or acidic electrolyte

IEC 62281: 2004 The safety requirements in transport of Lithium battery and battery

IEC 60086: 2007 Galvanic cell part 4 the security requirements of lithium-ion batteries

GJB150,GJB360,GJB548,GJB1217,MIL-STD-810F,MIL-STD-883E etc.

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

Battery Electromagnetic Vibration Test Bench For Shock And Vibration Test For UL 2054

ASLi(CHINA)TEST EQUIPMENT CO.,LTD

Add: Building C,JinHui Industry Park,Lixin town,Dongcheng District,DongGuan City.China

Tel: 0086-769-23164266

Fax:00865-769-22851784

skype: asli168

mobile: 0086 13602387384
