Specifications
Brand Name :
ASLI
Model Number :
MS-50
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per year
Delivery Time :
45 workdays
Packaging Details :
wooden case
external dimension :
W800*H1300*D1000mm
max. load :
50Kg
table size :
500*700mm
max. drop height :
60mm
Shock Waves :
half-sine
power :
AC220V
Description
Half-Sine Shock Waves Mechanical Shock Impact Tester
Technical Parameters
Model MS-50 MS-100 MS-200 MS-500 MS-800
Load capacity (kg) 50 100 200 500 800
pulse acceleration ( m/s2 ) 50~1200 50~1000 50~1000 50~500 50~500
Pulse Width (ms) 20~3 20~3 20~3 20~3 20~3
Frequency (times /min) 10~80 10~80 10~80 10~80 10~80
Table Size (mm) 500*700 700*700 700*700 800*800 1000*1000
Max. Dropped Height (mm) 60 60 60 60 60
Pulse Type Half Sine wave, (trapezoidal wave, and the sawtooth wave, square wave optional)
External Dimension W*H*D (mm) 800*1300*1000 800*1300*1000 850*1350*1100 1000*1300*1900 1000*1300*1900
Weight (Kg) 1100 1250 2000 3000 3500
Protection Device Door protection, over-load protection, zero signal protection
Power AC 220V(±10%), 1phase 3 Lines ,50/60HZ; AC 380 V(±10%) ,3 phase 5 Lines,50/60HZ
Environmental Conditions Temperature: 25°C±5.0°C humidity: <85%(25°C)

mechanical shock tester Application:


Mechanical Shock and Impact Testing Machine is mainly used for small products for impact test, to assess the product's ability to withstand shock damage. It is often used in electronic components, electronic circuit boards and other environmental testing.

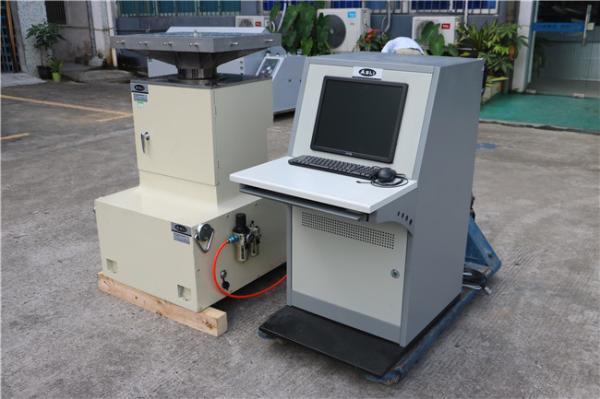

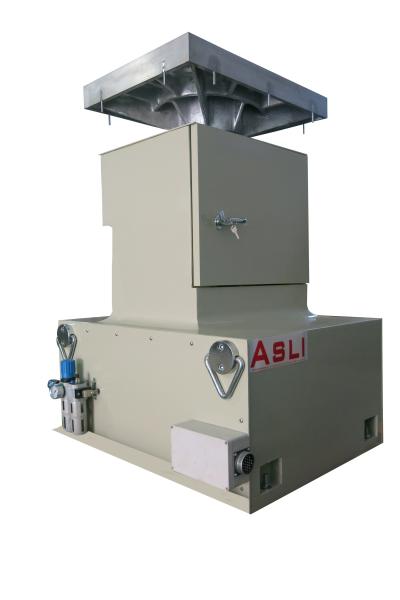

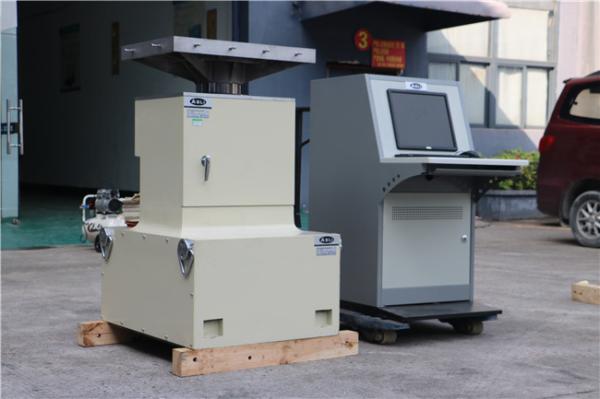

Shock Test bench

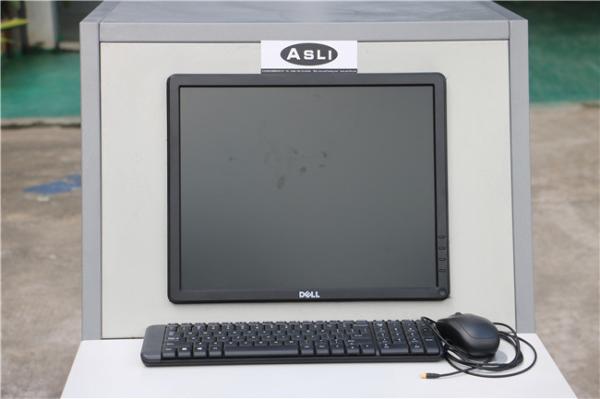

Shock and measure controller

Features:


1. Working bench with perfect structure, good uniformity of bench's acceleration.
2. High reliable of system, safety device.
3. The saw-tooth wave and trapezoidal wave, etc. extensible.
4. Capacity of crash and impact test function.
5. Optoelectronic feedback.

Half - Sine Shock Waves Mechanical Shock Impact Tester Max. Load 50Kg
