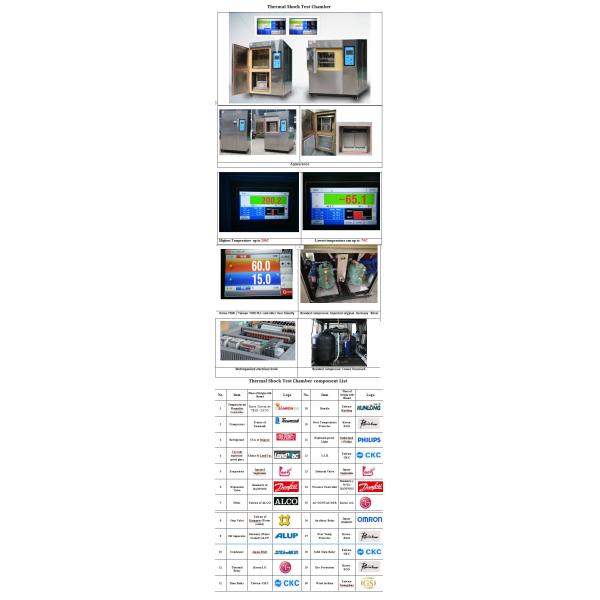

Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Climatic High Low Temperature Thermal Shock Chamber , Thermal Shock Equipment Hot , Cold Impact Testing Machine
Specifications
Brand Name :
ASLI
Model Number :
TS-49-C
Certification :
CE ISO SGS
Place of Origin :
China
MOQ :
1set
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
30-45 working days
Packaging Details :
Standard export wood case for thermal shock test chamber
Internal Dimension :
600x500x500mm
Temperature Range :
-65degree ~+150degree
Temperature of Heat-Storing Slot :
RT~200degree
Heating Time :
About 45mins
Temperature Recovery Time :
≤5min
Conversion Time :
≤5sec
Precision temperature Control :
±0.5degree
Distribution Accuracy :
±2degree
Warranty :
12 Months
Compressor :
Original France Tecumseh,France imported--Tecumseh
Description

Climatic High Low Temperature Thermal Shock Chamber (Hot , cold impact testing machine)

Heating shock tester (Hot cold impact testing machine) technical parameters:


Model
TS-42
(A~C)
TS-80
(A~C)
TS-150
(A~C)
TS-252
(A~C)
TS-450
(A~C)

Internal Dimension
WxHxD ( mm)
400x350x350
500x400x400
600x500x500
700x600x600
800x750x
750

External Dimension
WxHxD (mm)
1400x1800x
1400
1550x1950x
1550
1600x2000x1700
1700x2100x1750
1800x2200x
1900

Temperature
Range of
Testing zone
Type A:-40 ºC~
+150ºC
(200ºC is Optional)
Type B:-55ºC ~+150ºC
(200ºC is Optional)
Type C:-65ºC ~+150ºC
(200ºC is Optional)

High temperature Range of Testing zone:
+60ºC~+150ºC
(200ºC is Optional);
Low Temperature Range of Testing Zone:
-10ºC~-40ºC
/-55ºC/-65ºC

Exposure Time of
High/
Low Temperature
Exposure Time of High Temperature:+60ºC~+150ºC
(200ºC is Optional) 30Mins

Exposure Time of Low Temperature:-10ºC~Type A:-40ºC/ Type
B -50ºC/ Type C -60ºC 30Mins

Temperature of Heat-Storing Slot/
Heating Time
RT~200ºC/About 45mins

Temperature of
Cool-storing Slot/
Cooling Time
RT~-75ºC/ About 100mins

Temperature
Recovery Time/
Conversion Time
≤5min/≤5sec

Control Accuracy /
Distribution
Uniformity
±0.5ºC/±2ºC

Internal and External
Material
Material of the inner box is SUS 304# stainless steel,of the outer box is
stainless steel or SEE cold-rolled steel with paint coated.

Insulation Material
High temperature resistant, high density, formate chlorine, ethyl acetum
foam insulation materials

Mechanics
P.I.D+S.S.R+ Micro-computer balanced temperature control system

Cooling System
Semi-hermetic double-stage compressor(water-cooled type) /
Hermetic double-stage compressor (air-cooled type)

Security Protection
Devices
Non-fuse breaker, high and low pressure protective switch of the
compressor ,refrigerator high-pressure protective switch, failure warning
system, electronic alarm

Accessories
viewing window(special order)

Compressor
French "Tecumseh" Brand, Germany Bizer Brand

Power
AC220V 50/60HZ, AC380V,50/60HZ

Weight (Approx)
450
600
750
950
1200

Testing Specific:
GB/T 2431.1-2001 Testing A: Low temperature testing method
GB/T 2431.2-2001 Testing B: High temperature testing method
GJB 150.3-1986: High temperature
GJB 150.4-1986: Low temperature
IEC68-2-1 Test A: Cold
IEC68-2-2 Test A: Dry
GB 11158 High and low temperature test term
GB/T 2423.2 << Electrolic products basic environmental test: B: high temperature method>>
