Specifications
Brand Name :
ASLI
Model Number :
AS-200
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 workdays
Packaging Details :
wooden case
max. load :
200kg
Effective Area :
1200*1000mm
Rotating Speed :
150~300RPM
Amplitude :
25.4mm
Time Setting :
0~999hours
mode of vibration :
Reciprocating type
Description

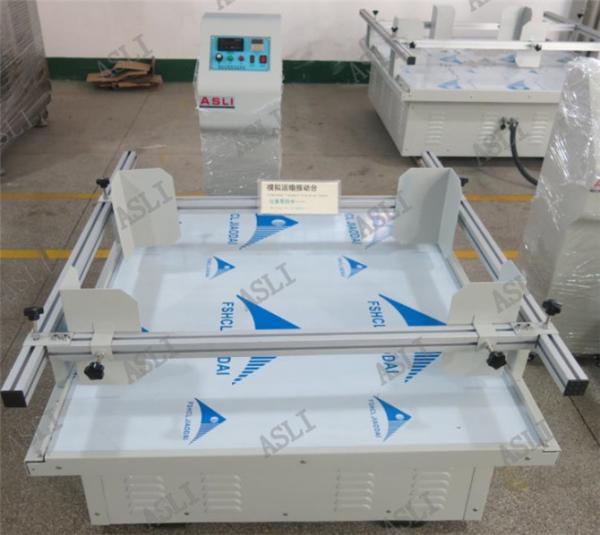

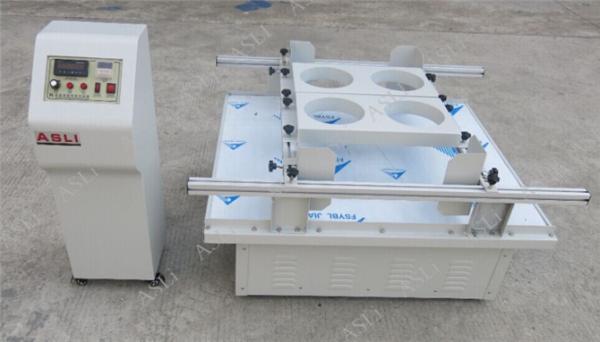

AS-600 Transportation Simulator Vibration Tester

Transportation Vibration Test Bench/Vibrating Table/Lab Testing Equipment

Features of cartons transportation vibrating table :


1. Unique design, easy to use
2. Low noise, with buffering function
3. Frame is powder coating, working table is stainless steel with aluminium alloy rail track

cartons transportation vibrating table of Technical Parameters :

Mode AS-100 AS-200 AS-300 AS-600 AS-1000
Load (Kg) 100 200 300 600 1000
Effective Area WxD(mm) 1200×1000 1200×1000 1200×1300 1300×1400 1500×1500
Weight (Kg) 200 250 350 450 600
External DimensionWxHxD (mm) 1300×650×1300 1300×650×1300 1300×650×1400 1400×750×1500 1600×850×1600
Rotating Speed (RPM) 150~300
Amplitude 25.4mm(1inch), (Accord ASTM.IEC transport standard)
Time Setting (Approx.) 0~999hours
Mode of Vibration Reciprocating type
Power AC220V or according to the equipment specification

automotive sensor simulator tester with Application:


Simulated transport vibration tester is applied to test the vibration-resistance of packed Toys, electronics, furniture, gift, ceramics, equipment,etc., under simulated transport conditions, according to American and EU transport standard (ASTM, IEC).

Transportation Vibration Test Bench / Vibrating Table / Lab Testing Equipment
