Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil
Specifications
Brand Name :
ASLI
Model Number :
ES-20
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
150 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
vibration direction :
Vertical & Horizontal
force :
20KN
displacement :
51mm
application :
LED, AUTO, IC chips
Moving Coil :
30kg
power :
AC380V
Description

Vertical & Horizontal High Frequency Vibration Testing Equipment with 30kg Moving Coil

Application

Vibration test machine/vibration shaker, which high frequency vibration test standard is mainly used for product vibration and shock environmental test environment, environmental stress screening test, reliability test, tests may be needed to do for aerospace, communications, electronics, electrical, communications, home appliances and other areas of the products. It is a test platform that meets all kinds of test specifications, and can be executed including IEC, MIL-STD, JIS, ASTM and other specifications.

Vibration Test Shaker Parameter:

Model

Rated Sine

Force (N)

Rated Random

Force (N)

Frequency

Range (Hz)

 Rated Acceleration (m/s2) Rated Speed (m/s)

Rated displacement

(p-p) mm

 Max. Loading (Kg) moving coil(Kg)

Dimension of

Moving coil (mm)
ES-3 3000 3000 3-3500 1000 1.6 25 100 3.5 Φ150
ES-3a 3000 3000 3-3500 400 1.6 40 120 9 Φ230
ES-6 6000 6000 3-3500 1000 1.6 25 180 6.5 Φ230
ES-6a 6000 6000 3-3500 1000 1.6 51 250 12 Φ230
ES-10 10000 10000 3-3000 1000 1.8 51 270 14 Φ240
ES-20 20000 20000 3-3000 1000 1.8 51 300 30 Φ320
ES-30 30000 30000 3-2800 1000 1.8 5l 450 40 Φ450
ES-40 40000 40000 3-2800 1000 1.8 51 500 50 Φ450
ES-50 50000 50000 3-2700 1000 1.8 51 750 50 Φ450
ES-60 60000 60000 3-2700 1000 1.8 51 750 60 Φ450
ES-100 100000 100000 3-2500 1000 1.8 51 1000 90 Φ450
ES-120 120000 120000 3-2200 1000 1.8 51 1100 90 Φ500
ES-160 160000 160000 3-2100 1000 1.8 51 1500 150 Φ600
ES-200 200000 200000 3-2000 1000 1.8 51 2500 200 Φ650
ES-350 350000 350000 3-1700 1000 1.8 51 4500 300 Φ870

Product features

* Flexible suspension system and straight line guide, strong bearing capacity, good guidance performance and high stability.

* The static stiffness of the central load airbag is large, the dynamic stiffness is small, the bearing capacity is strong, and the dynamic performance is excellent.

* Rapid self-examination diagnosis and chain protection, high safety and reliability;

* The air bag isolating and damping device makes the vibrator do not need the special foundation, perfectly reproduces the vibration wave and reduces the vibration transmission.

* Provide different use of horizontal and vertical expansion platforms;

* It can be used with all kinds of vibration controllers, and the operation is simple.

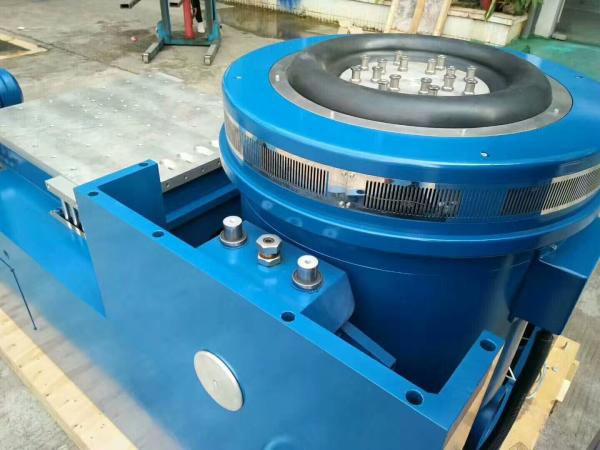

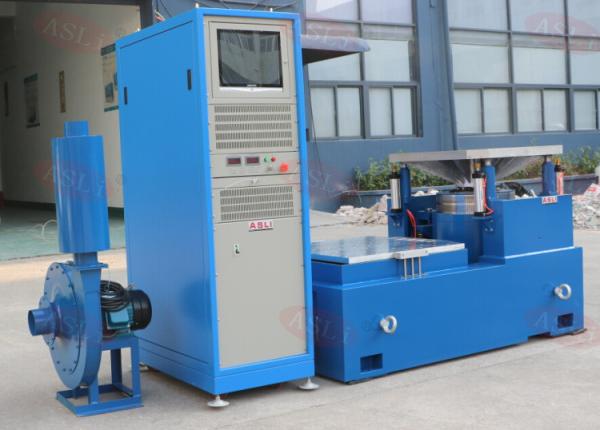

Pictures for reference:

Vertical / Horizontal High Frequency Vibration Test Equipment With 30kg Moving Coil

Any doubt or needs about Vertical & Horizontal High Frequency Vibration Testing Equipment with 30kg Moving Coil, please don't hesitate to contact us. sales8 (at) aslitesting.com
