Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Specifications
Brand Name :
ASLI
Model Number :
SH-120
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
15 workdays
Packaging Details :
wooden case
internal dimension :
W1200*H500*D800mm
volume :
480L
Saline test :
35+/-1 C
Corrosion Test :
50+/-1 C
Saline Capacity :
40L
Compressed Air Pressure :
1.0~6.0 Kgf
spraying method :
Continuous Spraying
application :
fence, Automotive
Description
Automotive Salt Spray Corrosion Testing Equipment/Salt Spray Test Cabinet
Product Description

Corrosion test equipment adapted to the surface treatment of various materials, including paint, electroplating, organic and inorganic coating, anode processing, antirust oil and so on, after these anti-corrosive treatment to test the corrosion resistance of their products.

Parameter:
Model
SH-90
SH-120
SH-160
Internal Dimension WxHxD (mm)
900x500x600
1200x500x800
1600x500x800
External Dimension WxHxD (mm)
1400x1200x900
2100x1400x1300
2300x1400x1300
Lab Temperature
Saline test (NSS ACSS) 35±1 ℃ ;Corrosion Test (CASS)50±1 ℃
Pressure Bucket Temperature
Saline test method (NSS ACSS) 47±1 ℃ / Corrosion Test (CASS)63±1 ℃
Lab Capacity(L)
270
480
640
Saline Capacity(L)
25
40
40
Saline Concentration
5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure(Kgf)
1.0~6.0

Standards of Economical Salt Spray Test Chamber

CNS: 3627, 3385, 4159, 7669, 8886.
JIS: D0201, H8502, H8610, K5400, Z2371.
ISO: 3768, 3769, 3770.
ASTM: 8117, B268.

Salt Spray Test Cabinet Specifications

1. Adopt automatically or manually adding water system, can watered by itself while lack of water.
2. Precise glass spray nozzle, good uniformity, mist dropping naturally, no NaCl crystallized salt
3. Double over-heat protection devise and alarm when water short storage to ensure use safety.
4. Digitally temperature controller, PID controlled, precision of ±0.1℃
5. Laboratory direct steam-heated, even heating speed, reducing the standby time.
6. Tapered Spray tower, even mist dropping
7. Saturated bucket is SUS #304, convenient for heating and humidifying, offer humidity for testing
8. Concentration of NaCl: 5%; PH of the water: 6.5-7.2 (Liquid)

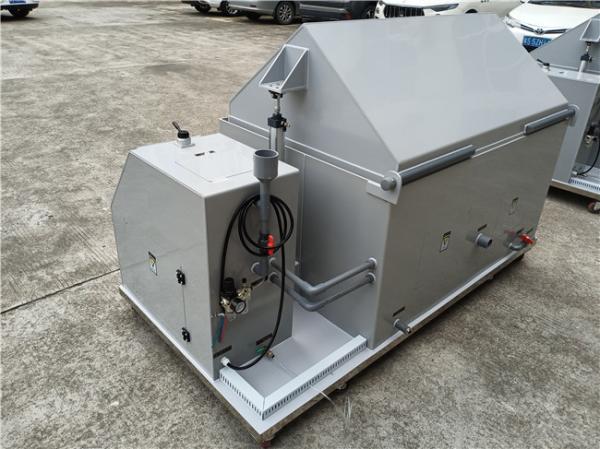

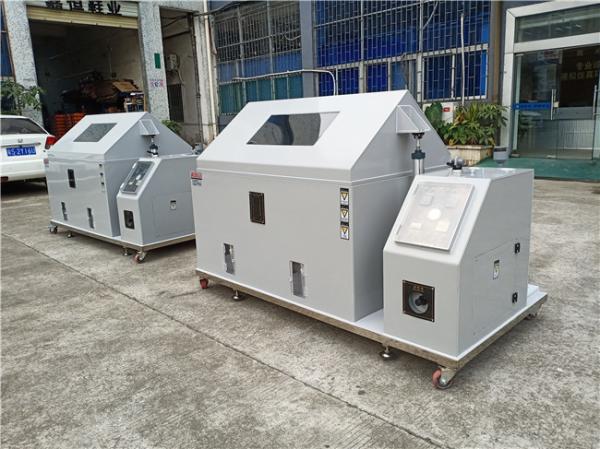

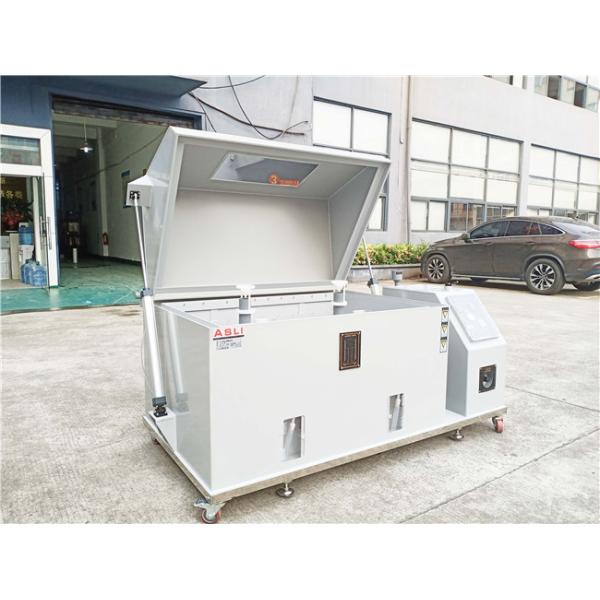

Detailed Images
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment , Salt Spray Test Cabinet
Automotive Salt Spray Corrosion Testing Equipment/Salt Spray Test Cabinet
