Specifications
Brand Name :
ASLI
Model Number :
AS-DT-150
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
sample size :
W1000xH800xD1000mm
drop height :
300~1500mm
standard :
ISO2248, JIS Z0202-87
max. load :
60kg
application :
package
power :
AC380V
Description
Bags Suitcase Carton Drop Test Machine for Package Drop Test
Product Description

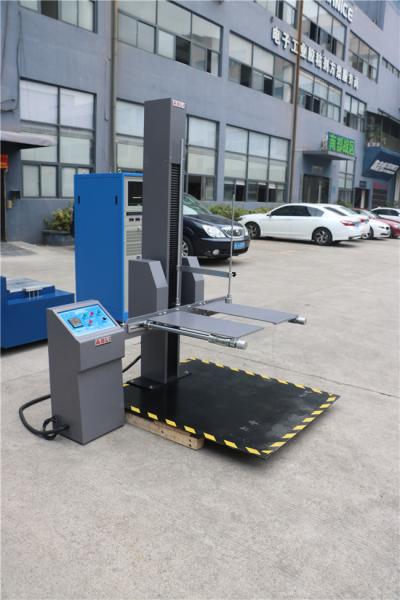

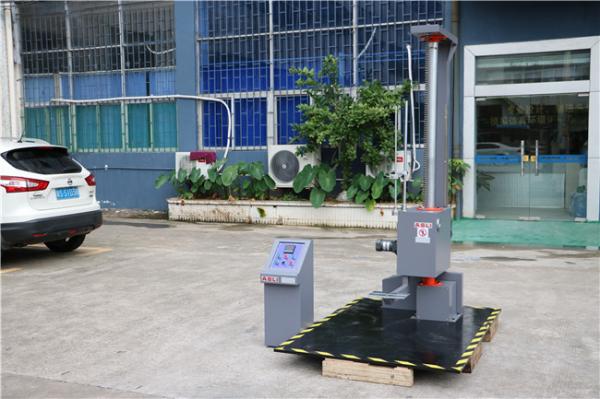

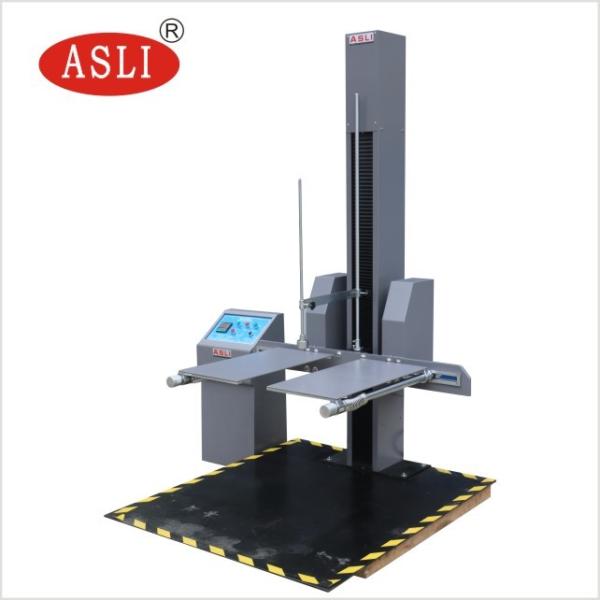

Drop Test Machine for Package Drop Test is used for evaluating the damage and impact resistance when handling and carrying a package, it is to do a free fall test for the area, angle and edge of the package. The tester equipped with a digital height display and decoder to do the height tracking, ensure to calculate a precision fall height, which the error has no greater than 2% or 10mm. The tester use single arm and double column structure, which can electric reset, electronic control and electronic lifting device, easy using and easy to set the sample.

Parameters:
Model
AS-DT-150
Max. Weight of Test Samples (Kg)
100
Height of Drop (mm)
300~1500
Max. Dimension of Test Sample WxHxD (mm)
1000x800x1000
Falling Floor Size WxHxD (mm)
1700x50x1200
Drop Method
Face, edge, angle
Test Bench External Dimension WxHxD (mm)
1700x2300x1200
Weight (Kg)
700

Drop Test Machine Feature

1. Advanced structure ensure that bracket and specimen separate freely and specimen drop freely through bracket rapid downward motion then rotation movement. It delivers perfect test for specimen side, edge and corner.
2. It uses electric reset, electronically controlling falling, electric lifting, which makes it is easy to operate.
3. High Accuracy, direct display
4. It is steady when it is dropping and lifting

Operating procedures

1,Connection: connect the random power line to the three-phase power supply and connect it to the ground. The control box and the test machine are also used randomly.

2 ,Fall height adjustment: open the mainframe power supply, set the test height (method as follows), press the rise key to reach the set height; if stop in the midway, it must make it reach the set height before the reverse operation command can be executed;

3,Put the object on the work table and fix it with a fixed pole.

4,Press the rising key to raise the measured object to the set height.

5,Press the drop key to cause the working table to detached from the object in an instant, and the measured object is free to fall.

6,Press the reset button to restore the working state of the worktable.

7,Repeat the above steps if the test is repeated.

8,After testing: press the lower key to turn the work table to the lowest position to turn off the power button.

Bags Suitcase Carton Drop Test Machine For Package Drop Test

Bags Suitcase Carton Drop Test Machine for Package Drop Test
