Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment
Specifications
Brand Name :
ASLI
Model Number :
TS-80-A
Certification :
CE, ISO , SGS
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
T/T, Western Union
Supply Ability :
50 sets per month
Delivery Time :
20 workdays
Packaging Details :
wooden case
internal dimension :
W500*H400*D400mm
uniformity :
+/-2.5 Deg C
material :
SUS304 stainless steel
testing door :
Single door
communication interface :
RS232, RS485
Description
Thermal Shock Test for Glass/Environmental Thermal Cycling Test Equipment
Product Description

Environmental Test Equipment is also called hot and cold impact testing machine, hot and cold impact machine, temperature impact test box, used to test the material structure or composite materials, in a moment by very high temperature and very low temperature of the continuous environment some can endure the extent, reflected in the shortest possible time to test its thermal expansion caused by chemical changes or physical damage.



The applicable objects include metals, plastics, rubber, electronic materials, etc., which can be used as the basis or reference for the improvement of their products.

Model
TS-80(A~C)
Internal Dimension WxHxD (mm)
500x400x400
External Dimension WxHxD (mm)
1550x1950x1550
Temperature Range of Testing zone
Type A:-40 ℃~+150℃ ( 200℃ is Optional)
Type B:-55℃ ~+150℃ ( 200℃ is Optional )
Type C:-65℃ ~+150℃ ( 200℃ is Optional)
Exposure Time of High/Low Temperature
Exposure Time of High Temperature: +60℃ ~ +150℃ (200℃ is Optional) 30Mins
Exposure Time of Low Temperature : -10℃~Type A:-40℃ / Type B -55℃ / Type C -65℃ 30Mins
Temperature of Heat-Storing Slot / Heating Time
RT~200℃/About 45mins
Internal and External Material
Material of the inner box is SUS 304# stainless steel,of the outer box is stainless steel or see cold-rolled steel with paint coated.
Insulation Material
High temperature resistant , high density , formate chlorine , ethyl acetum foam insulation materials

Thermal Shock Test for Glass Features

1. Use the aluminum piece to verify the machine load capacity (not plastic load)

2. sensor placement test area rather than the wind crossing, in line with the effectiveness of the experiment

3. The temperature box impact is the test area humidity conforms to the standard requirements


4. can expand the surface temperature of the product to be measured, control the dwell time to shorten the test time

5. can be directly a number of international norms and test conditions

6. Execute low temperature 0 degree impact and save electricity

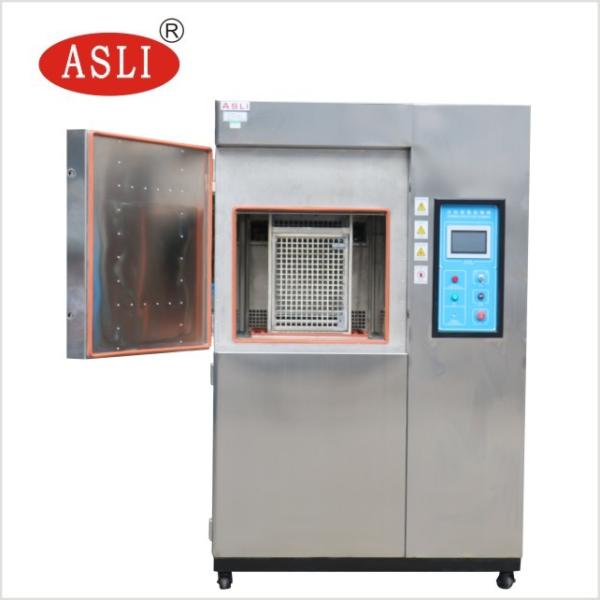

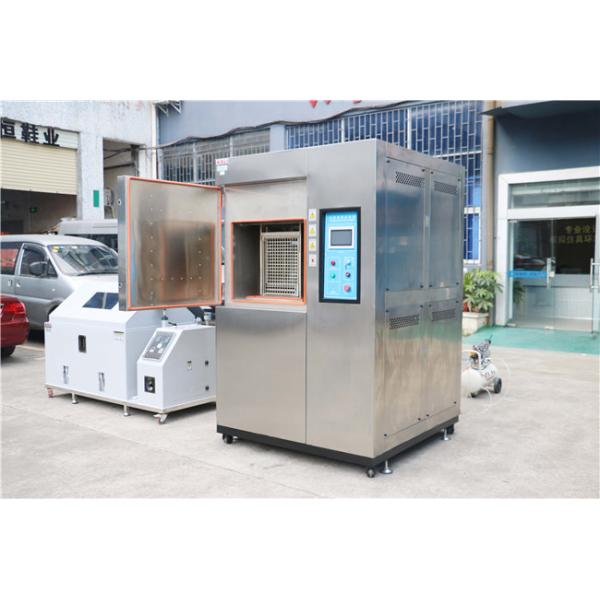

Pictures for reference:

Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment

Thermal Shock Test Chamber For Glass / Environmental Thermal Cycling Test Equipment

Thermal Shock Test for Glass/Environmental Thermal Cycling Test Equipment
