IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
Specifications
Brand Name :
ASLI
Model Number :
THR-Volume
Certification :
CE, ISO,SGS, BV
Place of Origin :
CHINA
MOQ :
1 Set
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
100 sets per quarter
Delivery Time :
50 workdays
Packaging Details :
export wooden case
Humidity range :
20%~98%RH
Temperature range :
-40℃/-70℃~+150℃
Controller :
Programmable LCD Touch Screen
Cooling time :
About 4.0℃/minute;about 0.7℃~1.0℃/minute
Interior material :
Stainless Steel Plate(SUS 304)
application :
fiber optic cable
Description

humidity and temperature test chamber THR-8000-B.p...

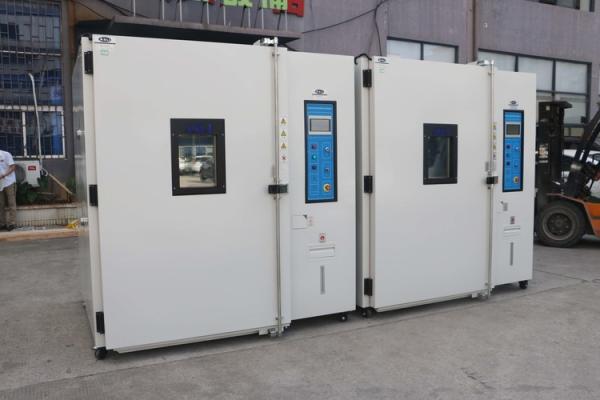

IEC 60794 standard walk-in damp heat temperature humidity cyclic test room for fiber optic cable

Product Description

Customized Walk In Climate Chamber Temperature Humidity Chamber Price is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Customized Walk In Climate Chamber Temperature Humidity Chamber Price Technical Parameters:

Model
THR-volume (low-temperature options : A ~ F)
Inner Dimensions(cm)
Customers designated space size and design
Temperature Range
Low Temperature(A:25℃ B:0℃ C:-20℃ D:-40℃ E:-60℃ F:-70℃) High Temperature 80℃ (80℃ ~150℃ is optional)
Humidity Range
20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier)
Control Accuracy of Temperature and Humidity
±0.5℃; ±2.5% R.H.
Temperature Rising/Falling Velocity
Temperature rising approx. 0.1~3.0°C/min
temperature falling approx. 0.1~1.0°C/min;
( The Falling Velocity Min.1.0°C /min is a optional)
Cooling System
Water cooled
Optional Accessories
Slope for cart , Recorder, Water Purifier, Dehumidifier
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable

Customized Walk In Climate Chamber Temperature Humidity Chamber Price Features:

1. Graceful appearance, circularly shaped body, surface treated with mist strips . Easy to operate, safe and reliable.
2. Rectangular double-paned viewing window for viewing sample under test, with interior light
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5.French Tecumseh is used as compressor, with environment friendly refrigeration R23 or R404A
6. LCD display screen, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, with quick or ramp rates control of temperature and humidity.
8. Casters are provided for ease of mobility, with strong positioning screws.

Related Products
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable

Temperature Humidity Test Chamber

Thermal Shock Test Chamber

High Frequency Vibration Tester

Company Profile

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. custom large low and high temperature walk in cold room testing chamber for industrial product test is our star products , and we had obtained the CE certification for this machine .

IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable
IEC 60794 Walk In Damp Heat Temperature Humidity Cyclic Test For Fiber Optic Cable

If you need more information about IEC 60794 standard walk-in damp heat temperature humidity cyclic test room for fiber optic cable, please feel free to contact us
