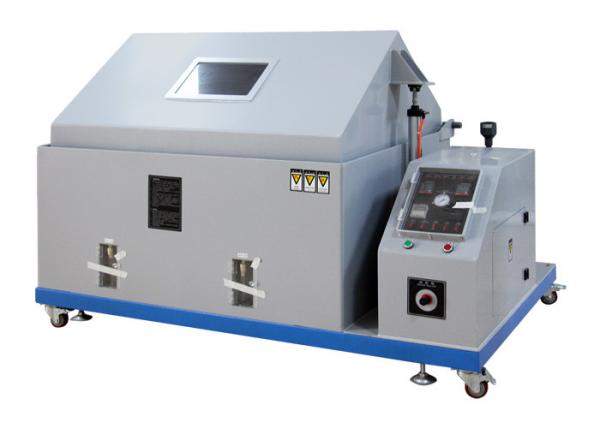

CASS Corrosion Salt Spray Test Chamber , Automotive / Paint / Aerospace Salt Spray Testing Equipment
CASS Corrosion Salt Spray Test Chamber , Automotive / Paint / Aerospace Salt Spray Testing Equipment
CASS Corrosion Salt Spray Test Chamber , Automotive / Paint / Aerospace Salt Spray Testing Equipment
CASS Corrosion Salt Spray Test Chamber , Automotive / Paint / Aerospace Salt Spray Testing Equipment
Specifications
Brand Name :
SANWOOD
Model Number :
SM-Y-90D
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
5-7 weeks per month
Packaging Details :
Wooden case
Humidity control range :
20.0%RH～95.0%RH
Humidity fluctuation :
±1.5% RH
Humidity uniformity :
±3.0％RH
Internal material :
Stainless steel(SUS304)
External material :
Cold rolled steel sheet / powder spraying
Fan :
Centrifugal blower
Description

CASS Corrosion Salt Spray Test Chamber , Automotive / Paint / Aerospace Salt Spray Testing Equipment

Features:


1, QSS-270 chamber material is made of P.V.C Sheet, sturdily and will not be out of shape.


2, QSS-270 test chamber is heated from five directions to ensure the temperature is uniformity distributed.


3, QSS-270 spray nozzle is specially made, enable to spray the salt water with considerable speed, then falls on the surface of samples.


4, Hot and moist air keeps the humidity in the QSS-270 test chamber conforms testing request.


5, High precision P.I.D. temperature controller limits the temperature difference within the range of ±0.1℃QSS-270.


QSS-270 Specifications:


Ambient Temp. and Humid. Range: +5℃ ~ +35℃ / <85%RH


Testing Temperature: NSS ACSS 35℃±1℃ / CASS 50℃±1℃


Air Temperature: NSS ACSS 47℃±1℃ /CASS 63℃±1℃


Solution Consistence: NaCi 5%


PH Value: NASS ACSS 6.5~7.2; CASS 3.0~3.2


Temperature Fluctuation: ≦±0.5℃


Temperature Uniformity: ≦2. 0℃


Temperature Deviation: ≦±2.0℃


Spray Quantum: 1.0~2.0(ml/80cm2/h)


Chamber Material: Polyvinyl chloride (PVC)


Heater: Corrosion-resistant titanium tube


Temperature Sensor: Platinum Resistance (PT-100)


Safety Device: Over-temperature protection , leakage protection

Specification:

Model SM-Y-60D SM-Y-90D SM-Y-120D SM-Y-160D SM-Y-200D
Inner size W 600 900 1200 1600 2000
D 450 600 850 1000 1200
H 400 500 500 550 600
Outer size W 1130 1460 2200 2600 3000
D 630 910 1200 1450 1650
H 1070 1280 1450 1550 1600
Testing room volume(L) 108 270 480 800 1440
Brine tank capacity(L) 15 25 40
Max current(A) 5 12 15 18 22
Max Consumption Power(KW) 1.5 2.5 3.5 5 7
Power supply AC220V,50HZ AC380V,50HZ
Operating ambient temperature, humidity <35℃,<85%RH
Testing room temperature Brine test method(NSS ACSS)35℃±1℃/Erosion-resistant testing method (CASS)50℃±1℃
Pressure Pot Temperature Brine test method(NSS ACSS)47℃±1℃/Erosion-resistant testing method(CASS)63℃±1℃
Brine solubility 5% Sodium Chloride Solution or add 0.26 grams copper dichloride in the 5% Sodium
Chloride Solution per liter (CuCl2 2H2O)
PH 6.5~7.2 3.0~3.2
Compressed air pressure 1.00±0.01kgf/cm2
Spraying amount 1.0~2.0ml/80cm2/h (Collect 16 hours at least, take their average)
Inside and outside material Imported corrosion resistant, anti-aging, high strength PVC board
Heater Corrosion resistance U type titanium tube
Temperature controller LED digital display temperature controller, touch screen controller
Spraying mode Continuous,intermittent spraying
Defrosting device No Yes
Safety device Over temperature protection switch, leakage protection, status warning lamp

Product Catalog:

Salt Spraying Chamber.pdf
