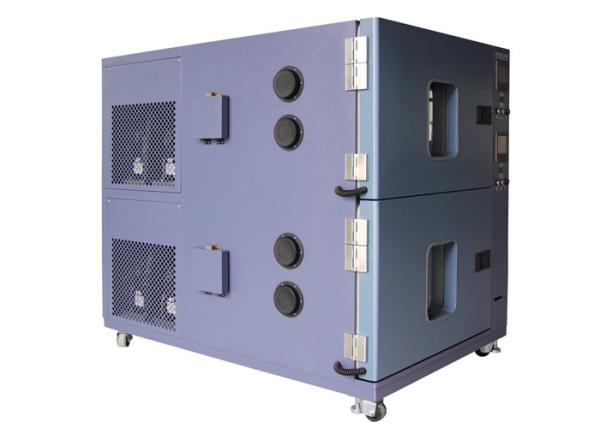

Constant Climatic Temperature Humidity Chamber Double Layer Insulated Airtight Doors
Constant Climatic Temperature Humidity Chamber Double Layer Insulated Airtight Doors
Specifications
Brand Name :
SANWOOD
Model Number :
SM Ser ies
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
As you like
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Temperature control range :
-70℃～180℃
Temperature fluctuation :
±0.5℃
Humidity control range :
10.0%RH～98.0%RH
Humidity fluctuation :
±1.0% RH
Humidity uniformity :
±2.0％RH
Fan :
Centrifugal blower
Description

Programmable constant climatic humidity temperatue chamber

Programmable constant climatic humidity temperatue chamber Features :

1. Graceful appearance, circularly shaped body, surface treated with mist strips,.

2.Rectangular double-paned viewing window for the observation of sample under test,with interior lights.

3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and

automatically recyclable.

5. French Tecumseh brand is used as compressor, with environment friendly refrigeration R23,R404A.

6. LCD display screen is used for the control unit, capable of displaying set point and actual value at the same time

7. The control unit has the functions of multiples segment program editing, and of quick or ramp rates control of

temperature and humidity.

8. Casters are provided for ease of mobility, with strong positioning screws.

Programmable constant climatic humidity temperatue chamber Applications:

constant temperature and humidity stability Test Chamber used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for for all types of electronic products,electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical,building materials, medical and aerospace industries.

Model SMC-80-CC-FB SMC-150-CC-FB SMC-225-CC-FB SMC-408-CC-FB SMC-800-CC-FB SMC-1000-CC-FB SMC-1500-CC-FB
Temperature Temperature control
range		 -70℃～180℃
(A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃)
Temperature fluctuation ±0.5℃
Cooling rate 180.0℃～-70.0℃ Within 100 mins
1.0～3.0℃/min
Heating rate -70.0℃～180.0℃ Within 60 mins
3.0～5.0℃/min
Temperature uniformity ±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
Humidity Humidity control range 10.0%RH～98.0%RH (60℃ above corresponds to 10%RH)
Humidity fluctuation ±1.0% RH
Humidity uniformity ±2.0％RH
Material /
components		 Internal material Adopts 1.2mm thickness stainess steel(SUS304)
External material Adopts 1.2mm thickness Cold rolled steel sheet / powder spraying
Heat insulating material 100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan Centrifugal blower
Compressor Semi-closed Germany Bock, Germany Bitzer
Condenser Air cooling, water cooling
Refrigerant R404A,R23,R508
Evaporator Fin - and - Tube Heat Exchanger
Heater Nickel chromium alloy heating wire
Humidifier Steam humidifier
Options Standard configuration 2 ∅100MM pressure relief port, 4 explosion-prood chains
Multipoint temperature
monitor		 Adopts Sanwood developed controller, which can be used to acquire surface temperature points of multiple products
C02 fire extinguisher Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
C0, H2 gas detector When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard
Exhaust valve When the test sample produces harmful gas, ventilate and exhaust internally
Size Interior size(mm)
W*H*D

500*500

*400

500*600

*500

500*750

*600

800*850

*600

1000*1000

*800

1000*1000

*1000

1200*1000

*1250
Outer size(mm)
W*H*D

700*1680

*1180

700*1720

*1275

700*1930

*1290

1000*2050

*1400

1200*2100

*1590

1200*100

*1780

1400*2100

*2030
Volume(m³) 80L 150L 225L 408L 800L 1000L 1500L
Weight 280 380 450 620 680 840 955
Operating ambient temperature +5 ~ 35℃
Power supply 220V AC 50/60Hz 22A 220V AC 50/60Hz 31A 220V AC 50/60Hz 33A 380V AC 50/60Hz 17A 380V AC 50/60Hz 25A 380V AC 50/60Hz 27A 380V AC 50/60Hz 50A
Controller

Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700

Constant Climatic Temperature Humidity Chamber Double Layer Insulated Airtight Doors

Constant Climatic Temperature Humidity Chamber Double Layer Insulated Airtight Doors

Product Catalog:

Temperature and Humidity Test Chamber .pdf
