Powder Spraying Walk In Chamber Cold Rolled Steel Sheet External Material
Powder Spraying Walk In Chamber Cold Rolled Steel Sheet External Material
Specifications
Brand Name :
SANWOOD
Model Number :
SM-0WT
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
AS YOU LIKE
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Internal material :
Stainless steel(SUS304)
External material :
Cold rolled steel sheet / powder spraying
Heat insulating material :
100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan :
Centrifugal blower
Compressor :
Semi-closed Germany Bock, Germany Bitzer
Condenser :
Water-cooled
Description

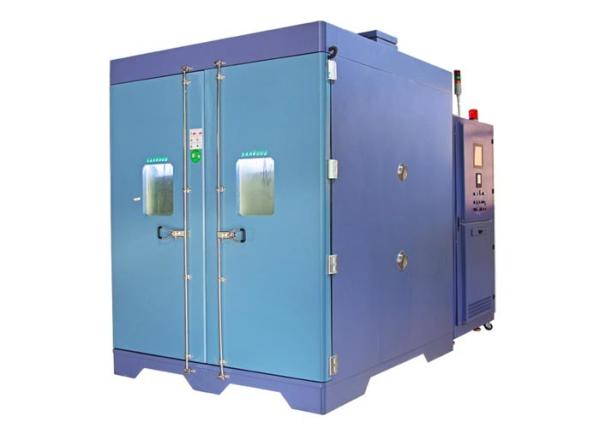

Programmable Climate Test Walk-In Environmental Test Chamber

Especially designed for steady-state operation

Stability walk-in rooms are designed for light-duty testing or long-term steady-state evaluation of pharmaceuticals and other products.

Powder Spraying Walk In Chamber Cold Rolled Steel Sheet External Material

Powder Spraying Walk In Chamber Cold Rolled Steel Sheet External Material

Powder Spraying Walk In Chamber Cold Rolled Steel Sheet External Material

Walk-In Chamber Model

SMC-

1800-CC

SMC-

2520-CC

SMC-

3600-CC

SMC-

3960-CC

SMC-

5000-CC

SMC-

080-WT

SMC-

120-WT

SMC-

160-WT

SMC-

250-WT

SMC-

340-WT

SMC-

400-WT
Chamber Volume Litre 1800L 2520L 3600L 3960L 5000L 8.0m³ 12.0m³ 16.0m³ 25.0m³ 34.0m³ 40.0m³
Temperature Range ℃ -75℃～+180℃(Built as whole unit)
(A:0℃;B-20℃;C-40℃;D-75℃)		 -60℃～+80℃/+100℃(Built as panel and assembly onsite )
(A:0℃;B-20℃;C-40℃;D-60℃)
Humidity Range %R.H 10-98 20-98
Dew-point
Temperature		 ℃ +10-+95 +20-+85
Dew-point
Temperature Range		 ℃ +4(-3℃)-+94
Humidity
Fluctuation		 %r.h ±1.0-±3.0 ±1.0-±5.0
Temperature
Change		 ℃ Fluctuation±0.1-±0.5,Uniformity±0.5±2.0 Fluctuation±0.1-±1.5,Uniformity±0.5±3.0
Heating rate ℃/min 3.0℃～+5.0℃ 3.0℃～+5.0℃
Cooling rate ℃/min -1.0℃～+2.0℃ -0.7℃～+1.5℃
Internal Dimension Width mm 1000 1200 1200 1200 1500 1970 3020 4070 3020 4070 5120
Deepth mm 1200 1400 1500 1500 1800 1970 1970 1970 4070 4070 4070
Height mm 1500 1500 2000 2200 1850 2100 2100 2100 2100 2100 2100
External Dimension Width mm 1250 1450 1450 1450 1750 2900 3920 4970 3920 4970 6020
Deepth mm 2400 2600 2700 2700 3000 2300 2300 2300 4370 4370 4370
Height mm 1700 1700 2200 2400 2050 2400 2400 2400 2400 2400 2400
Power 400V±10%,3/N/PE,50HZ
Rated power Kw 16.8 19.8 21.8 22.5 23.5 21.8 23.5 26.5 29.5 31.5 33.5
Soundlevel dB(A) 65 65 65 65 65 65 65 65 70 70 70
