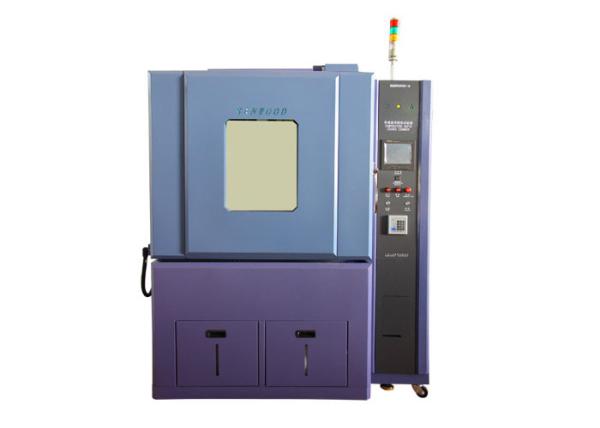

Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber
Specifications
Brand Name :
SANWOOD
Model Number :
SM-KS-CB series
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-8 weeks
Packaging Details :
Wooden case
Ramp rate :
10°C/min
Temp. range :
-70℃~+180℃
Working volume :
80L ~ 1000L
Material :
Stainless steel
Compressor :
Semi-closed Germany Bock, Germany Bitzer
Condenser :
Water cooling
Description

Durable Environmental Stress Screening Test Chamber

10℃/min Ramp. Rate Temperature Change ESS Chamber

Rapid Temperature Change Test Chamber / ESS Chamber introduction

Environmental Stress Screening Test Chamber, also name as ESS chamber, Rapid Temperature change rate test chamber, is to change the external environmental stress by using the temperature acceleration technique (the product produces alternating expansion and contraction when circulating in the upper and lower extreme temperatures) under the design strength limit, so as to generate thermal stress and strain in the product.

Sanwood Rapid Temperature Change Rate Test chamber is applied to find hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid temperature change conditions.

Rapid Temperature Change Test Chamber / ESS Chamber Standard Compliance

GB/T10586-2006 Specifications for damp heat chambers

GB/T10592-1989 Specification for low/high temperature test chambers

GB/T5170.2-1996 Inspection methods for basic parameters of environmental testing equipments for electric and electronic products. Temperature testing equipments;

GB/T5170.5-1996 Inspection on methods for basic parameters of environmental testing equipments for electric and electronic products--Damp heat testing equipments

Environmental Stress Screening Test Chamber 10℃/min Ramp. Rate ESS Chamber

Model

 SM-KS-80-CB SM-KS-150-CB SM-KS-225-CB SM-KS-408-CB SM-KS-800-CB SM-KS-1000-CB SM-KS-1500-CB
Temperature Temperature control
range		 -70℃～180℃
Temperature fluctuation ±0.5℃
Cooling rate 155.0℃～-65.0℃ (linear or nonlinear:10.0℃/min)
Heating rate -65.0℃～155.0℃ (linear or nonlinear:10.0℃/min)
Temperature uniformity ±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
Humidity Humidity control range 20.0%RH～98.0%RH
Humidity fluctuation ±1.0% RH
Humidity uniformity ±2.0％RH
Material /
components		 Internal material Adopts 1.2mm thickness stainess steel(SUS304)
External material Adopts 1.5mm thickness Cold rolled steel sheet / powder spraying
Heat insulating material 100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan Centrifugal blower

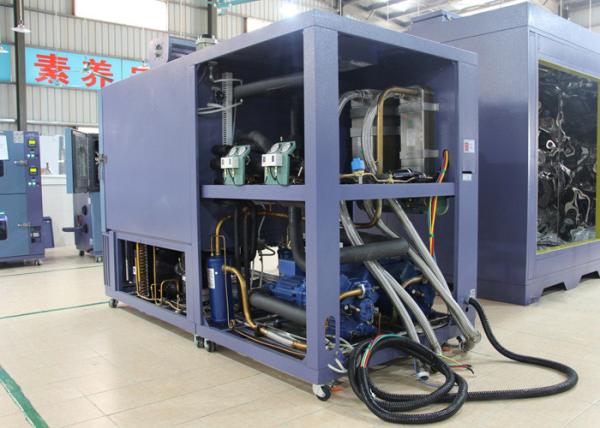

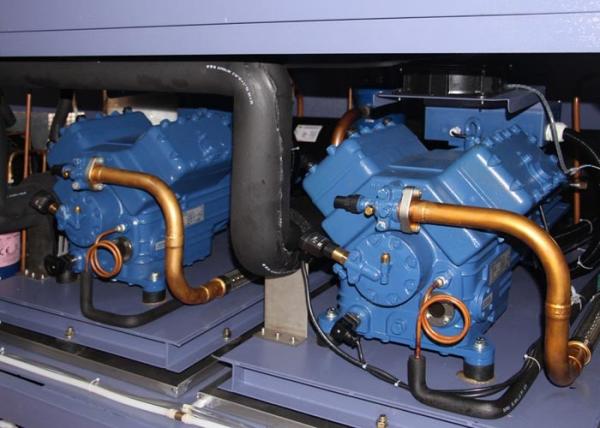

Compressor Semi-closed Germany Bock, Germany Bitzer
Condenser Air cooling, water cooling
Refrigerant R404A,R23,R508
Evaporator Fin - and - Tube Heat Exchanger
Heater Nickel chromium alloy heating wire
Humidifier Steam humidifier
Size Interior size(mm)
W*H*D

500*500*

400

500*600*

500

500*750*

600

800*850*

600

1000*1000*

800

1000*1000*

1000

1200*1000

*1250
Volume(L) 80L 150L 225L 408L 800L 1000L 1500L
Operating ambient temperature +5 ~ 35℃
Safety Adjustable over temperature protection, heater dry burning over temperature protection, humidifier dry burning, over temperature protection, automatic stop operation when troubles occur. Leakage protection function cuts off main power supply
Power supply 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz
Controller

Standard: Sanwood customized controller, programmable with RS232/RS485 port

Optional: South Korea TEMI-1500, TEMI-2500, TEMI-27
