Environmental Test Chamber Rapid Temperature Change Rate

ESS Chamber for Electric Products Environmental test

Rapid Temperature change rate test chamber, also name as ESS chamber, Environmental Stress Screening Test Chamber, is to change the external environmental stress by using the temperature acceleration technique (the product produces alternating expansion and contraction when circulating in the upper and lower extreme temperatures) under the design strength limit, so as to generate thermal stress and strain in the product.

In the earlier days of ESS, environmental chambers offered air temperature cycling transition rates on the order of 5°C per minute. This transition rate was often referred to as "average" by most chamber manufacturers. In reality, during an average rate temperature transition, the

air temperature rate of change may vary greatly from the average rate.

For temperature pulldowns with mechanical cooling, dT/dt will be much greater than the average in the early stages of the pulldown and much below the average as the low temperature extreme is approached. When plotted out, the time/temperature relationship is a curve with a steeper slope at the beginning of the pulldown and a flatter slope at the end, but nevertheless resulting in some average transition rate for the complete pulldown.

Environmental Test Chamber for Rapid Temperature Changes / ESS Chamber features:

1.Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.

2. Rectangular viewing window for the observation of product under test, equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.

3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

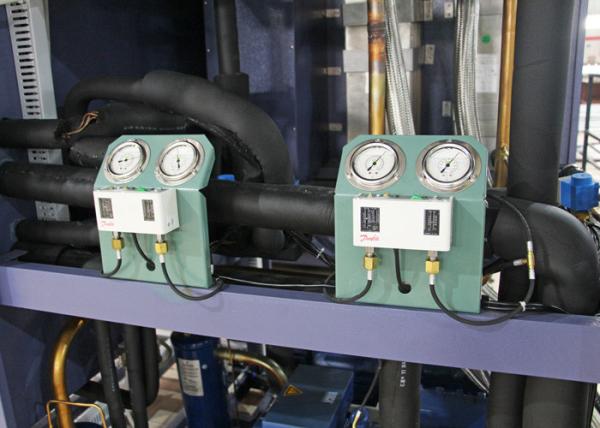

5. French Tecumseh is used for the compressor circulation system, capable of removing the lubricant between thecondensation pipes and capillaries. environment friendly coolant is (R23,R404A)

6.LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and with temperature ramp

8. Casters for ease of mobility, with strong positioning screws.
