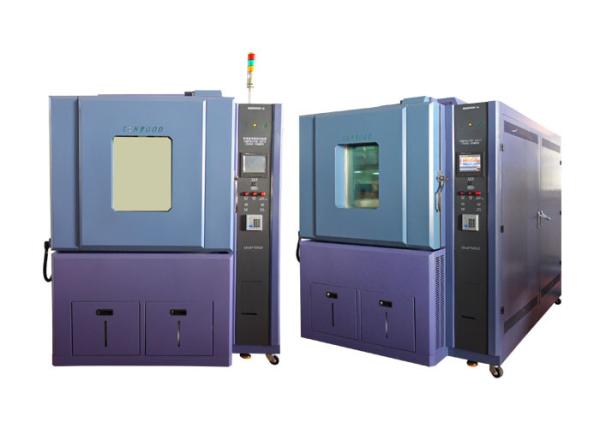

Electronic Products High Low Temperature Chamber Temperature Alternating Test Machine
Electronic Products High Low Temperature Chamber Temperature Alternating Test Machine
Specifications
Brand Name :
SANWOOD
Model Number :
SM-KS-Series
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Evaporator :
Fin - and - Tube Heat Exchanger
Interior size(mm) W*H*D :
1000*1000*800
Safety :
Adjustable over temperature protection, heater dry burning over temperature protection, humidifier dry burning, over temperature protection, automatic stop operation when troubles occur. Leakage protection function cuts off main power supply
Power supply :
380V AC 50/60Hz
Controller :
Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700
Heat insulating material :
100mm thickness polyurethane plate＋10mm thickness mineral wool
Description

High LowTemperature Test/ Temperature Alternating Test Machine

Applications

1) This equipment mainly used for electric and electronic products, components and other materialshigh low temperature test, temperature change, damp heat etc. Environment simulate reliability test.

2) Other usage except this may cause personal injuries and machinery damages.

Limitation

1) Inflammable, explosive, easy volatile specimen test and storage.

2) Corrosive material and biological specimen test and storage .

3)Strong electromagnetic source specimen test and storage.

Model SM-KS-80-CC SM-KS-150-CC SM-KS-225-CC SM-KS-408-CC SM-KS-800-CC SM-KS-1000-CC SM-KS-1500-CC
Temperature Temperature control
range		 -70℃～180℃
(A:5℃/min;B:10℃/min；C:15℃/min;D:20℃/min)
Temperature fluctuation ±0.5℃
Cooling rate 155.0℃～-65.0℃ (linear or nonlinear:5.0℃,10.0℃,15.0℃,20.0℃/min)
Heating rate -65.0℃～155.0℃ (linear or nonlinear:5.0℃,10.0℃,15.0℃,20.0℃/min)
Temperature uniformity ±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
Humidity Humidity control range 10.0%RH～98.0%RH(60℃ above corresponds to 10%RH)
Humidity fluctuation ±1.0% RH
Humidity uniformity ±2.0％RH
Material /
components		 Internal material Adopts 1.2mm thickness stainess steel(SUS304)
External material Adopts 1.5mm thickness Cold rolled steel sheet / powder spraying
Heat insulating material 100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan Centrifugal blower
Compressor Semi-closed Germany Bock, Germany Bitzer
Condenser Air cooling, water cooling
Refrigerant R404A,R23,R508
Evaporator Fin - and - Tube Heat Exchanger
Heater Nickel chromium alloy heating wire
Humidifier Steam humidifier
Size Interior size(mm)
W*H*D

500*500

*400

500*600

*500

500*750

*600

800*850

*600

1000*1000

*800

1000*1000

*1000

1200*1000

*1250
Volume(L) 80L 150L 225L 408L 800L 1000L 1500L
Operating ambient temperature +5 ~ 35℃
Safety Adjustable over temperature protection, heater dry burning over temperature protection, humidifier dry burning, over temperature protection, automatic stop operation when troubles occur. Leakage protection function cuts off main power supply
Power supply 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz 380V AC 50/60Hz
Controller Standard: South Korea TEMI-1500 Optional: South Korea TEMI-2500,South Korea TEMI-2700

Product Catalog:

Rapid Temperature Change Test Chamber.pdf
