Specifications
Brand Name :
SANWOOD
Model Number :
SM-KS-225-CA
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Humidifier :
Steam humidifier
Heater :
Nickel chromium alloy heating wire
Evaporator :
Fin - and - Tube Heat Exchanger
Refrigerant :
R404A、R23、R508
Condenser :
Air cooling, water cooling
Compressor :
Semi-closed Germany Bock, Germany Bitzer
Description

Environmental Stress Screening Chamber ESS Test Chamber

For Industries Products Reliability Stability Verification


Environmental Stress Screen Chamber Applications:
Sanwood Environmental stress screening test chamber, also name as ESS chamber, Rapid temperature change rate test chamber is widely applied for electronic and electric products, components and materials by constant high low temperature, temperature change , rapid rate temperature change ,damp heat etc environmental simulation reliability test .

ESS Chamber Standard Compliance

GB/2423.1-2008 (IEC60068-2-1:2007) low temperature test method AB.

GB/T5170.5-2008 damp heat test equipment.

GJBl50.4 (MIL-STD-810D) low temperature test method.

GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.

GB2423.4-93 (IEC68-2-30) Test Db: Alternating Damp Heat Test Method

ESS Chamber features:

1.Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction.

Easy to operate, safe and reliable.

2. Rectangular viewing window for the observation of product under test, equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.

3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

5. French Tecumseh is used for the compressor circulation system, capable of removing the lubricant between thecondensation pipes and capillaries. environment friendly coolant is (R23,R404A)

6.LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and with temperature ramp

8. Casters for ease of mobility, with strong positioning screws.

Environmental Stress Screening Chamber ESS Test Chamber For Industries Products Reliability Stability Verification

ESS Chamber technical parameters

Model SM-KS-225-CA
Temp. range

-70°C ～180°C
Temperature fluctuation ±0.5°C
Temperature uniformity ≤±2.0°C
Heating Rate -40°C ～+120°C heating rate 3.0℃/min
Cooling rate 120°C ～ -40°C cooling rate 3.0℃/min;
Humidity control range 10%RH ~ 98%RH
Interior material Stainless Steel Plate ( SUS 304)
Exterior material A3 plate with power coating. Color can be customized
Inner size (WxHxD) mm 500x750x600
External size (WxHxD) mm 700x1930x1290
Ambient Temp. +5°C ～+35°C
Power supply 380V AC, 50Hz/60Hz three phase
Sample holder 2 pcs

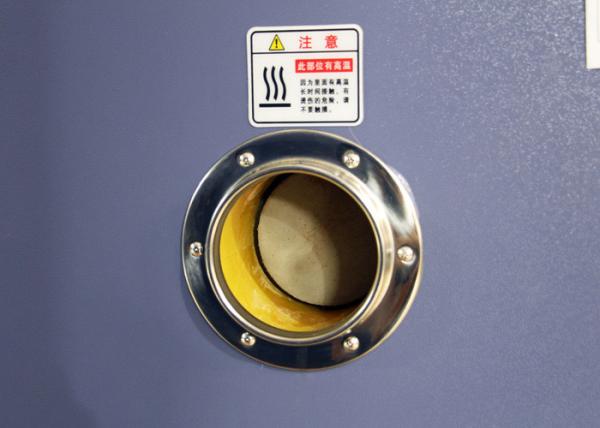

Fittings cable port(portΦ100mm) x2 (Size and quantity can be customized)
Safety device (standard)

Over temperature protection; heater over-circuit protection;

Compressor motor over-heat protection; compressor over-load protection;

compressor over-heat protection; circulation fan over-load protection, etc.

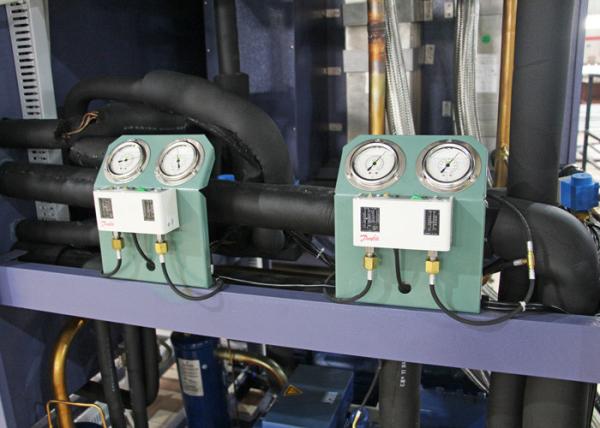

Refrigeration system Air Cooled (Water Cooled is option)
Hermetic compressor
R404, R23 (Option: R449A, R508)
Controller 5'7-inch LCD Touch Screen panel
Operation model :Program or fix point running
Memory capacity :120programs,1200steps,
All repeat 999 cycles, part repeat 99 cycles

Note:

1. We reserve the right to change specifications without prior notice

2. Customized sizes and configurations available.
