Specifications
Brand Name :
SANWOOD
Model Number :
SM-KS-408-CB
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Refrigerant :
R404A、R23、R508
Evaporator :
Fin - and - Tube Heat Exchanger
Condenser :
Air cooling, water cooling
Compressor :
Semi-closed Germany Bock, Germany Bitzer
Fan :
Centrifugal blower
Heat insulating material :
100mm thickness polyurethane plate＋10mm thickness mineral wool
Description

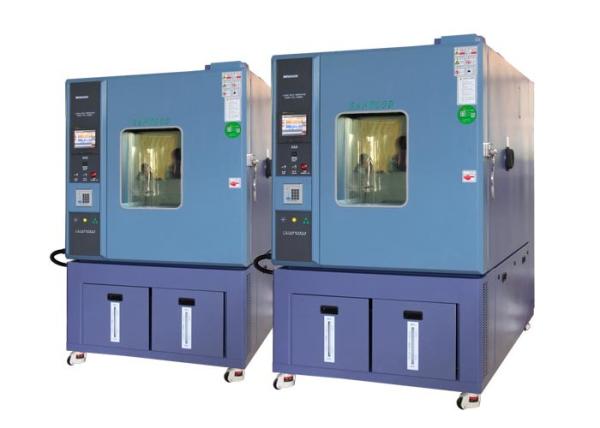

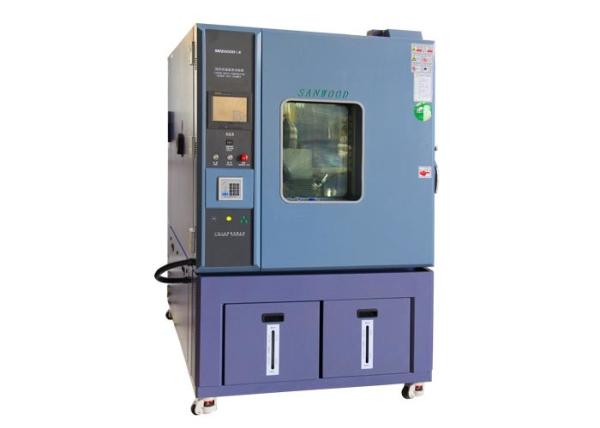

Precision Rapid Temperature Ramp. Rate Test Chamber

10C/min Energy Saving Fire Resistant Humidity Control for Automotive

Sanwood environmental stress screening test chamber, also name as rapid temperature change rate test chamber, ESS chamber, is to change the external environmental stress by using the temperature acceleration technique (the product produces alternating expansion and contraction when circulating in the upper and lower extreme temperatures) under the design strength limit, so as to generate thermal stress and strain in the product.

Through accelerated stress to underlie the drawbacks of products emerge [potential parts material defects, process defect, process defects], in order to avoid the product in use process, by the test of environmental stress and sometimes lead to failure, cause unnecessary loss, to improve the product yield and reduce delivery times has a significant effect of repair, additional stress screen itself is a kind of process stages of the process, rather than as a reliability test, so the stress screening is 100% to the application of products

Rapid Temperature Change Test Chamber / ESS Chamber Standard Compliance

GB/2423.1-2008 (IEC60068-2-1:2007) low temperature test method AB.

GB/T5170.5-2008 damp heat test equipment.

GJBl50.4 (MIL-STD-810D) low temperature test method.

GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.

GB2423.4-93 (IEC68-2-30) Test Db: Alternating Damp Heat Test Method

Rapid Temperature Change Test Chamber / ESS Chamber features:

1.Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction.

Easy to operate, safe and reliable.

2. Rectangular viewing window for the observation of product under test, equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.

3.Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.

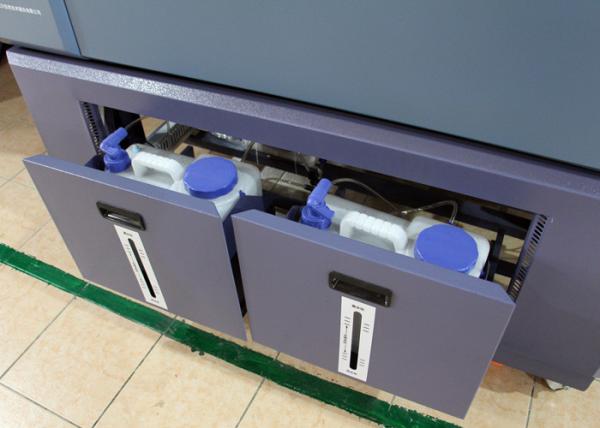

4.Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.

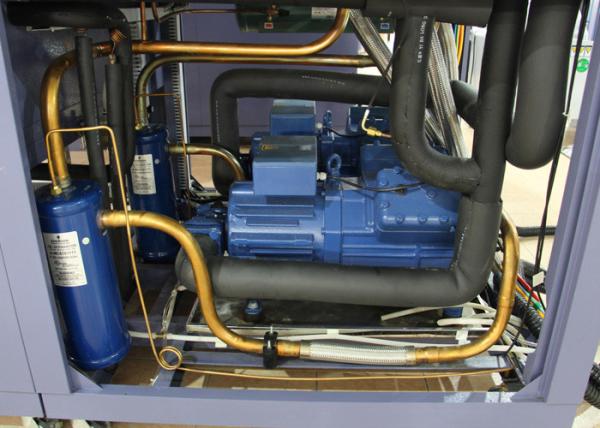

5. French Tecumseh is used for the compressor circulation system, capable of removing the lubricant between thecondensation pipes and capillaries. environment friendly coolant is (R23,R404A)

6.LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.

7. The control unit has the functions of multiples segment program editing, and with temperature ramp

8. Casters for ease of mobility, with strong positioning screws.

Precision Rapid Temperature Ramp. Rate Test Chamber 10C/min Energy Saving Fire Resistant Humidity Control for Automotive

Rapid Temperature Change Test Chamber / ESS Chamber Parameter Specifications

Model SM-KS-408-CB
Temp. range -70°C ～150°C
Temperature fluctuation ±0.5°C
Temperature uniformity within ±2.0°C
Heating rate -55°C ～+155°C, 8℃/min nonlinear
Cooling rate +155°C ～-55°C, 6℃/min nonlinear
Humidity Control 20%RH ~ 98%RH
Interior material Stainless Steel Plate (SUS 304)
Exterior material A3 plate with powder coating
Inner size (WxHxD)mm 800x850x800
Working size 408L
Ambient Temp. +5°C ～+35°C
Power Supply AC 220V±10％ 50Hz, single phase
Standard configuration

2 cable ports; 2 unit sample racks; safety protection devices;

Controller Sanwood SH5600 customized controller, programmable, with RS485 port
