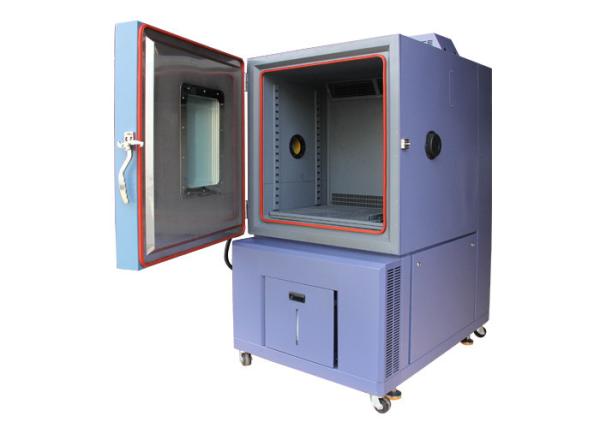

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry
User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry
User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry
User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry
Specifications
Brand Name :
SANWOOD
Model Number :
SMC-Sereis
Certification :
CE AND ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Temperatuer range: :
-70℃～180℃
Humidity range: :
10.0%RH～98.0%RH
Temperature fluctuation: :
±0.5℃
Cooling rate: :
1.0～3.0℃/min
Internal material :
SUS304 stainless steel(1.2mm)
External material :
Cold-rolled plate(1.2mm),powder coating
Description

Environmental Chamber Constant Temperature And Humidity Test Chamber

The main purpose:

Research and development, quality control engineering test specifications for the defense industry,

aerospace space, auto parts, electronic components, plastics industry, food industry,

pharmaceutical industry, semiconductor computer peripheral components and related products.

Product Overview:

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic IndustryUser Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

The main function:

Temperature and humidity controller can be set to program control, jog control, LCD touch screen

for the Chinese and English input liquid display, humidity and humidity control are self-tuning

function. With over-temperature protection. Overload protection. As well as manual temperature

to the time function, and alarm indicator light instructions.

Product Features:

Energy-saving Design: Double-compressor

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

Sample Surface temperature display.

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

Circuit System: UK Standard

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

Controller: Programmble controller with touch screen, Easy operation and user friendly.

User Friendly Climatic Chamber With Programmable Controller Remote Control to PC Applied For Electronic Industry

Standard Models with Technical specification:

Model SMC-80-CC SMC-150-CC SMC-225-CC SMC-408-CC SMC-800-CC SMC-1000-CC SMC-1500-CC
Temperature temperature range -70℃～180℃(A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃)
temperature fluctuation ±0.5℃
cooling rate 180.0℃～-70.0℃ Within about 100 minutes1.0～3.0℃/min
heating rate -70.0℃～180.0℃ Within about 60 minutes 3.0～5.0℃/min
temperature uniformity ±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
Humidity humidity range 10.0%RH～98.0%RH(60℃ above corresponds to 11%RH)
humidity fluctuation ±1.0% RH
humidity uniformity ±2.0％RH
Material Internal material SUS304 stainless steel(1.2mm)
External material cold-rolled plate(1.2mm),powder coating
heat insulation polyurethane foam(100mm)+glass wool(10mm)
fan Centrifugal fan(Impeller Fan)
refrigeration compressor hermetic compressor(Tecumseh)
cooling way air cooling or water cooling
refrigerant R404A,R23,R508
evaporator finned-tube exchanger
heater nickel chrome strip heater
humidifier Steam Humidifier
Size Interior size(mm)
W*H*D

400*500

*400

500*600

*500

500*750

*600

800*850

*600

1000*1000

*800

1000*1000

*1000

1200*1000

*1250
Outer size(mm)
W*H*D

700*1630

*1180

700*1670

*1275

700*1880

*1290

1000*1950

*1400

1200*2050

*1590

1200*2050

*1780

1400*2050

*2030
volume(L) 80L 150L 225L 408L 800L 1000L 1500L
weight(kg) 280 380 450 620 680 840 955
Working Temperature +5 ~ 35℃
Power supply 220V AC 50/60Hz 22A 220V AC 50/60Hz 31A 220V AC 50/60Hz 33A 380V AC 50/60Hz 17A 380V AC 50/60Hz 25A 380V AC 50/60Hz 27A 380V AC 50/60Hz 50A
Controller Standard: South Korea TEMI-1500
Optional: South Korea TEMI-2500,South Korea TEMI-2700

Product Catalog:

Temperature and Humidity Test Chamber .pdf
