Multifunctional Agree Chamber , Temperature Humidity And Vibration Test Chamber
Multifunctional Agree Chamber , Temperature Humidity And Vibration Test Chamber
Specifications
Brand Name :
SANWOOD
Model Number :
SM-A Series
Certification :
CE AND ISO
Place of Origin :
GUANGQONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Controller :
Standard: South Korea TEMI-1500
Operating ambient temperature :
+5 ~ 35℃
Heater :
Nickel chromium alloy heating wire
Compressor :
France Tecumseh, Germany Bock, Germany Bitzer
Heat insulating material :
100mm thickness polyurethane plate＋10mm thickness mineral wool
Condenser :
Air cooled,Water cooled
Description

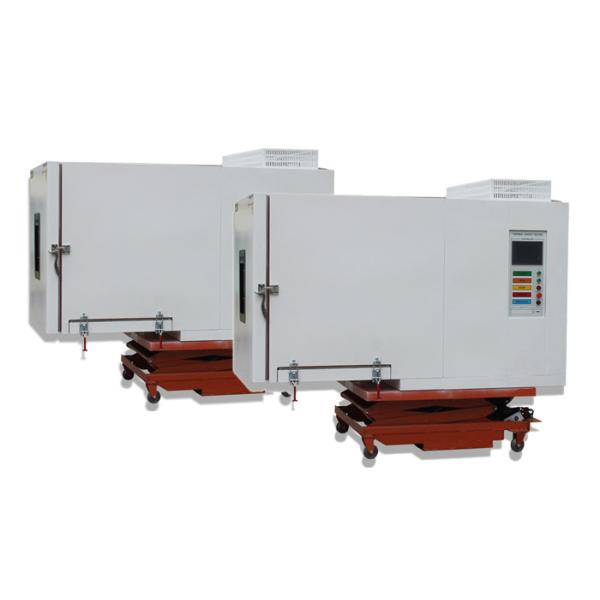

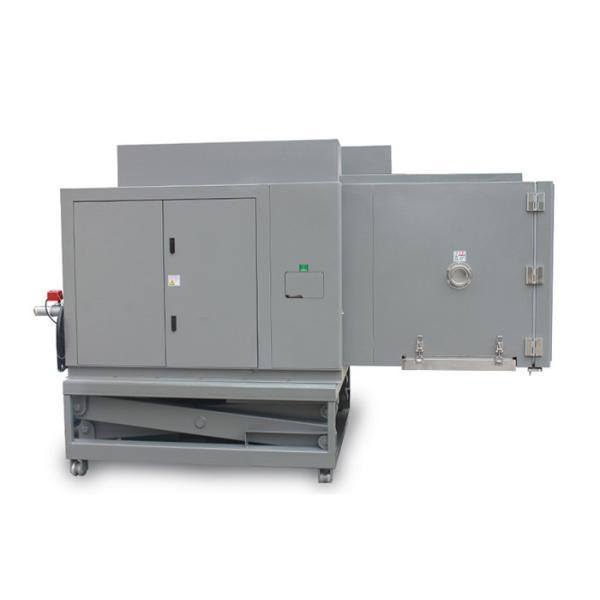

Temperature Humidity and Vibration Combined Test Chamber

Agree chamber is the multifunctional test of temperature, humidity and vibration,effectively simulate the effects in the actual environment, especially aerospace,car component and electronic parts. To find out the deficiencies of components or designquickly, and predict the product reliability.
Agree chamber can choose to equip with quick temperature change box or ordinary box, while the vibration stress can be changed from ordinary shaker to high-stress electromagnetic hammer. Doing proper configuration with customers'need to meet the testing requirement of 3-function, HALT, HASS.

Unit 4060-5 7060-5 4120-5 7120-5 4220-5 7220-5
4060-10 7060-10 4120-10 7120-10 4220-10 7220-10
4060-15 7060-15 4120-15 7120-15 4220-15 7220-15
(L) 600 1200 2200
℃ -40/+180 -70/+180 -40/+180 -70/+180 -40/+180 -70/+180
℃ ±0.1~±0.8
℃ ±0.5~±2.0
℃/min 5℃/min,10℃/min,15℃/min,20℃/min,25℃/min,30℃/min,35℃/min,40℃/min,
( SMV series)
℃ +10~+95
℃ ±0.1~±0.5
℃ ±0.5~±1.0
℃/min 10-95(98%r,h. When used in conjunction with the Blind)
℃/min ±1~±3
℃ +4to+94(C14 When used in conjunction with the Blind)/+4to+59( When used with a vertical perforated plate)/+4to+40( when used With horizontal hole bottom plate)
mm max .Φ710 max .Φ1000 max .Φ1280
mm max.700×700 max.1000×1000 max.1200×1200
(W*D*H)mm 800×800×950 1100×1100×950 1400×1400×1100
(W*D*H)mm 1225×2890×2150 1525×3590×2150 1825×3950×2300
400V±10%,50HZ,3/N/PE
KW 11/16/20 14/20/24 21/24/30 24/26/32 26/35/54 34/44/65
Water-cooled

Product Catalog:

AGREE Test Chamber.pdf
