Specifications
Brand Name :
SANWOOD
Model Number :
SMC-800-CA
Certification :
CE AND ISO
Place of Origin :
China
Packaging Details :
Wooden case
MOQ :
1
Humidity range :
10.0%RH～98.0%RH(60℃ above corresponds to 11%RH)
Humidity fluctuation :
±1.0% RH
Humidity uniformity :
±2.0％RH
Internal material :
SUS304 stainless steel(1.2mm)
External material :
cold-rolled plate(1.2mm),powder coating
Heat insulation :
polyurethane foam(100mm)+glass wool(10mm)
Description

Sanwood Customized Constant Environmental Test Chamber Moisture Resistance

For Electrical Appliances Reliability Test

Sanwood Constant Temperature and Humidity Test Chamber also known as Constant Temperature and Humidity Tester, Climatic chamber, Environmental Chamber,used to detect materials in a variety of environment performance equipment and testing a variety of materials heat, cold, dry, moisture resistance. Suitable for testing quality of electronic, electrical appliances, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products.

Sanwood temperature and humidity test chamber features:

• LED Touch Screen, Sanwood customised controller.

• PID Control of Temperature and Humidity

• Both Temperature and Humidity are Programmable (can have 100pattern, each pattern has 999 segment)

• With Humidity Sensor

• With RS485/232 output to computer

• Window Software

• Remote fault notification(opntional)

• With Viewing Window

• With thermostats (prevent overheat)

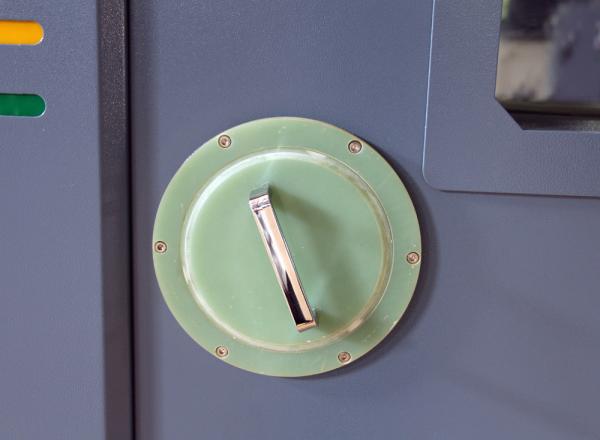

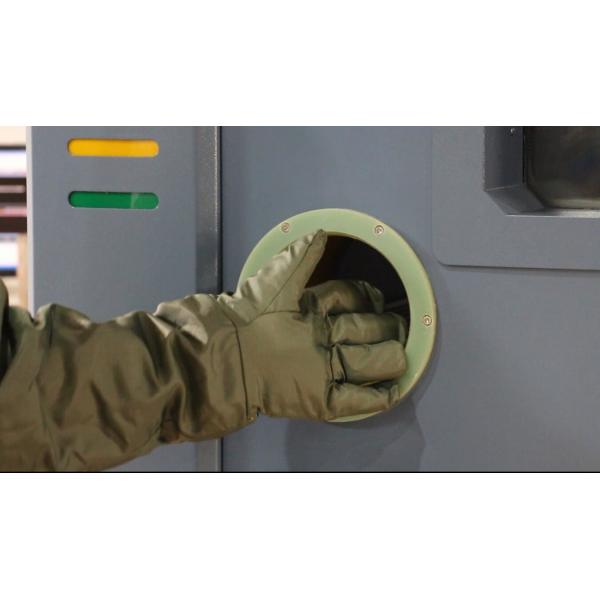

• Cable Ports(50mm diameter)

• With Data Storage fuction by USB Flash Memory

• Protection (phase protection, overheat, overcurrent etc)

• Water Tank with level detector

• Adjustable Shelf

• Anti-condensation technology of the workroom .(Optional)

• User friendly three color LED indicator lamp ,easy to read working condition

Standard Models with Technical specification:

Model

 SMC-80-CC SMC-150-CC SMC-225-CC SMC-408-CC SMC-800-CC SMC-1000-CC SMC-1500-CC
temperature range

-40℃～180℃

(A:0℃～180℃;B:-20℃～180℃；C:-40℃～180℃;D:-70℃～180℃)
temperature fluctuation ±0.5℃
cooling rate 180.0℃～-70.0℃ Within about 100 minutes1.0～3.0℃/min
heating rate -70.0℃～180.0℃ Within about 60 minutes 3.0～5.0℃/min
temperature uniformity ±1.5℃ (-40.0℃～100.0℃)
±2.0℃ (100.1℃～180.0℃or-40.0℃～-70.0℃)
humidity range 10.0%RH～98.0%RH(60℃ above corresponds to 11%RH)
humidity fluctuation ±1.0% RH
humidity uniformity ±2.0％RH
Internal material SUS304 stainless steel(1.2mm)
External material cold-rolled plate(1.2mm),powder coating
heat insulation polyurethane foam(100mm)+glass wool(10mm)
fan Centrifugal fan(Impeller Fan)
refrigeration compressor hermetic compressor(Tecumseh)
cooling way air cooling or water cooling
refrigerant R404A,R23,R508
evaporator finned-tube exchanger
heater nickel chrome strip heater
humidifier Steam Humidifier
Interior size(mm)
W*H*D

400*500

*400

500*600

*500

500*750

*600

800*850

*600

1000*1000

*800

1000*1000

*1000

1200*1000

*1250
Outer size(mm)
W*H*D

700*1630

*1180

700*1670

*1275

700*1880

*1290

1000*1950

*1400

1200*2050

*1590

1200*2050

*1780

1400*2050

*2030
volume(L) 80L 150L 225L 408L 800L 1000L 1500L
weight(kg) 280 380 450 620 680 840 955
Working Temperature +5 ~ 35℃
Power supply 220V AC 50/60Hz 22A 220V AC 50/60Hz 31A 220V AC 50/60Hz 33A 380V AC 50/60Hz 17A 380V AC 50/60Hz 25A 380V AC 50/60Hz 27A 380V AC 50/60Hz 50A
Controller Standard: Sanwood SH5600
Optional: South Korea TEMI-1500, TEMI-2500, TEMI-2700
