PLC Touch Screen Sand And Dust Chamber 2m/S Airflow Dust Ingress Protection
PLC Touch Screen Sand And Dust Chamber 2m/S Airflow Dust Ingress Protection
Specifications
Brand Name :
SANWOOD
Model Number :
SM-SC-500
Certification :
CE AND ISO
Place of Origin :
Guangdong, China
MOQ :
1 Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 sets per month
Delivery Time :
4 -5 weeks
Packaging Details :
Wooden case
Power :
Electronic
Warranty :
1 year
Usage :
Dust Ingress protection
Service :
Professional engineer team
Precision :
0.1℃
Description

DustProof Test Equipment IEC60529 Sand Dust Climatic Test Chamber

Dust test chamber, also known as dust test chamber, is based on IEC60529, GB2423.37-89 (test L: dust test method), GB 4208-93 protective bushing level (IP code), GB/T 4942.2-93 (protection of low-voltage electrical appliances Enclosure rating), GB 7000.1-1996, GB 7001-1986 (protective enclosure rating for lamps), DIN40050 and IP5K0. It is mainly used for IP5X and IP6X testing of LED, lamps, automobiles, and electrical enclosures.


Sanwood Sand Dust test chamber structure

1. Cavity material: mirror surface SUS304 stainless steel; cavity internal size: 800x800x800mm;
2. External material of cavity: surface atomized SUS304 stainless steel;
3. Tempered glass observation window.
4. Body insulation filling material: polystyrene foam molding;
5. The circuit system mainly adopts: Schneider relay;
6. Controller: Miki touch screen programming LCD controller
7. Heating system: U-shaped electric heating tube, stainless steel material, power: 2kw;
8. Vacuum device SAP: vacuum pump gas flow rate: 0~6 l/min, 0~2 kpa; vacuum gauge, air filter, centrifugal blower, etc.;

Vibration device: eccentric wheel motor;
9. The diameter of the test hole is 50mm, on the side of the cavity
10. Safety devices: leakage protection, overload fuse protection, fan overheating protection;


Sanwood Sand Dust Test chamber Specifications

Item Specification
Internal dimension 800W*800D*800Hmm
External dimension 1450W*1000D*1700H mm
Chamber material SUS304 Stainless steel
Specifications of square mesh sieve Mesh hole 75um, mesh metal wire diameter 50um
Talcum powder amount 2 ~4 kg/ m2
Airflow speed No more than 2m/s
Door Left open door with tempered glass door

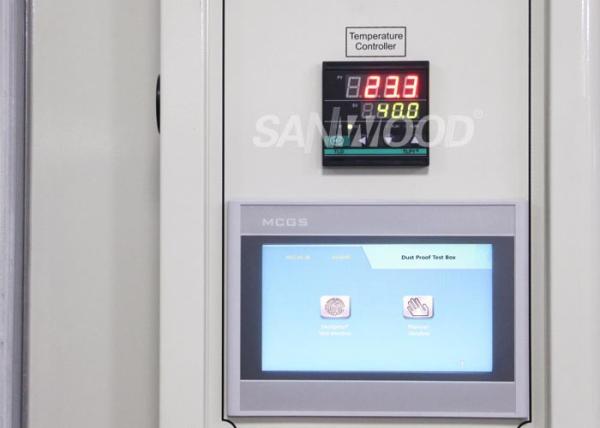

Controller

PLC Touch Screen controller, programmable to set as below cycle:

a. Blowing dust time (Stop/Blow) m/s

b. Cycle time: can be adjusted

c. Pre-set test time: 0s ~99m99s
Vacuum system Pressure gauge, air filter, Pressure regulating FRL, connecting pipe, Vacuum pump
Fan Centrifugal fan
Safety protection devices Meter over-temperature function, Phase shortage protection, Power short-circuit protection
Power supply

Standard: 220V AC, 50Hz single phase

Options for other countries in the world.
