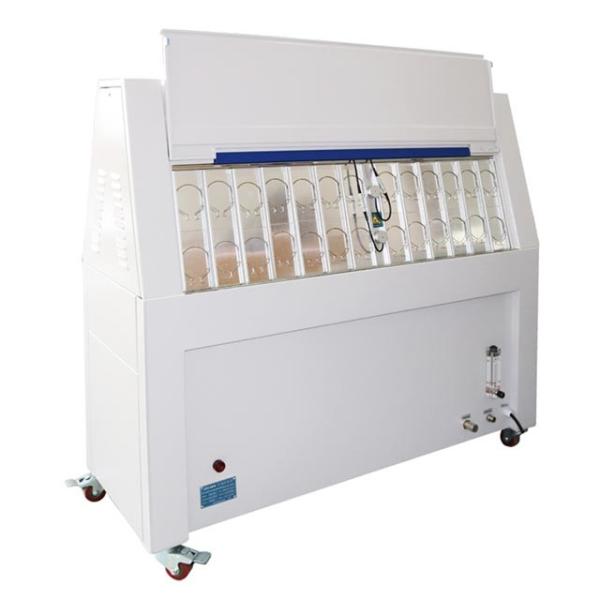

UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory
Specifications
Brand Name :
Sanwood
Model Number :
SM-UV-600-C
Certification :
CE AND ISO
Place of Origin :
Guangdong, China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 Set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Power :
Electronic
Usage :
Stability temperature humidity
Warranty :
12 months
Description

UV Lamp Accelerated Aging Test Chamber

UV Aging Tester for Laboratory Nonmetallic Material Aging Test

UV aging test chamber application

Sanwood UV Lamp Accelerated aging test chamber, also named as UV chamber, UV light aging test chamber, is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources. A variety of industrial products can make the reliability test, and this product can simulate the product in the sun, rain, humidity and dew conditions, including damage caused by bleaching, color, brightness down, powder, crack, blur, brittle, intensity decreased and oxidation.

UV aging test chamber function:

◆ Sunlight simulate: UVA-340 lamp, UVB-313 lamp

◆ Simulated humid condensation environment

◆ Water spray system

◆ Temperature control

◆ Irradiance controllable

UV aging test chamber accessories list:

Name Quantity
Fluorescent UV aging test chamber host 1 piece
Sample frame 24 pieces
Sample fixed circlip 48 pieces
Blackboard temperature sensor holder(PT100 included) 1 piece
Illumination frame 1 piece
UVB(or UVA)Lamp 8 pieces

UV aging test chamber standards:

ISO EN 4892-3

ISO 11507

GB/T 14522

GB/T 23983

GB/T 23987

GB/T 16422.3

ASTM G154

ASTM D4587

ASTM D5894 < Painted Metals>

ASTM D4329

SAE J 2020

UV Lamp Accelerated Aging Test Chamber UV Aging Tester For Laboratory

UV aging test chamber Technical parameters:

Model No. SM-UV600-C
Light source UV-A OR UV-B Lamps; 8 pieces
Lamp lifespan 5,000 hours
Irradiance range 0.3 ~ 1.55W/㎡ (Irradiance controllable)
Temperature range BPT: RT+10℃ ~ 80℃
Material of Interior chamber Stainless steel SUS304
Material of exterior chamber Powder coating on SUS304
Exposion Area 5,175cm2 /828 in2
Sample capacity

48 pieces standard panels (size 150x70mm)

Or 15 pieces 100x300mm panels
Adjustable range of water supply 0~4L/min
Water consumption 7L/day (for condensation); 4L/min (for spray)
Overall size of chamber 1,360x520x1,310mm (LxWxH)
Net Weight 165 KG
Power supply 220V AC 50Hz Single phase
Controller Sanwood Touch screen controller
Product tags

ultraviolet aging testing chamber

,

uv aging test chamber

,

uv light tester
