2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
2 Zone Basket Type Thermal Shock Test Chamber With LCD Controller Bock Compressor
Specifications
Brand Name :
SANWOOD
Model Number :
SM-3P
Certification :
CE AND ISO
Place of Origin :
GUANGDONG,CHINA
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60 set per month
Delivery Time :
4-5 weeks
Packaging Details :
Wooden case
Temperature impact range :
-70℃～150℃ （A:-45℃～150℃;B:-70℃～150℃)
Temperature fluctuation :
±1.0℃
Temperature conversion time :
3S
Internal material :
Stainless steel(SUS304)
External material :
Cold rolled steel sheet / powder spraying
Heat insulating material :
100mm thickness polyurethane plate＋10mm thickness mineral wool
Description


2-zone Basket Type Thermal Shock Chamber With LCD Controller Bock Compressor

Brief introduction of User friendly Programmable Thermal Shock Test Chamber:
The equipment is mainly designed according to the national standard and user-defined requirements. It can simulate different environmental conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different environmental conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electronics, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials
Application:
Thermal Shock Test Chamber is used to quickly find the hidden mechanical weaknesses in electronic components when test specimens are exposed to rapid thermal shock condition, and you will not only reduce the premature failures but also increase the reliability of your products when you choose our thermal shock test chamber.

Model SM-50-3P-A SM-80-3P-A SM-100-3P-A SM-150-3P-A SM-200-3P-A SM-300-3P-A SM-500-3P-A
Temperature Temperature impact
range		 -70℃～150℃ (A:-45℃～150℃;B:-70℃～150℃)
Temperature
fluctuation		 ±1.0℃
Low temperature
precooling time		 25.0℃～-70.0℃ Within 60 mins 1.0～3.0℃/min
High temperature
preheating time		 25.0℃～200.0℃ Within 60 mins 3.0～7.0℃/min
Temperature
conversion time		 3S
Temperature
recovery time		 Within 5 mins Within 10 mins
Material /
components		 Internal material Stainless steel(SUS304)
External material Cold rolled steel sheet / powder spraying
Heat insulating
material		 100mm thickness polyurethane plate＋10mm thickness mineral wool
Fan Centrifugal blower

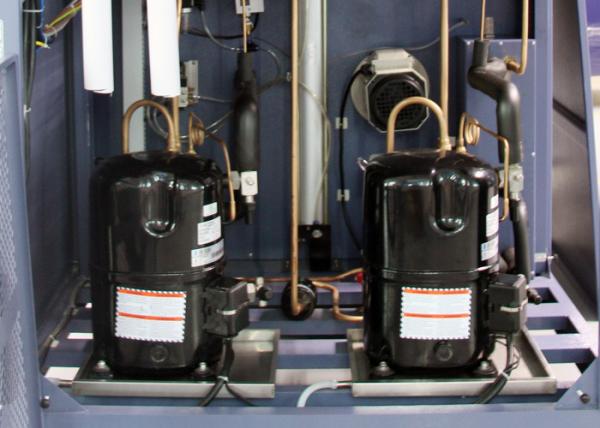

Compressor France Tecumseh, Germany Bock, Germany Bitzer
Condenser Air cooling, water cooling water cooling
Refrigerant R404A,R23,R508
Evaporator Fin - and - Tube Heat Exchanger
Heater Nickel chromium alloy heating wire
Size Interior size(mm)
W*H*D

350*400

*350

400*500

*400

500*500

*400

500*600

*500

650*460

*670

960*460

*670

960*650

*800
Outer size(mm)
W*H*D

1400*1750

*1750

1450*1850

*1800

1550*1850

*1800

1550*2050

*2050

1700*2000

*2200

2050*2000

*2250

2050*2150

*2450
Volume(L) 50L 80L 100L 150L 200L 300L 500L
Operating ambient temperature +5 ~ 35℃
Power supply 380V AC 50/60Hz 380V AC 50/60Hz 380V AC
50/60Hz		 380V AC
50/60Hz		 380V AC
50/60Hz		 380V AC
50/60Hz		 380V AC
50/60Hz
Controller SANWOOD SH5600:Equipped with RS232 port；(7.0 inch controller) USB data export )

Product Catalog:

Two Zone Thermal ShockTest Chamber.pdf
